  •   Hikvision NVR DS-7716NXI-I4/16P/S

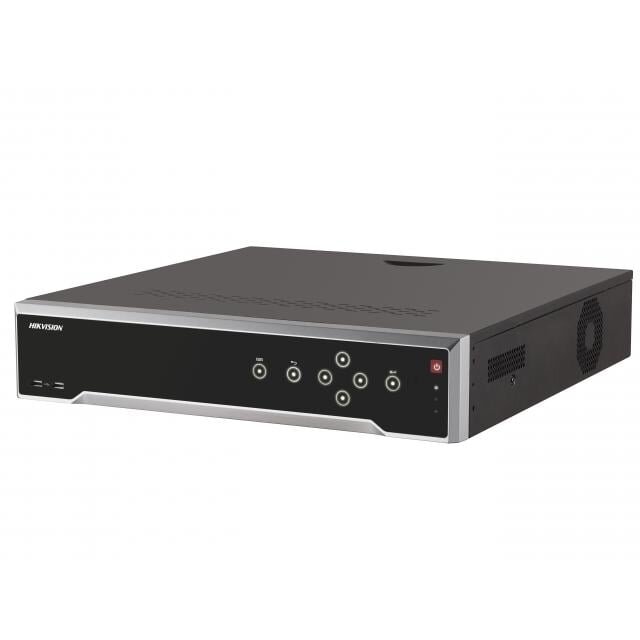

    Hikvision NVR DS-7716NXI-I4/16P/S

    Inquire about this item
    Price 1106.99 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • System Parameter
    • Video input channel16
    • Incoming bandwidth160 Mbps
    • Outgoing bandwidth256 Mbps
    • Video resolution12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Smart Analysis
    • Face picture libraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
    • List library capacity1w
    • List library16
    • Face picture comparison4-ch face picture comparison alarm
    • Face capture1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
    • Video Parameter
    • Video output2-ch HDMI, 1-ch VGA
    • HDMI outputHDMI1 output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA simultaneous output HDMI2 output:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI2/VGA independent output
    • VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,
    • CVBS output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
    • Live view window division1/4/6/8/9/16/25/32/36
    • Aux port window division1/4/6/8/9/16/25/32/36
    • Video decoding formatH.265;H.265+;H.264;H.264+;MPEG4
    • Decoding capability16-ch @ 1080p (30 fps)
    • Synchronous playback16-ch
    • Audio Parameter
    • Audio decoding formatG.711ulaw;G.711alaw;G.722;G.726;MP2L2
    • Audio output1-ch, RCA (Linear, 1 KΩ)
    • Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • HDD Management
    • HDD No.4 SATA interfaces
    • Extended storage1 eSATA interface
    • Recording Management
    • Playback modeNormal/Smart, Event, Tag, Eternal File
    • External Port
    • Network interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
    • Serial portRS-485 (half-duplex), RS-232, Keyboard
    • USB interfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
    • Alarm input/output16/4
    • PoE
    • PoE interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    • PoE standardIEEE 802.3 af/at
    • PoE power≤ 200W
    • General Standard
    • Power≤ 360 W
    • Consumption (without HDD)≤ 30 W
    • Working temperature-10℃～＋55℃
    • Working humidity10％～90％
    • Chassis1.5U
    • Dimension445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
    • Weight (without HDD)≤ 7 kg (15.4 lb)
