  •   Hikvision monitor SP 43", DS-D6043UN-DP

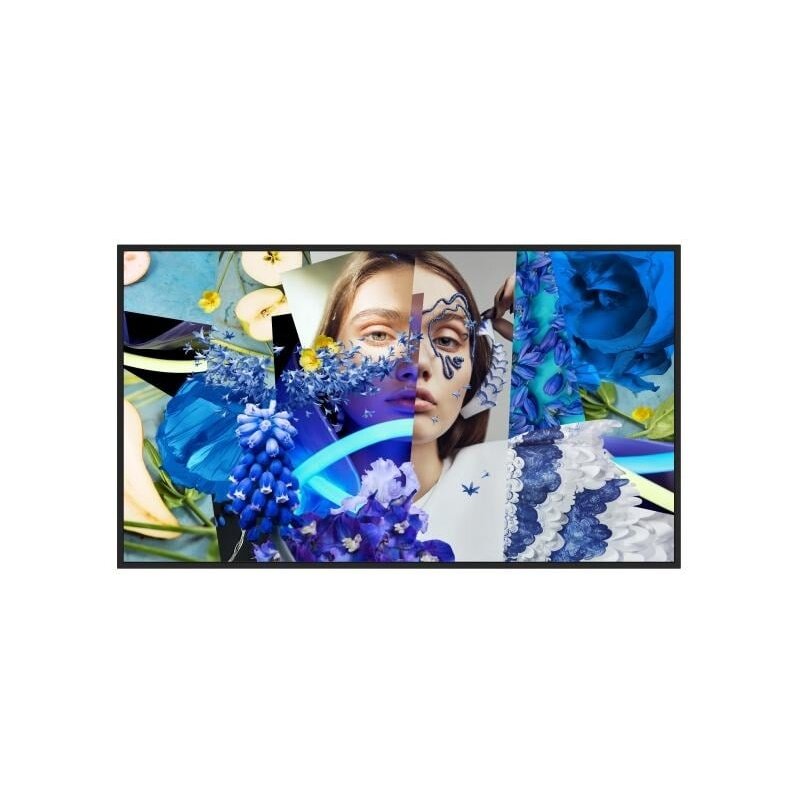

    Hikvision monitor SP 43", DS-D6043UN-DP

    Inquire about this item
    Price 1290.29 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision
    • Built-in System
    • Built-in Storage32 GB EMMC
    • Memory4 GB
    • Operation SystemAndroid 13
    • ProcessorCortex-A55, 4-core, main frequency 1.92GHz
    • Display
    • Active Display Area941.184 (H) mm × 529.416 (V) mm
    • BacklightE-LED
    • Brightness500 cd/m²
    • Color Depth10 bit (8 bit + FRC)
    • Color Gamut85% NTSC
    • Contrast Ratio4000:1
    • Haze25%
    • Pixel Pitch0.2451 (H) mm × 0.2451 (V) mm
    • Refresh Rate60 Hz
    • Reliability7 × 24h
    • Resolution3840 × 2160
    • Response Time8 ms
    • Screen Size43 inch
    • Viewing Angle178°(H)/178°(V)
    • General
    • Gross Weight12.5 kg
    • Material TypeDAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG
    • Mounting TypeWall mounting (horizontally or vertically)
    • Net Weight9.1 kg
    • Package Dimensions (W × H × D)1075 mm × 652 mm × 144 mm
    • Packing ListDigital signage × 1, wall-mounted backboard (including package of mounting bolts )× 1, power cord for europe × 1, RS232 cable x1 , remote control × 1, user manual x 1 , quick start guide × 1, Regulatory Compliance and Safety Information x1 ,logo stickers × 1, energy efficiency label × 1
    • Product Dimensions (W × H × D)967.4mm × 555.9mm × 40 mm (without wall-mounted backboard) 967.4mm × 555.9mm × 70 mm (with wall-mounted backboard)
    • Interface
    • Data Transmission InterfaceUSB 2.0 × 1, USB 3.0 × 1, BT 5.0 × 1
    • Network InterfaceRJ45 × 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) × 1, RS232 in× 1, RS232 out× 1
    • Video & Audio InputHDMI × 3, DP × 1
    • Video & Audio OutputLINE OUT × 1, speaker (6Ω 10 W) × 2
    • Power
    • Input Voltage100 to 240 VAC, 50/60 Hz
    • Power Consumption 60W(typ), 120W(max)
    • Standby Consumption≤ 0.5 W
    • Product Model
    • Product ModelDS-D6043UN-DP
    • Working Environment
    • Storage Humidity10% to 90% RH (Condensation)
    • Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
    • Working Humidity10% to 80% RH (Condensation)
    • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
