Products catalog

Home/Video, audio, intrusion and access control systems/IP video surveillance/IP cameras/Dome cameras
  •   Hikvision mobile dome DS-2XM6756G1-IM/ND F2.0

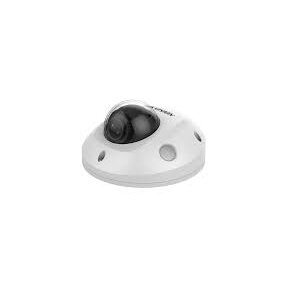

    Hikvision mobile dome DS-2XM6756G1-IM/ND F2.0

    Inquire about this item
    Price 538.90 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Shutter Speed1/3 s to 1/100,000 s
    • P/N

      PAL: 25fps

      NTSC: 30fps （30fps is not supported under 2560 × 1920 main code stream）

    • Day & NightIR Cut Filter
    • Angle AdjustmentPan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°
    • White Balance

      Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;

      Support manual/automatic white balance adjustment.

    • Lens
    • Focal Length2mm/2.8mm/4mm
    • Focal Length & FOV

      2 mm, horizontal FOV 122°, vertical FOV 93°, diagonal FOV 152°

      2.8 mm, horizontal FOV 95°, vertical FOV 69°, diagonal FOV 126°

      4 mm, horizontal FOV 78°, vertical FOV 55°, diagonal FOV 105°

    • Lens MountM12
    • FocusManual focus
    • Max. Aperture

      2mm:F2.25

      2.8 /4mm: F1.6

    • Illuminator
    • Supplement Light TypeInfrared fill light lamp
    • Smart Supplement LightSupport
    • IR Wavelength850nm
    • IR RangeUp to 10m
    • Video
    • Max. Resolution2560 × 1920
    • Main Stream

      Third Stream ON:

      50Hz: 25 fps (2560 × 1920, 1920 × 1080, 1280 x 960, 1280 × 720)

      60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

      Third Stream OFF:

      50Hz: 25 fps (2560 × 1920, 1920 × 1080, 1280 × 960, 1280 × 720)

      60Hz: 30 fps (2560 × 1920, 1920 × 1080, 1280 × 960, 1280 × 720)

    • Sub-Stream

      Third Stream ON:

      50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

      60Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

      Third Stream OFF:

      50Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

      60Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)

    • Third Stream

      Third Stream ON:

      50Hz: 25 fps (1280 × 720)

      60Hz: 30 fps (1280 × 720)

      Third Stream OFF:

      50Hz: 25 fps (0)

      60Hz: 30 fps (0)

    • Video Compression

      Main stream: H.264, H.265, H.264+, H.265+

      Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+

      Third stream: H.264, H.265 ,H.264+, H.265+

    • Video Bit Rate

      Main Stream: 512 Kbps to 16384Kbps

      Sub-Stream: 256 Kbps to 4096Kbps

      Third Stream: 512 Kbps to 6144Kbps

    • H.264 TypeMain Profile/High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlConstant Bit Rate, Variable Bit Rate
    • Stream TypeMain stream, sub stream, third stream
    • Scalable Video Coding (SVC)

      H.264 and H.265 encoding

    • Region Of Interest (ROI)Support 2 fixed region for (main/sub) stream
    • Audio
    • Audio Compression G711U, G711A, G726, AAC, G722, PCM, AAC
    • Audio Bit Rate64 Kbps
    • Audio Sampling Rate16 kHz
    • Environment Noise FilteringYes
    • Network
    • ProtocolsTCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
    • Simultaneous Live ViewUp to 6 channels
    • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
    • User ManagementUp to 16users, 3 levels: Administrator, Operator and User
    • Web BrowserIE8+, Chrome45+, Edge41+, Firefox45+
    • Image
    • Wide Dynamic Range (WDR)120 dB
    • Image SettingsSupport rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
    • Day/Night SwitchDay/Night/Auto/Schedule
    • SNR> 50 dB
    • Image EnhancementBLC, HLC, 3D DNR
    • Privacy MaskEnables configuration, and supports drawing of up to 4 areas
    • Picture OverlaySupport image overlay, uploading images, enabling, coordinates, etc.
    • Target CroppingSupport (only the third stream)
    • Backlight Compensation(BLC)Support up, down, left, right, center and custom backlight compensation adjustment
    • Interface
    • Video OutputNot supported
    • Ethernet Interface

      -ID: 1 RJ45 10M/100M self-adaptive Ethernet port

      -IM/ND, IDM: 1 four-core M12 aviation plug

    • SD Card StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
    • Audio1 built-in mic, mono sound
    • Reset KeySupport
    • Interface TypeInterpolate
    • Event
    • Linkage MethodUpload to FTP, notify monitoring center, send email, trigger recording
    • Basic Event Motion detection, video tampering alarm
    • Smart Event

      Line crossing detection,

      Intrusion detection,

      Region entrance detection,

      Region exiting detection,

      Unattended baggage detection,

      Object removal detection,

      Object detection: detects faces and upload images

      Scene change detection, defocus detection

    • General
    • Product DimensionCamera: Φ 110 mm × 57.4 mm (4.3" × 2.26")
    • Power

      PoE:0.30 A to 0.20 A, max: 7.5W

      DC: 0.83A to 0.21A,max:7.5W

    • Package Dimension252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7")
    • Product WeightApprox. 452 g (1 lb.)
    • Startup and Operating Conditions-30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing)
    • LanguageEnglish, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
    • General FunctionAnti-flicker, heartbeat, mirror
    • Software ResetSupport
    • Power Supply

      -ID: 9-36V& PoE (802.3af, 36 V to 57 V)

      -IDM: 9-36V& PoE (802.3af, 36 V to 57 V)

      -IM/ND: PoE (802.3af, 36 V to 57 V)

    • Power Interface

      -ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply

      -IM/ND: 4-core M12 aviation plug, PoE power supply

    • Cable Length50 cm
    • Approval
    • ClassClass B
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
    • EnvironmentCE-RoHS (2011/65/EU);
    • Electrical Safety ProtectionIK10(IEC 62262:2002)
    • Automotive and RailwayEN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
