  •   Hikvision interactive display 86" DS-D5C86RB/A(EDLA)

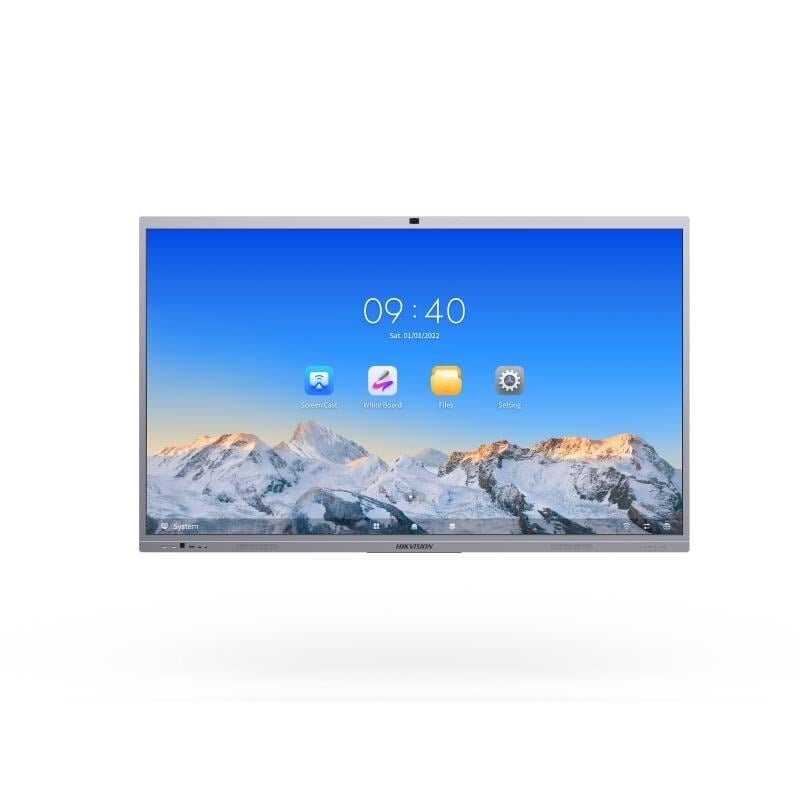

    Hikvision interactive display 86" DS-D5C86RB/A(EDLA)

    Inquire about this item
    Price 3830.41 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Product Model
    • Product ModelDS-D5C86RB/A
    • Display
    • Screen Size86 inch
    • BacklightDLED
    • Pixel Pitch0.1645（H）× 0.4935（V）mm
    • Resolution3840 × 2160 @60 Hz
    • Brightness400 cd/m² （Typ.）
    • Color Depth10 bit
    • Display Color1.07 G
    • Response Time5 ms
    • Panel TypeVA
    • Contrast Ratio

      5000:1 (Static)

      30,000:1 (Dynamic)

    • Color Gamut72% NTSC (CIE1931) (Typ.)
    • Refresh Rate60 Hz
    • Viewing Angle178° (H)/178° (V)
    • Aspect Ratio16:9
    • Surface Hardness

      9H (Pencil)

      7 (Mohs)

    • Surface GlassAnti-Glare Glass
    • Surface Haze25% Haze
    • Glass Bonding MethodZero Lamination
    • Display Area1895.04mm ╳ 1065.96mm
    • Working Duration7 × 16 H
    • Transmittance88% ± 3
    • Lifespan50,000 hours
    • Touch
    • TypeInfrared Touch Screen
    • Touch PointUp to 50-point multi-touch
    • Touch Response Time≤ 2 ms
    • Minimum Touch Object≥ 1.5 mm (≥ 90% touching area)
    • Touch Precision± 0.5 mm (≥ 90% touching area)
    • Touch Resolution32767 × 32767
    • Built-in System
    • Operation SystemAndroid 13.0
    • Memory8 GB
    • Built-in Storage128 GB
    • ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
    • GPUMali-G610 MC4
    • HDCP Version2.3
    • Internal Function
    • LoudspeakerBuilt-in 2 × 20 W+25W loudspeaker;
    • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
    • NFCSupport screen mirroring by Android phones
    • Light SensorYes
    • Interface
    • Video & Audio InputHDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
    • Video & audio outputHDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
    • Control interfaceTOUCH-USB 3.0 × 3, RS232 × 1
    • Network Interface

      LAN (1000 Mbps) × 2

      WIFI AP & Station, 2.4G/5G

      WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP

    • Data Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
    • Power
    • Power Supply100 to 240 VAC, 50/60 Hz
    • Standby Consumption≤ 0.5 W
    • Average Consumption< 205W
    • General
    • VESA800 mm × 600 mm （4 × M8-25 mm）
    • Product dimensions1960.5 mm × 1158.2 mm× 82.5 mm
    • AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
    • Package Dimensions (W × H × D)2197 mm × 284 mm × 1376 mm
    • Net Weight64.13 kg
    • Gross Weight81.6 kg
    • Working Environment
    • Working Temperature0 °C to 40 °C (32 °F to 104°F)
    • Working Humidity10%~90% RH
