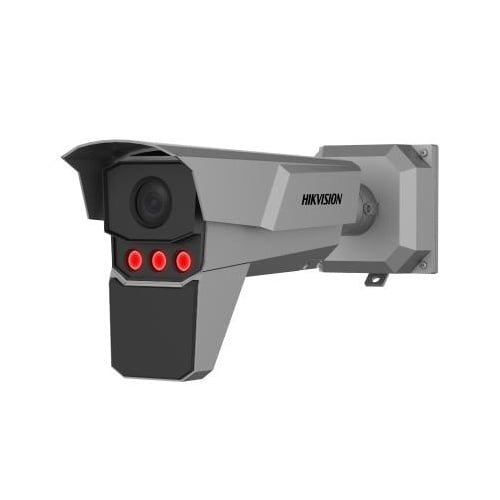

  •   Hikvision iDS-TCM403-GIR/POE/0832 F8-32mm (ANPR, 4MP, IR 50m, PoE+, IP67, IK10)

    Hikvision iDS-TCM403-GIR/POE/0832 F8-32mm (ANPR, 4MP, IR 50m, PoE+, IP67, IK10)

    Inquire about this item
    Price 3030.43 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Hikvision
    • Approval
    • Anti-Corrosion Protection-Y: NEMA 4X (NEMA 250-2018)
    • EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
    • EnvironmentCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
    • ProtectionIK10: IEC 62262:2002,IP67: IEC 60529-2013
    • RF CE-RED: EN 301489-1 V2.2.3,EN 301489-51 V2.1.1,EN 301091-2 V2.1.1,EN IEC 62311:2020
    • SafetyCB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
    • Audio
    • Audio Bit Rate8Kbps (G.711) /16Kbps (G.722.1)
    • Audio Compression G.711/G.722.1
    • Camera
    • Day & NightIR cut filter
    • Image Sensor1/1.8″ progressive scan CMOS
    • Max. Resolution2688 × 1520
    • Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
    • Shutter Time1/50 s to 1/40000 s
    • Event
    • Basic EventHDD error,Network disconnected,IP address conflict
    • General
    • Dimension429.5 mm × 120 mm × 184.2 mm (16.9" × 4.72" × 7.3") (L × W × H)
    • General FunctionOne-key reset, three streams, heartbeat, password protection, watermark
    • Language8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish
    • MaterialAluminum alloy
    • Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
    • Operating SystemLinux
    • Package Dimension595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H)
    • PowerDC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block, PoE: 802.3at, Type 2, Class 4, max. 15 W
    • Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
    • Weight Approx. 3.405 kg (7.51 lb.)
    • With Package WeightApprox. 4.635 kg (10.22 lb.)
    • Illuminator
    • Built-in Supplement Light RangeUp to 50 m
    • Built-in Supplement Light TypeIR light
    • IR Wavelength850 nm
    • Supplement Light Number3
    • Image
    • Day/Night SwitchAuto/Scheduled/Manual
    • Image EnhancementBLC, 3D DNR
    • Image SettingsSaturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser.
    • Wide Dynamic Range (WDR)140 dB
    • Interface
    • Alarm 1 input interface, 1 output interface, 2 relays
    • AudioSupported
    • Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
    • On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
    • RS-4851 RS-485 interface
    • Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)
    • Lens
    • Aperture 2.8-12 mm: F1.38, 8-32 mm: F1.7
    • Focal Length & FOV2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3° 8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°
    • Focus Auto
    • Iris TypeDC-IRIS
    • Network
    • APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
    • Network StorageMicro SD/TF card (512 GB), local storage and CVR, NVR, ANR
    • ProtocolsTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
    • SecurityPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
    • Simultaneous Live ViewUp to 6 channels
    • User/HostUp to 32 users 3 user levels: administrator, operator, and user
    • Web BrowserChrome V61+, IE9 to IE11, Firefox V41+, Edge
    • Radar
    • Coverage LanesUp to 3 lane(s)
    • Detection Distance Up to 100 m
    • Horizontal Detection Angle± 22°
    • Modulation WaveformFMCW
    • Speed Measuring Range up to 120Km/h
    • Vertical Detection Angle± 10°
    • Working Frequency77 GHz
    • Road Traffic and Vehicle Detection
    • Accuracy (Under recommended installation and lighting conditions)Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2%
    • Capture Speed Range5 to 120 km/h
    • CoverageUp to 3 lane(s)
    • LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria, Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka, America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala, Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina, Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan
    • Motorcycle LPRSupported
    • No License Plate DetectionSupported
    • Smart FunctionHelmet Detection, Manned Non-Motor Traffic flow detection：average speed, traffic flow, queuing length, and traffic status Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving
    • Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only.
    • Vehicle Manufacturer212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Trucks, CAMC, DAIHATSU, DMC, DS, Dacia, Dongnan, Dodge, Dongwo, Denza, Dongfeng, Daewoo, Dima, Denway, DORCEN, Eicher, Emgrand, Equss, EXEED, Ford, FORO, Fornasari, Ferrari, Fuqi, Fiat, Fisker, FQT Motor, Foton, FAW, FORLAND, FUSO, Force Motors, Fxauto, Faralli Mazzanti, GAC, Great Wall, GMC, Geely, Geometry, Hyundai, HENNESSEY, HINO, Honda, Haima, Haval, Hongqi, Isuzu, Infiniti, Iveco, IAT, IM, JAC, JBC, JEEP, Jaguar, JMC, JETOUR, JETTA, Joylong ,Koenigsegg, KIA , Kia-Borrego, King Long, Kama, KTM, LEVC, Lexus, Land Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, Polestar, POCCO, Qoros, RAM, Rolls-Royce, Renault, Roewe, Rohens, Ranz, Ruilan, Radar, Renault Samsung, SAAB, SCANIA , SCION, SMART, SML ISUZU, Suzuki, SAIC Datong, Subaru, Skoda, Startek, Soyat, Seat , SWM, Sany, SsangYong, Sojen, Silver, SATE, SOL, Skyworth, SGMW, SITECH DEV, TATA, Tankar, Tesla, Trumpchi, Techart, Toyota, UD, UAES, Volkswagen, VINFAST, Venucia, Volvo, VOYAH, VeiculoLongo, Weltmeister , XCMG, Xinyuan, XPENG, Yutong, YAMAHA, Zhonghua, Zotye, Zhinuo, ZEEKR, Zenvo
    • Vehicle TypeCar,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
    • Video
    • H.264 TypeBaseline profile/Main profile/High profile
    • H.265 TypeMain profile
    • Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
    • Sub-Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288)
    • Third Stream 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288)
    • Video Bit Rate32 Kbps to 16 Mbps
    • Video Compression H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
