  •   Hikvision DS-KV8413-WME1(C)

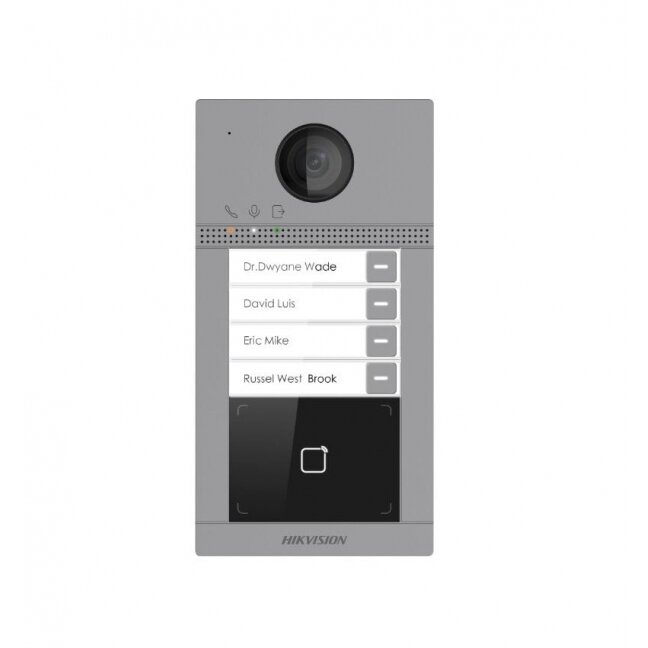

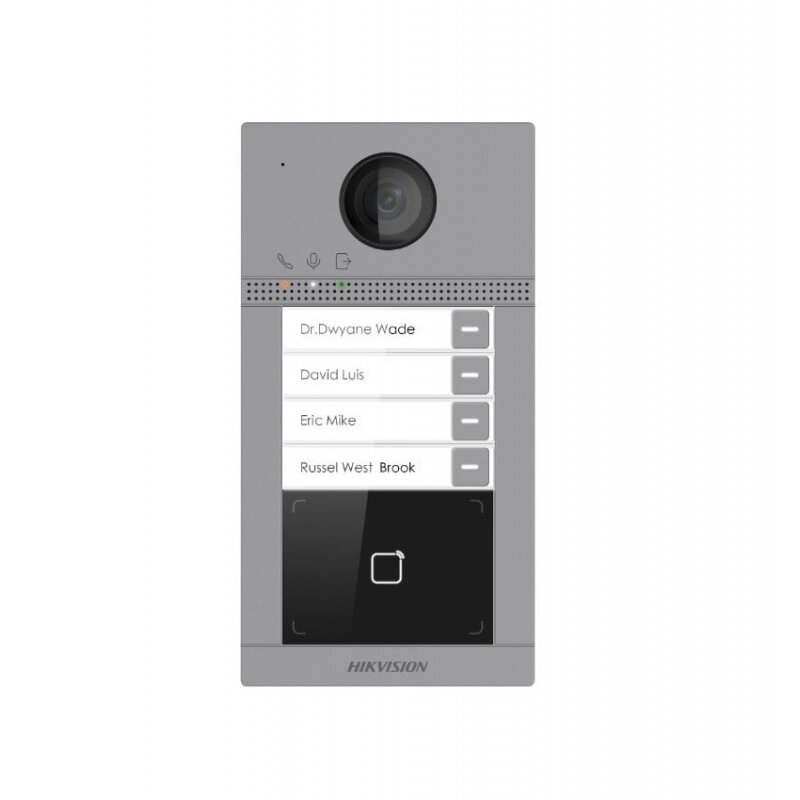

    Hikvision DS-KV8413-WME1(C)

    Inquire about this item
    Price 381.25 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision

    • System parameters
    • Operation systemLinux
    • ROM32 MB
    • RAM256 MB
    • ProcessorEmbeded high performance processor
    • Display parameters
    • Screen size/
    • Operation method/
    • Type/
    • Resolution/
    • Video parameters
    • Lens1
    • Resolution

      Main stream:1920p × 1080 and 1280 × 720p

      Sub stream: 640 × 480p

    • FOVHorizontal: 124° Vertical: 75°
    • Wide dynamic range (WDR)Digital WDR/76.9 dB
    • Supplement lightIR light, up to 3 m
    • Video compression standardH.264
    • Audio parameters
    • Audio input1 built-in omnidirectional microphone
    • Audio compression standardG.711 U, G.711 A
    • Audio output1 built-in loudspeaker
    • Audio compression bitrate64 Kbps
    • Audio qualityNoise suppression and echo cancellation
    • Volume adjustmentAdjustable
    • Capacity
    • User capacity2000
    • Card capacity10000
    • Linked indoor station capacity4 (main indoor station)
    • Sub door station capacity16
    • Network parameters
    • Network protocolTCP/IP, RTSP
    • Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
    • Bluetooth/
    • 3G/4G/
    • Received frequency2.4 to 2.4835 GHz
    • Transmitted frequency2.4 to 2.4835 GHz
    • Bandwidth20/40 MHz
    • Frequency power

      802.11b:15 dBm +/- 1.5 dBm

      802.11g:15 dBm +/- 1.5 dBm

      802.11n(ht20):14 dBm +/- 1.5 dBm

      802.11n(ht40):12 dBm +/- 1.5 dBm

    • Authentication
    • Card reading frequency13.56 MHz
    • Device interfaces
    • Alarm input4
    • Network interface1 RJ-45, 10/100 Mbps self-adaptive
    • TAMPER1
    • Exit button2
    • RS-4851
    • USB/
    • Wiegand/
    • TF cardReserved
    • Alarm output/
    • Lock control2 relays, Max. 30 VDC 2 A
    • Door contact input2
    • General
    • Button4 physical buttons
    • InstallationSurface mounting
    • Indicator3
    • Weight

      Net weight: 0.400 kg

      Gross weight: 0.658 kg

    • Protective levelIP65, IK08
    • Working temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
    • Working humidity10% to 95% (no-condensing)
    • Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
    • Battery/
    • Application environmentOutdoor
    • Power consumption＜ 10 W
    • LanguageEnglish, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
