  •   Hikvision DS-KV7023EY-IME2

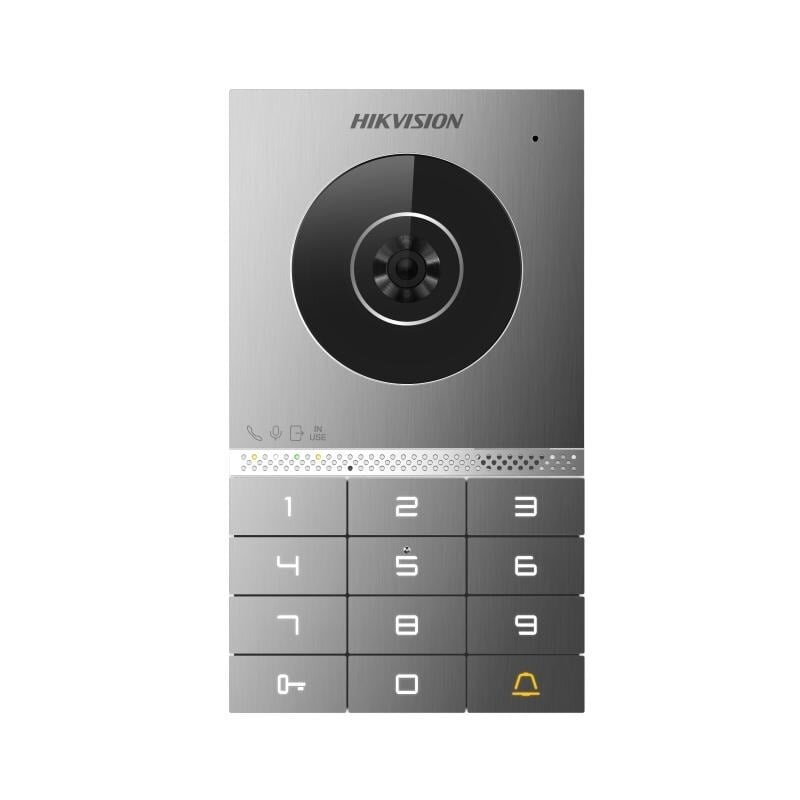

    Hikvision DS-KV7023EY-IME2

    Inquire about this item
    Price 322.68 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision
    • Audio parameters
    • Audio compression bitrate64 Kbps
    • Audio compression standardG.711 U, G.726
    • Audio inputBuilt-in omnidirectional microphone
    • Audio outputBuilt-in loudspeaker (More than 80 dB within 30 cm)
    • Audio qualityNoise suppression and echo cancellation
    • Volume adjustmentAdjustable
    • Capacity
    • Linked indoor station capacityMax. 1 flat, up to 4 indoor stations
    • Sub door station capacity16
    • User capacity2000
    • Device interfaces
    • Alarm input2（supports Exit button or Door contact input）
    • Alarm outputNA
    • Door contact input1
    • Exit button1
    • Lock control2 (1 relay, max to 30 VDC, 2 A；1 DC pulse，20V 4A impulsive，300 mA holding current，30 ohm max )
    • Network interfaceNA
    • Power interface48V，Powered by distributor DS-KAD7060EY or 12VDC
    • RS-4851
    • TAMPER1
    • TF cardNA
    • Two-wire IP interface1
    • WiegandNA
    • Display parameters
    • Operation methodNA
    • ResolutionNA
    • Screen sizeNA
    • TypeNA
    • General
    • Application environmentOutdoor
    • Battery/
    • Button12
    • Dimensions165mm × 95 mm × 25 mm(6.5" × 3.7" × 0.98")
    • Indicator4 LED lights(Opening door、Calling、Intercom、In use）
    • InstallationSurface mounting & flush mounting
    • LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
    • Power consumption≤ 6 W
    • Protective levelIP65 IK08
    • WeightNA
    • Working humidity10% to 90%
    • Working temperature-40° C to 60° C (-22° F to 140° F)
    • Network parameters
    • 3G/4GNA
    • BluetoothNA
    • Wi-FiOnly AP mode for configuration
    • Wired network10/100 Mbps self-adaptive through 2-wire interface
    • System parameters
    • CPUEmbedded Processor
    • Operating systemEmbedded Linux operation system
    • RAM256 MB
    • ROM4 GB
    • Video parameters
    • FOVHorizontal: 135°, Vertical: 85°
    • Lens1
    • Resolution2 MP
    • Supplement lightLow illumination, IR supplement lights
    • Video standardH.264
    • WDRSupport
