  •   Hikvision DS-KH8520-WTE1

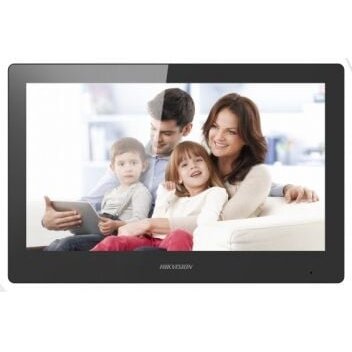

    Hikvision DS-KH8520-WTE1

    Inquire about this item
    Price 625.55 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Hikvision

  • System Parameters
    Operation System:Embedded Linux Operation System
    Flash:32MB
    Memory:128MB
    Display Parameters
    Display Screen:10.1-inch colorful TFT LCD
    Display Resolution:1024 × 600
    Operation Method:Capacitive touch screen
    Audio Parameters
    Audio Input:Built-in Omnidirectional Microphone
    Audio Output:Built-in Loudspeaker
    Audio Compression Standard:G.711 U
    Audio Compression Rate:64 Kbps
    Audio Quality:Noise Suppression and Echo Cancellation
    Network Parameters
    Wired network:10/100 Mbps self-adaptive network
    Wireless network:Wi-Fi 802.11b/g/n
    Network Protocol:TCP/IP, SIP, RTSP
    Network interface:1 RJ-45 10/100 Mbps self-adaptive
    Device Interfaces
    Relay Output:2
    Alarm Input:8-ch alarm inputs
    RS-485:1
    TF Card (micro SD card):Max to 32 G, SD 2.0 or lower version
    General
    Power Supply:IEEE802.3af standard PoE, 12 VDC/1A
    Power Consumption:≤6W
    Working Humidity:10% to 90%
    Working Temperature:-10° C to + 55° C (14° F to 131° F)
    Dimensions(L × W × H):254 mm × 166 mm × 14.7 mm (10.0" ×6.5" × 0.58")
