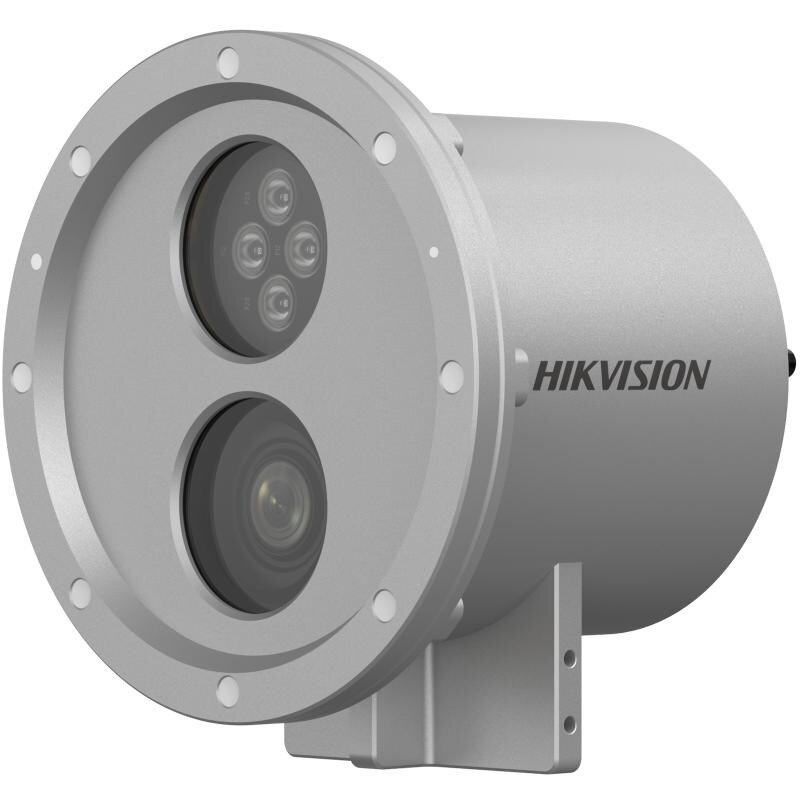

  •   Hikvision DS-2XC6244G0-L F2.8-12mm (IP68, IR 15m, underwater camera)

    Hikvision DS-2XC6244G0-L F2.8-12mm (IP68, IR 15m, underwater camera)

    Inquire about this item
    Price 3245.03 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor1/1.8" Progressive Scan CMOS
    • Max. Resolution2560 × 1440
    • Min. IlluminationColor: 0.001 Lux @ (F1.4, AGC ON), B/W: 0 Lux with Light
    • Shutter Time1 s to 1/100,000 s
    • Lens
    • FocusAuto,Semi-auto,Manual
    • Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
    • Focal Length & FOV2.8 to 12 mm, horizontal FOV 70.1° to 29.7°, vertical FOV 38.7° to 16.8°, diagonal FOV 81.2° to 34.0°
    • ApertureF1.4
    • DORI
    • DORI

      Wide: D: 61.5 m, O: 24.4 m, R: 12.3 m, I: 6.2 m

      Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I: 15.2 m

    • Illuminator
    • Supplement Light TypeWhite Light
    • Supplement Light Range

      Turbidity (NTU) : 0 to 5, up to 1 m,

      Turbidity (NTU) : 5 to 15, up to 0.5 m,

      Turbidity (NTU) : ＞15, up to 0.2 m

    • Video
    • Main Stream

      50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50 Hz: 25 fps (704 × 576, 640 × 480)

      60 Hz: 30 fps (704 × 480, 640 × 480)

    • Third Stream

      50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

      60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

    • Video Compression

      Main stream: H.265/H.264 /H.265+/H.264+,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR,VBR
    • Scalable Video Coding (SVC)H.265 and H.264 encoding
    • Region of Interest (ROI)5 fixed regions for main stream and sub-stream
    • Target CroppingYes
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS, WebSocket, WebSockets
    • Simultaneous Live ViewUp to 20 channels
    • APIOpen Network Video Interface, ISAPI, SDK, ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user

    • Network Storage

      NAS (NFS, SMB/CIFS),CVR,NVR,Auto Network Replenishment (ANR),

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,

      Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

    • Image
    • Image Parameters SwitchYes
    • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
    • Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
    • Wide Dynamic Range (WDR)120 dB
    • Image EnhancementBLC,HLC,3D DNR,Defog
    • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
    • SNR≥ 50 dB
    • Privacy Mask8 programmable polygon privacy masks
    • Interface
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage

      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 128 GB,

      *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

    • Event
    • Basic Event Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
    • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection,object removal detection,scene change detection
    • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture
    • General
    • Power

      36 VDC ± 20%, 0.5 A, max. 18 W, two-core terminal block

      PoE: IEEE 802.3at, Class 4

    • Material316L and anti-corrosion coating
    • Dimension210.6 mm × 208 mm × 224 mm (8.29" × 8.19" × 8.82")
    • Package Dimension700 mm × 530 mm × 365 mm (27.6" × 20.9" × 14.4")
    • WeightApprox. 13.47 kg (29.69 lb.)
    • With Package WeightApprox. 17.38 kg (38.32 lb.)
    • Startup and Operating Conditions-10 °C to 60 °C (14 °F to 140 °F). Humidity 100% or less (non-condensing)
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • General FunctionAnti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter
    • Cable Length15 m (49.2 ft.) (included)
    • Approval
    • EMC

      CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7,

      KC: KN32: 2015, KN35: 2015

    • Safety

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,

      LOA: IEC/EN 60950-1

    • ProtectionIP68 (IEC 60529-2013) (within 15 m underwater)
