  •   Hikvision DS-2CD2D21G0/M-D/NF F2.8 (black, 2 MP, WDR)

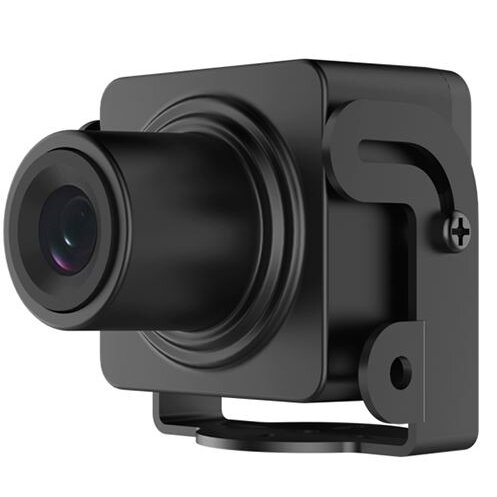

    Hikvision DS-2CD2D21G0/M-D/NF F2.8 (black, 2 MP, WDR)

    Inquire about this item
    Price 191.94 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Camera
    Image Sensor:1/2.7” Progressive Scan CMOS
    Signal System:PAL/NTSC
    Min. Illumination:Without /M model:
    Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.109 Lux @ (F2.5, AGC ON)
    B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.022 Lux @ (F2.5, AGC ON)
    With /M model:
    Color: 0.025 Lux @ (F1.2, AGC ON), Color: 0.069 Lux @ (F2.0, AGC ON)
    B/W: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.014 Lux @ (F2.0, AGC ON)
    Shutter time:1/3 s to 1/100,000 s
    Slow shutter:Support
    Lens:Without /M model: 3.7 mm
    With /M model: 2.8 mm, 4 mm
    Lens Mount:M12
    Adjustment Range:Without /M model: 3.7 mm
    horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 90°
    With/M model:
    2.8 mm
    horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
    4 mm
    horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102.5°
    Day& Night:Electronic
    Wide Dynamic Range:120 dB
    Focus:Fixed
    Compression Standard
    Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
    H.264 code profile:Baseline Profile/Main Profile/High Profile
    Video bit rate:32Kbps~8Mbps
    Dual Stream:Yes
    Triple Streams:Yes
    Max. Image Resolution:1920 x 1080
    Frame Rate:50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
    60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
    Sub Stream:50Hz: 25fps (704 × 576, 640 × 480, 352 × 288)
    60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
    Third Stream:50Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
    60Hz: 1fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
    Image Enhancement:3D DNR
    3D DNR:Support
    ROI:Support 1 fixed region for main stream, sub-stream and third stream
    Day/Night Switch:Day/Night/Auto/Schedule
    Network
    Network Storage:NAS (Support NFS,SMB/CIFS)
    Alarm Trigger:Motion detection, video tampering alarm, illegal login
    Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
    General Function:Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering
    System Compatibility:ONVIF (Profile S, Profile G), ISAPI
    Intelligent
    Behavior analysis:Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
    Interface
    Communication Interface:1 RJ45 10M/100M self-adaptive Ethernet port
    Audio:1 input (line in)
    Reset Button:Yes
    Smart Feature-set
    Behavior Analysis:Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
    Line Crossing Detection:Cross a pre-defined virtual line
    Intrusion Detection:Enter and loiter in a pre-defined virtual region
    Region Entrance:Enter a pre-defined virtual region from the outside place
    Region Exiting:Exit from a pre-defined virtual region
    Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
    Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
    Exception Detections:Scene change detection, defocus detection
    Recognition:Face Detection
    General
    Operation Condition:-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
    Power Supply:12 VDC ± 20%, Φ 5.5 mm coaxial plug power
    Power Consumption:12 VDC, 0.3 A, max. 3 W
    Dimensions:Without /M model: 31 mm × 31 mm × 26 mm (1.2" × 1.2" × 1")
    With /M model: 31 mm × 31 mm × 39 mm (1.2" × 1.2" × 1.5")
    Weight:With package: approx. 202 g (0.4 lb.)
    Camera: approx. 93 g (0.2 lb.)
