  •   Hikvision door station DS-KD8023-E6

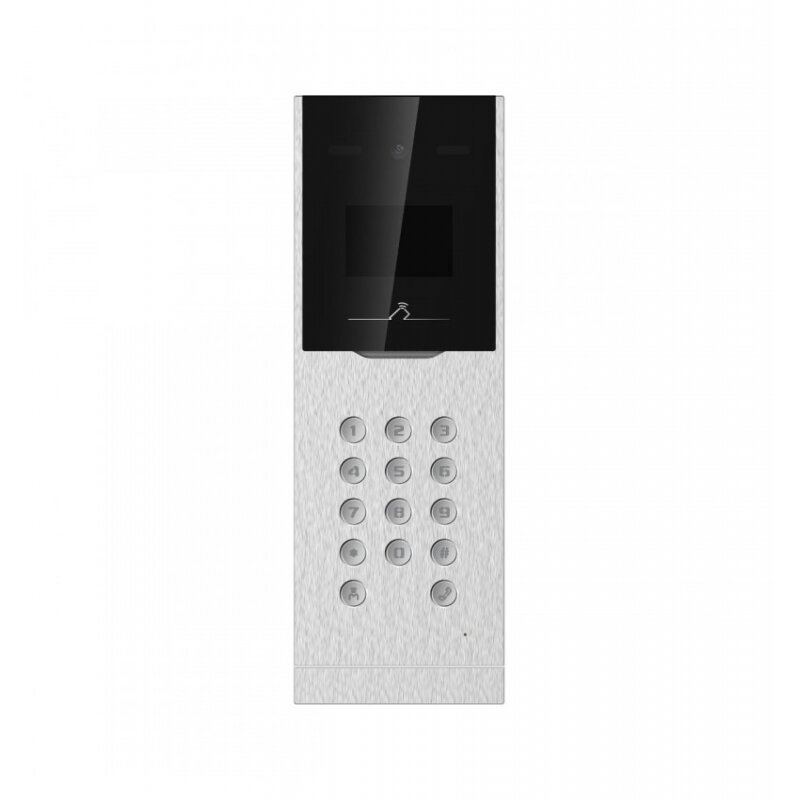

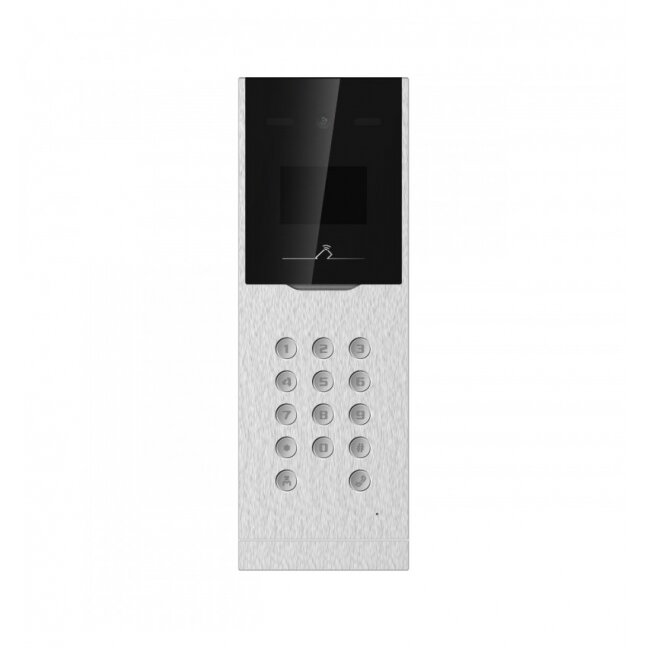

    Hikvision door station DS-KD8023-E6

    Inquire about this item
    Price 729.14 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Display parameters
    • Size3.5-inch
    • Operation methodDisplay screen, physical buttons
    • TypeColorful LCD
    • Video parameters
    • Supplement lightLow illumination, IR supplement lights
    • Lens2 MP HD camera
    • FOVHorizontal: 70°, Vertical: 121°, Diagonal: 131°
    • Pixel

      Main stream: 1920×1080p ,720p

      Sub stream: 640×480

    • Audio parameters
    • Audio qualityNoise suppression and echo cancellation
    • Network parameters
    • Communication protocolTCP/IP, RTSP
    • Wired networkSupport
    • Wi-Fi/
    • Bluetooth/
    • Device interfaces
    • Network interface1 10/100/1000 Mbps self-adaptive, RJ45 Analog Interface
    • Exit button2
    • Lock control2
    • Door contact input2
    • Power interface1
    • General
    • Button/
    • InstallationFlush mounting
    • Indicator/

    • Without package: 1.05 kg

      With package: 2.166 kg

    • Protective levelIP 65
    • Power supply method12 VDC
    • Working temperature-40 ° C to +55 ° C (-40 ° F to +135 °F)
    • Working humidity10% to 95%
    • Dimensions418 mm × 145 mm × 59.7 mm (16.46" × 5.71" × 2.35")
    • Battery/
    • Power supply≤ 10 W
