  •   Hikvision dome DS-2CE72DF3T-PIRXOS F2.8

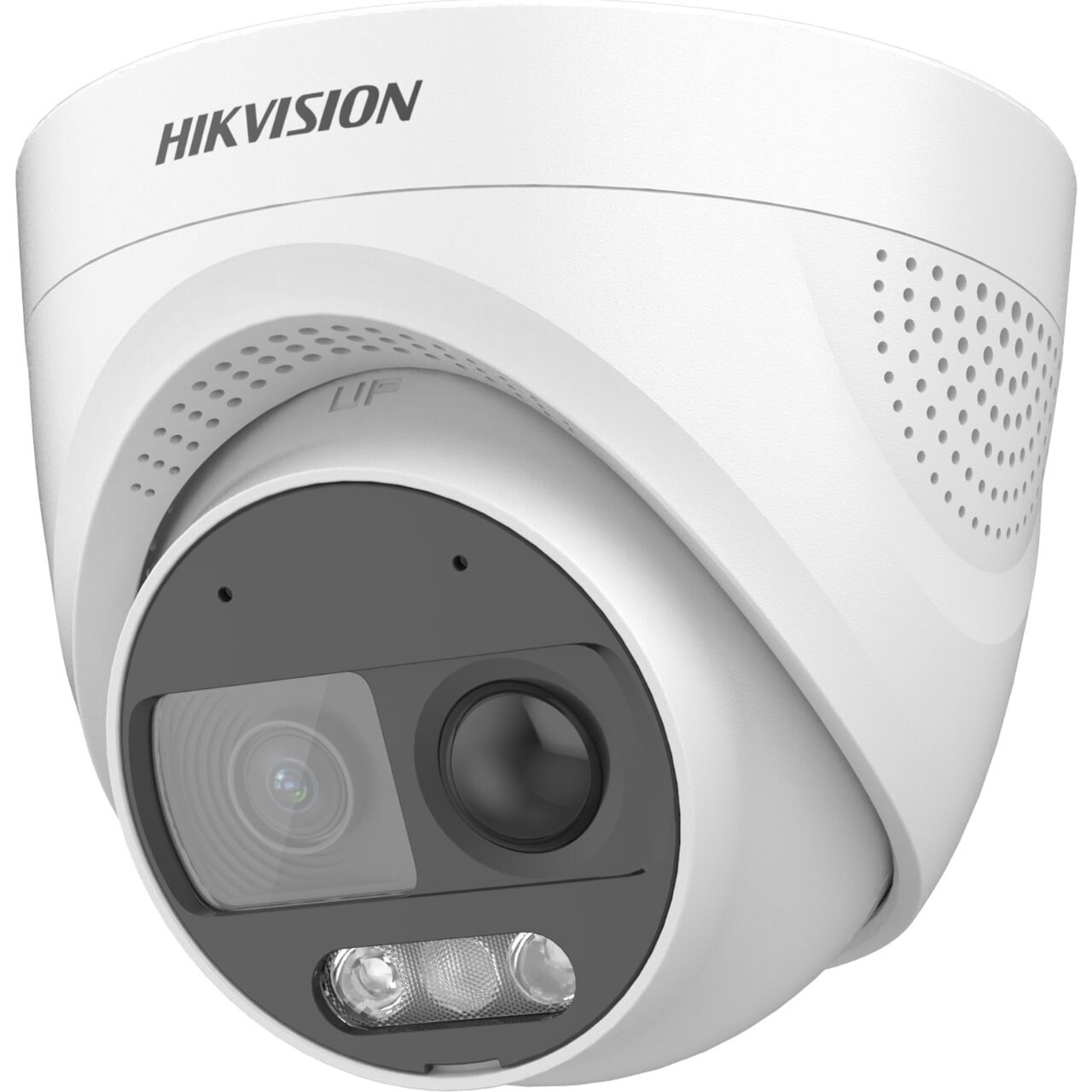

    Hikvision dome DS-2CE72DF3T-PIRXOS F2.8

    Inquire about this item
    Price 129.87 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor2 MP CMOS
    • Signal SystemPAL/NTSC
    • Resolution1920 (H) × 1080 (V)
    • Frame RateTVI: 1080p @ 25 fps/30 fps
    • Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
    • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
    • Slow ShutterMax. 16 times
    • Lens2.8 mm, 3.6 mm fixed focal lens
    • Field of View

      2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°

      3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°

    • Lens MountM12
    • Light AlarmFlashing Light Alarm (Red & Blue)
    • Day & Night24/7 Color Imaging
    • WDR (Wide Dynamic Range)≥130 dB
    • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
    • Image
    • White LightAuto/Off
    • Image ModeSTD/HIGH-SAT/HIGHLIGHT
    • AGCYes
    • Day/Night ModeColor
    • White BalanceAuto/Manual
    • AE (Auto Exposure) ModeWDR;BLC;HLC;Global;HLS
    • Privacy Mask4 programmable privacy masks
    • Motion Detection4 programmable motion areas
    • Noise Reduction3D DNR/2D DNR
    • LanguageEnglish
    • FunctionDefective Pixel Correction;Sharpness;Mirror;Contrast;Brightness;Anti-Banding;Smart Light
    • Interface
    • Video Output1 HD analog output
    • Alarm1 line out
    • Audio InBuilt-in mic
    • General
    • Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
    • Power Supply

      12 VDC ± 25%,

      *You are recommended to use one power adapter to supply the power for one camera.

    • ConsumptionMax. 9.6 W
    • Protection LevelIP67
    • MaterialMain body: Metal, Enclosure: Plastic
    • White Light RangeUp to 20 m
    • PIR RangeAngle: 110°, Range: 11 m
    • CommunicationHIKVISION-C
    • DimensionØ109.82 mm × 93.66 mm (Ø4.3" × 3.7")
    • WeightApprox. 396 g (0.87 lb.)
