  •   Hikvision Dome DS-2CD3343G2/X2-LIZSUY/SL F2.8/4mm (4MP, AcuSense, Darkfighter, LED 40m, IP67, PoE)

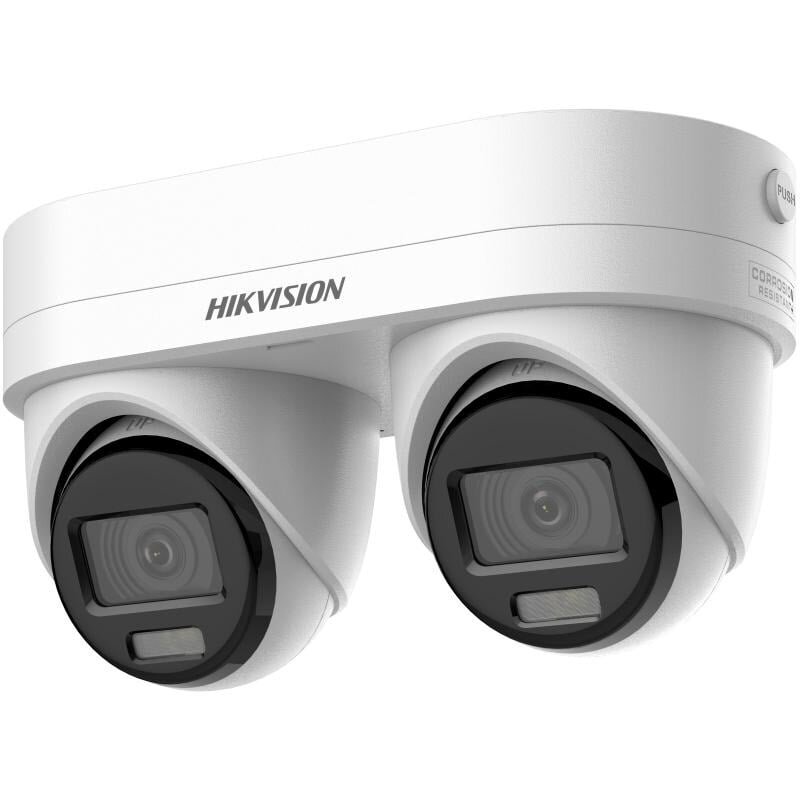

    Hikvision Dome DS-2CD3343G2/X2-LIZSUY/SL F2.8/4mm (4MP, AcuSense, Darkfighter, LED 40m, IP67, PoE)

    Inquire about this item
    Price 835.03 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision
    • Approval
    • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, IC: ICES-003: Issue 7
    • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
    • ProtectionIP67: IEC 60529-2013
    • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
    • Audio
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
    • Environment Noise FilteringYes
    • Camera
    • Angle AdjustmentChannel 1: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°, Channel 2: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
    • Day & NightChannel 1: IR cut filter, Channel 2: IR cut filter
    • Image SensorChannel 1: 1/3" Progressive Scan CMOS, Channel 2: 1/3" Progressive Scan CMOS
    • Max. ResolutionChannel 1: 2688 × 1520, Channel 2: 2688 × 1520
    • Min. IlluminationChannel 1: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR, Channel 2: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    • Shutter Time1/3 s to 1/100,000 s
    • DORI
    • DORIChannel 1: 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m Channel 2: 2.8 mm, D: 66.6 m, O: 26.4 m, R: 13.3 m, I: 6.7 m 4 mm, D: 79.2 m, O: 31.4 m, R: 15.8 m, I: 7.9 m
    • Deep Learning Function
    • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light flashing
    • General
    • Dimension199.9 mm × 120.1 mm × 97.2 mm (7.87" × 4.73" × 3.83")
    • Flashing LightWhite Light
    • General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • MaterialMetal
    • Package Dimension305 mm × 162 mm × 165 mm (12.01" × 6.38" × 6.5")
    • Power12 VDC ± 25%, 1.42 A, max. 17 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • WeightApprox. 1215 g (2.7 lb.)
    • With Package WeightApprox. 1582 g (3.5 lb.)
    • Illuminator
    • IR Wavelength850 nm
    • Smart Supplement LightYes
    • Supplement Light RangeIR: up to 40 m White Light: up to 40 m
    • Supplement Light TypeIR,White Light
    • Image
    • Day/Night SwitchDay,Night,Auto,Schedule
    • Image EnhancementBLC,HLC,3D DNR
    • Image Parameters SwitchYes
    • Image SettingsRotate mode
    • Privacy Mask8 programmable polygon privacy masks
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)120 dB
    • Interface
    • Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
    • AudioBuilt-in Microphone: Arrayed dual-microphone,1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
    • Built-in Speaker 1 built-in speaker,Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 110 dB.
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
    • RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
    • Reset KeyYes
    • Lens
    • ApertureF1.6
    • Depth of Field2.8 mm: 1.2 m to ∞ 4 mm: 1.5 m to ∞
    • Focal Length & FOVChannel 1: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2° 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0° Channel 2: 2.8 mm, horizontal FOV 99.3°, vertical FOV 52.9°, diagonal FOV 120.2° 4 mm, horizontal FOV 80.0°, vertical FOV 44.1°, diagonal FOV 94.0°
    • Iris TypeFixed
    • Lens MountØ14
    • Lens TypeChannel 1: Varifocal lens, motorized lens, 2.8 mm and 4 mm, Channel 2: Varifocal lens, motorized lens, 2.8 mm and 4 mm
    • Network
    • APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
    • ClientiVMS-4200,Hik-Connect,Hik-Central
    • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
    • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
    • Simultaneous Live ViewUp to 6 channels
    • User/HostUp to 32 users 3 user levels: administrator, operator, and user
    • Web BrowserPlug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
    • Video
    • Bit Rate ControlCBR,VBR
    • H.264 TypeBaseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Main StreamChannel 1 & Channel 2: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream and third Stream
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Sub-StreamChannel 1 & Channel 2: 50 Hz: 25 fps (768 × 432,640 × 360) 60 Hz: 30 fps (768 × 432,640 × 360)
    • Target CroppingYes
    • Third StreamChannel 1 & Channel 2: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
    • Video Bit Rate32 Kbps to 16 Mbps
    • Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
