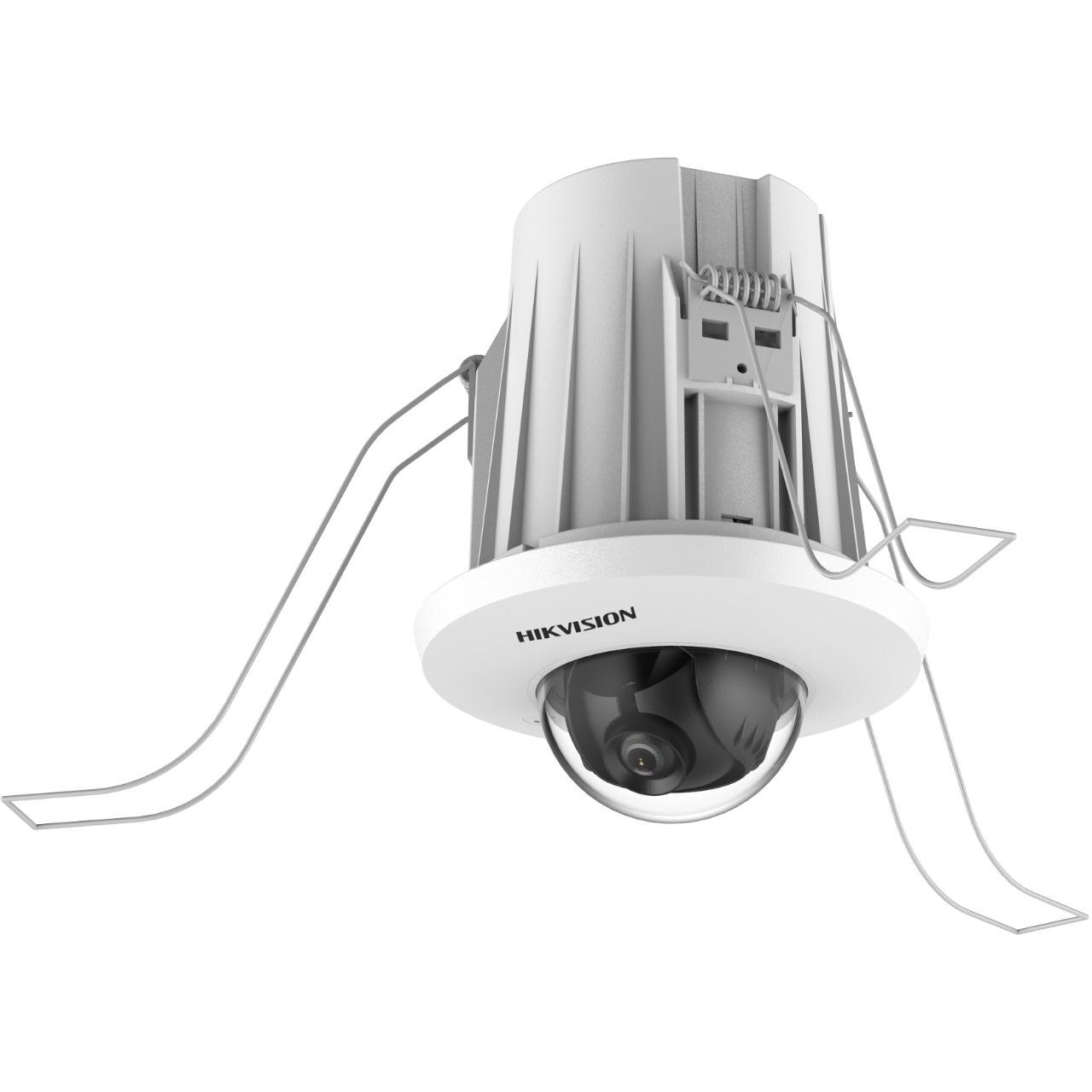

  •   Hikvision dome DS-2CD2E43G2-U F2.8 (white, 4 MP, AcuSense)

    Hikvision dome DS-2CD2E43G2-U F2.8 (white, 4 MP, AcuSense)

    Inquire about this item
    Price 235.57 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor1/3" Progressive Scan CMOS
    • Max. Resolution2688 × 1520
    • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
    • Shutter Speed1/3 s to 1/100,000 s
    • Angle AdjustmentTilt: 0° to 75°
    • Lens
    • Lens Type & FOV

      2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122°

      4 mm, horizontal FOV 84°, vertical FOV 43°, diagonal FOV 100°

    • ApertureF1.6
    • Lens MountM12
    • DORI
    • DORI

      2.8 mm: D: 56 m, O: 22 m, R: 11 m, I: 6 m

      4 mm: D: 85 m, O: 34 m, R: 17 m, I: 9 m

    • Video
    • Main Stream

      50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    • Sub Stream

      50 Hz: 25 fps (640 × 480, 640 × 360)

      60 Hz: 30 fps (640 × 480, 640 × 360)

    • Third Stream

      50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

    • Video Compression

      Main stream: H.265/H.264/H.264+/H.265+

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR/VBR
    • Scalable Video Coding (SVC)

      Yes

    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Audio
    • Environment Noise FilteringYes
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
    • Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
    • Network
    • Simultaneous Live ViewUp to 6 channels
    • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK , ISUP
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
    • Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web Browser

      Plug-in required live view: IE 10, IE 11

      Plug-in free live view : Chrome 57.0+, Firefox 52.0+

      Local service: Chrome 57.0+, Firefox 52.0+

    • Image
    • Wide Dynamic Range (WDR)120 dB
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Image EnhancementBLC, HLC, 3D DNR
    • Image Parameters SwitchYes
    • Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Interface
    • Built-in MicrophoneYes
    • On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
    • Hardware ResetYes
    • Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • Event
    • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
    • Face DetectionYes
    • Deep Learning Function
    • Perimeter Protection

      Line crossing, intrusion

      Support alarm triggering by specified target types (human and vehicle)

    • General
    • Power

      12 VDC ± 25%, 0.27 A, max. 3.2 W, two-core terminal block

      PoE: (802.3af, 36 V to 57 V), Class 3, 0.12 A to 0.07 A, max. 4.2 W

    • Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
    • Web Client Language

      33 languages

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

    • General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
    • Storage Conditions-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-10 °C to 50 °C (14 °F to 122 °F). Humidity 95% or less (non-condensing)
    • MaterialPlastic body
    • Screw MaterialSUS304
    • Camera DimensionØ93.9 × 117.5 mm (Ø3.7" × 4.6")
    • Package Dimension135 × 135 × 183 mm (5.3" × 5.3" × 7.2")
    • Camera WeightApprox. 155 g (0.3 lb.)
    • With Package WeightApprox. 325 g (0.7 lb.)
    • Approval
    • EMC

      FCC (47 CFR Part 15, Subpart B);

      CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

      RCM (AS/NZS CISPR 32: 2015)

    • Safety

      UL (UL 62368-1);

      CB (IEC 62368-1:2014+A11);

      CE-LVD (EN 62368-1:2014/A11:2017)

    • Environment

      CE-RoHS (2011/65/EU);

      WEEE (2012/19/EU);

      Reach (Regulation (EC) No 1907/2006)
