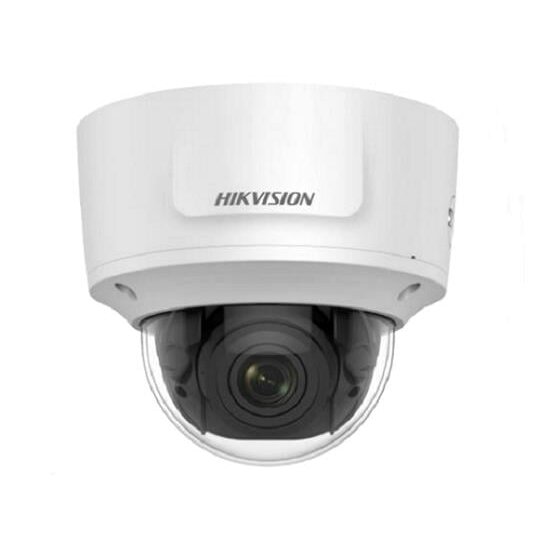

  •   Hikvision dome DS-2CD2786G2-IZS (white, 8 MP, 40 m. IR, AcuSense)

    Hikvision dome DS-2CD2786G2-IZS (white, 8 MP, 40 m. IR, AcuSense)

    Inquire about this item
    Price 491.39 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • TitleDescription
    Image Sensor1/1.8" Progressive Scan CMOS
    Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON), 0 Lux with IR
    Shutter Speed1/3 s to 1/100,000 s
    Slow ShutterYes
    Wide Dynamic Range120dB
    Day & NightICR Cut
    Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
    Power-off MemoryYes
    FocusAuto
    Lens Type & FOV2.8 to 12 mm, horizontal FOV 108° to 45°, vertical FOV 58° to 25°, diagonal FOV 127° to 52°
    ApertureF1.4
    Lens MountΦ14
    IR RangeUp to 40 m
    Wavelength850 nm
    Smart Supplement LightYes
    Max. Resolution3840 × 2160
    Main Stream50Hz: 20fps (3840 × 2160, 3072 × 1728) 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 ×2160, 3072 × 1728) 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) * When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
    Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
    Third Stream50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
    Video CompressionMain stream: H.265+/H.265/H.264+/ H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
    Video Bit Rate32 Kbps to 16 Mbps
    H.264 TypeBaseLine Profile, Main Profile, High Profile
    H.265 TypeMain Profile
    Stream TypeMain stream/sub-stream/third stream
    Scalable Video Coding (SVC)H.265 and H.264 support
    Region of Interest (ROI)1 fixed region for each stream
    Audio Sampling Rate8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3
    Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
    Audio TypeMono sound
    Simultaneous Live ViewUp to 6 channels
    APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
    ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    Smooth StreamingYes
    User/HostUp to 32 users. 3 user levels: administrator, operator and user
    SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
    Network StorageMicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
    ClientiVMS-4200, Hik-Connect, Hik-Central
    Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In
    Image EnhancementBLC, HLC, 3D DNR
    Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software and web browser
    Alarm1 input, 1 output (max. 24 VDC, 1A, 24 VAC, 1A)
    Audio1 input (line in), 3.5 mm three-connector, 1 output (line out), 3.5 mm three-connector
    On-board StorageBuilt-in micro SD slot, up to 256 GB
    Hardware ResetYes
    Communication Interface10M/100M self-adaptive Ethernet port
    Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),Scene change detection
    Premier ProtectionIntrusion detection, line crossing detection, region entrance detection, region exiting detection (Human&Vehicle classification)
    Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    General FunctionMirror, password protection, privacy mask, watermark, IP address filter, one-key reset, anti-flicker, three streams, heartbeat
    Software ResetYes
    Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning
    Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Power Supply12 VDC ± 25%, two-core terminal block; PoE: 802.3af, Class 3
    Power Consumption and Current12 VDC, 0.9 A, max. 10.8 W PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W
    Power Interface2-core terminal block
    MaterialMetal
    Camera DimensionΦ153.5 × 133.2 mm (Φ6″ × 5.2″)
    Package Dimension244 × 174 × 173 mm (9.6" × 6.9" × 6.8")
    Camera Weight1080 g (2.4 lb.)
    With Package Weight1671 g (3.7 lb.)
    ProtectionIngress protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
    EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
