  •   Hikvision dome DS-2CD2346G2-IU F6 (white, 4 MP, 30 m. IR; 30 m. LED, AcuSense)

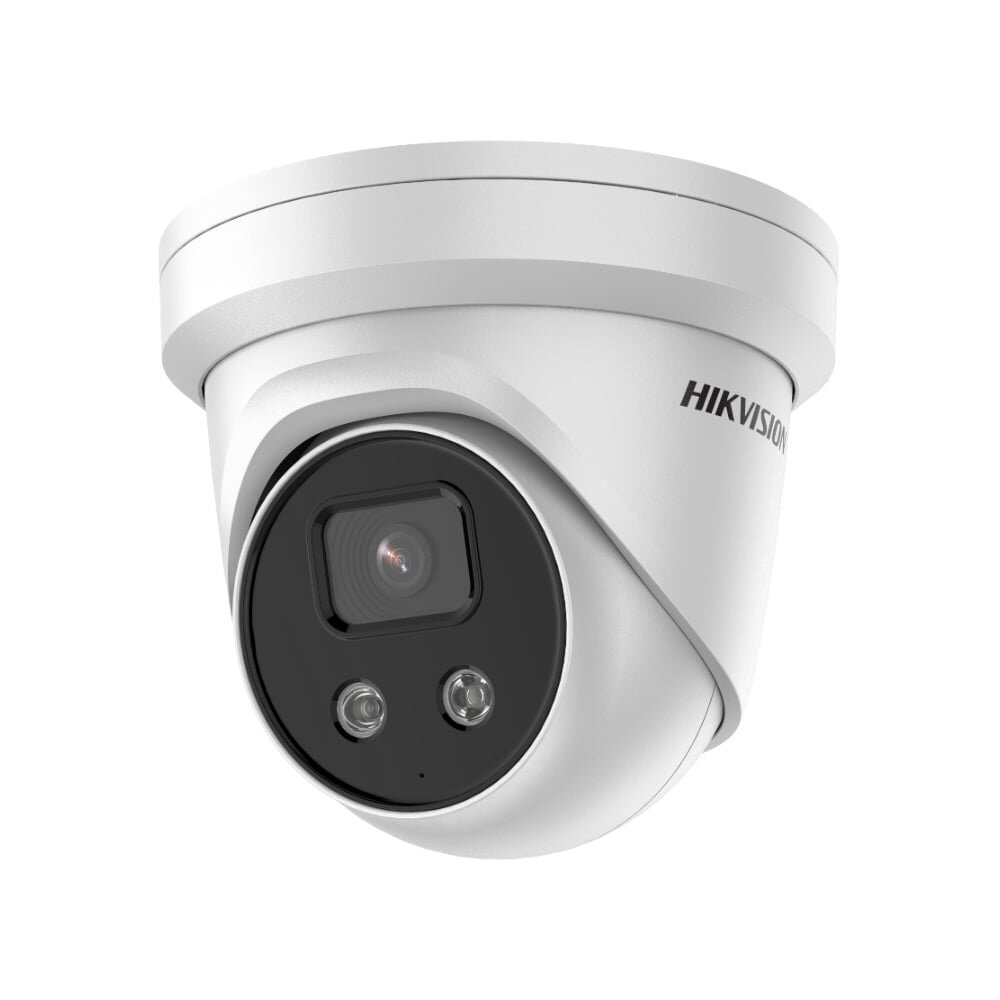

    Hikvision dome DS-2CD2346G2-IU F6 (white, 4 MP, 30 m. IR; 30 m. LED, AcuSense)

    Inquire about this item
    Price 233.73 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON)
    • Day & NightICR Cut
    • Shutter Speed1/3 s to 1/100,000 s
    • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
    • Slow ShutterYes
    • P/NP/N
    • Wide Dynamic Range120 dB
    • Lens
    • Focal Length & FOV

      2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°

      4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°

      6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°

    • ApertureF1.4
    • Lens MountM12
    • Iris TypeFixed
    • Illuminator
    • IR RangeUp to 30 m
    • IR Wavelength850 nm
    • Smart Supplement LightYes
    • Supplement Light TypeIR
    • Video
    • Max. Resolution2592 × 1944
    • Main Stream

      50Hz: 20fps (2592 × 1944)

      25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

      60Hz: 20fps (2592 × 1944)

      30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

    • Sub-Stream

      50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

      60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

    • Third Stream

      50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)

      60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240）

    • Video Compression

      Main stream: H.265/H.264

      Sub-stream: H.265/H.264/MJPEG

      Third stream: H.265/H.264

    • Video Bit Rate32 kbps to 8 Mbps
    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • H.264+Main Stream supports
    • H.265+Main Stream supports
    • Bit Rate ControlCBR/VBR
    • Scalable Video Coding (SVC)Yes
    • Region of Interest (ROI)1 fixed region for each stream
    • Audio
    • Environment Noise Filtering-U: Yes
    • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    • Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
    • Audio Bit Rate-U: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
    • Network
    • Simultaneous Live ViewUp to 6 channels
    • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP
    • Smooth StreamingYes
    • User/HostUp to 32 users. 3 user levels: administrator, operator and user
    • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
    • Network Storage

      MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Web Browser

      Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+

    • Image
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Image EnhancementBLC, HLC, 3D DNR
    • Image Parameters SwitchYes
    • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    • Interface
    • Built-in Microphone-U: Yes
    • On-Board StorageBuilt-in micro SD slot, up to 256 GB
    • Hardware ResetYes
    • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
    • Deep Learning Function
    • Face CaptureYes
    • Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
    • Intelligent (Traditional Algorithm)
    • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
    • General
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Power Supply

      12 VDC ± 25%, reverse polarity protection

      PoE: 802.3af, class 3

    • Power Consumption and Current

      12 VDC, 0.48 A, max. 5.8 W

      PoE: (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W

    • Power InterfaceØ5.5 mm coaxial power plug
    • Camera DimensionØ138.3 × 126.3 mm (5.4" × 5.0")
    • Package Dimension170 × 170 × 150 mm (6.7" × 6.7" × 5.9")
    • Camera WeightApprox. 770 g (1.7 lb.)
    • With Package WeightApprox. 1073 g (2.4 lb.)
    • Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture
    • Web Client Language

      33 languages:

      English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

    • General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
    • Software ResetYes
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    • ProtectionIngression protection: IP67 (IEC 60529-2013)
