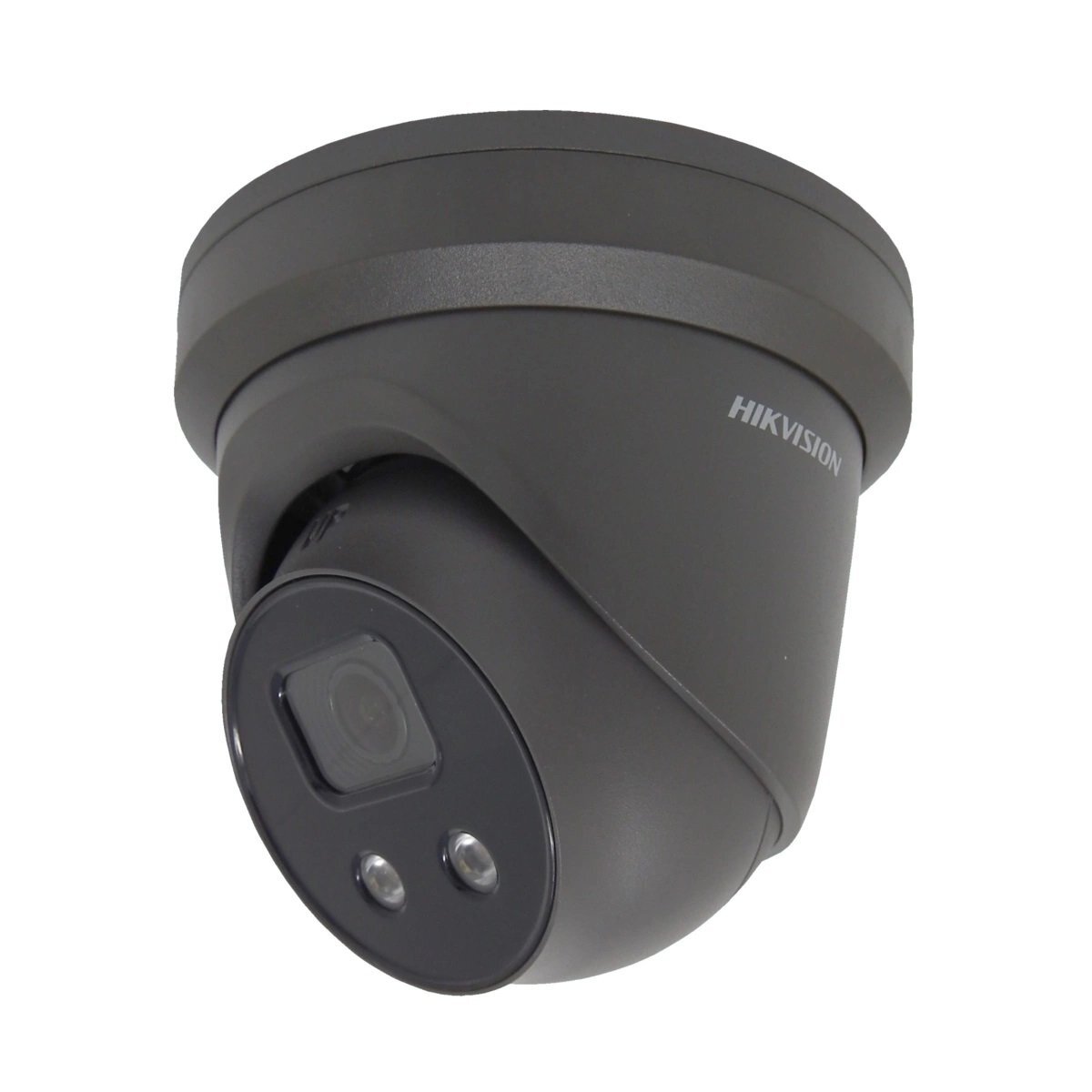

  •   Hikvision dome DS-2CD2346G2-IU F2.8 (black, 4 MP, 30 m. IR, AcuSense)

    Hikvision dome DS-2CD2346G2-IU F2.8 (black, 4 MP, 30 m. IR, AcuSense)

    Inquire about this item
    Price 233.73 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Image Sensor1/2.7" Progressive Scan CMOS
    Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON)
    Shutter Speed1/3 s to 1/100,000 s
    Slow ShutterYes
    Focal length2.8 mm
    FocusFixed
    ApertureF1.4
    FOVHorizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°
    Lens MountM12
    Day &NightICR Cut
    DNR3D DNR
    Wide Dynamic Range120dB
    3-Axis AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
    Video CompressionMain stream: H.265/H.264
    Sub stream: H.265/H.264/MJPEG
    Third stream: H.265/H.264
    H.264 TypeBaseline Profile/Main Profile/High Profile
    H.264+Main stream supports
    H.265 TypeMain Profile
    H.265+Main stream supports
    Video Bit Rate32 Kbps to 16 Mbps
    Bit Rate ControlCBR/VBR
    Scalable Video Coding (SVC)Yes
    Max. Resolution2592 × 1944
    Main Stream50Hz:
    20fps (2592 × 1944)
    25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz:
    20fps (2592 × 1944)
    30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
    Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
    Third Stream50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
    60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
    Image EnhancementBLC, HLC, 3D DNR
    Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    ROI (Region of Interest)1 fixed regionfor each stream
    Day/Night SwitchDay/Night/Auto/Schedule
    Network StorageSupport micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
    Alarm TriggerTampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
    ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    Smooth StreamingYes
    General FunctionOne-key reset, anti-filter
    Firmware VersionV5.5.72
    APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
    Environment Noise FilteringYes
    Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
    Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
    Simultaneous Live ViewUp to 6 channels
    User/HostUp to 32 users
    3 levels: Administrator, Operator and User
    ClientiVMS-4200, Hik-Connect, Hik-Central
    Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
    Audio interface1 built-in microphone
    On-board StorageBuilt-in micro SD slot, up to 256 GB
    Reset ButtonYes
    Face CaptureYes
    Behavior AnalysisLine crossing detection, intrusion detection, region entrance detection, region exit detection, false alarm reduction by human and vehicle target classification based on deep learning
    Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
    Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug
    PoE (802.3at, class 3)
    Power Consumption12 VDC, 0.48A, max: 5.8W
    PoE: (802.3af, 36V to 57 V), 0.19 A to 0.12 A, max: 6.8W
    IR RangeUp to 30 m
    Wavelength850 nm
    Smart Supplement LightYes
    Protection LevelIP66
    MaterialMetal except for trim ring
    DimensionsCamera: Φ138.3×126.3mm (Φ5.4"×5")
    With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
    WeightCamera: 770g (1.7lb.)
    With package: 1073g (2.4lb.)
    Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture
    Web Client Language33 languages
    English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    General FunctionAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
    Software ResetYes
    EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
