  •   Hikvision dome DS-2CD2125G0-IMS F2.8 (white, 2 MP, 30 m. IR, DarkFighter)

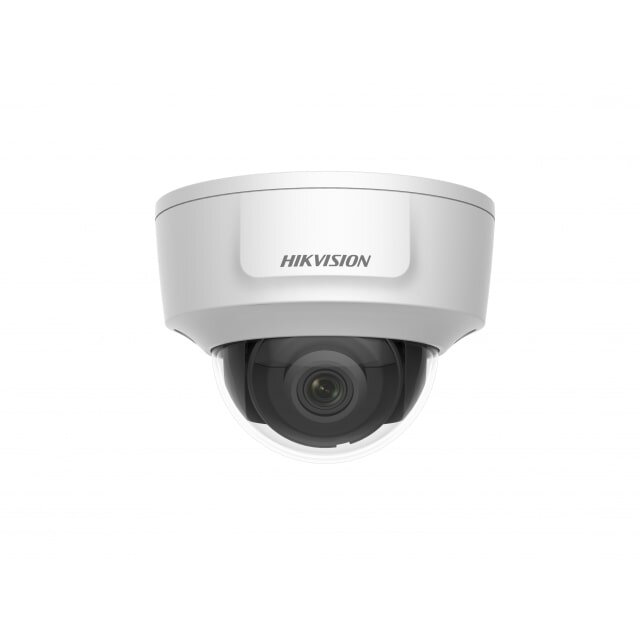

    Hikvision dome DS-2CD2125G0-IMS F2.8 (white, 2 MP, 30 m. IR, DarkFighter)

    Inquire about this item
    Price 309.23 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Camera
    Image Sensor:1/2.8" Progressive Scan CMOS
    Signal System:PAL/NTSC
    Min. Illumination:Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
    Shutter time:1/3 s to 1/100,000 s
    Slow shutter:Support
    Lens:2.8 mm, horizontal FOV: 108° , vertical FOV: 58° , diagonal FOV: 128°
    4 mm, horizontal FOV: 86° , vertical FOV: 46° , diagonal FOV: 103°
    6 mm, horizontal FOV: 52° , vertical FOV: 29° , diagonal FOV: 60°
    Lens Mount:M12
    Adjustment Range:Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
    Day& Night:IR cut filter with auto switch
    Wide Dynamic Range:120 dB
    Digital noise reduction:3D DNR
    Compression Standard
    Video Compression:H.265/H.264/MJPEG
    Video bit rate:32Kbps~16Mbps
    Audio Compression:-S: G.711/G.722.1/G.726/MP2L2
    Audio bit rate:64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
    Dual Stream:Yes
    Max. Image Resolution:1920 x 1080
    Sub Stream:50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

    Frame Rate:50Hz: 50fps (1920 × 1080, 1280 × 720)
    60Hz: 60fps (1920 × 1080, 1280 × 720)

    Image Enhancement:BLC/3D DNR/HLC
    Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
    ROI:Support 1 fixed region for main stream and sub stream separately
    Day/Night Switch:Auto/Scheduled
    Network
    Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
    mask, Watermark, IP address filtering
    System Compatibility:ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
    Interface
    Communication Interface:1 RJ45 10M / 100M Ethernet interface
    Video Output:1 HDMI Output
    On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
    Smart Feature-set
    Behavior Analysis:Line crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
    Line Crossing Detection:Cross a pre-defined virtual line
    Intrusion Detection:Enter and loiter in a pre-defined virtual region
    Unattended Baggage:Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
    Object Removal:Objects removed from the pre-defined region, such as the exhibits on display.
    Exception Detections:Scene change detection
    Recognition:Face Detection
    General
    Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
    Humidity 95% or less (non-condensing)
    Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
    Power Consumption:12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
    IR Range:Up to 30m
    Dimensions:Camera: Φ 119 × 90 mm (Φ 4.7" × 3.5")
    Weight:Camera: Approx. 520 g (1.1 lb.)
    With package: Approx. 750 g (1.7 lb.)
