  •   Hikvision dome DS-2CD1743G2-IZ F2.8-12 (white, 4 MP, 30 m. IR)

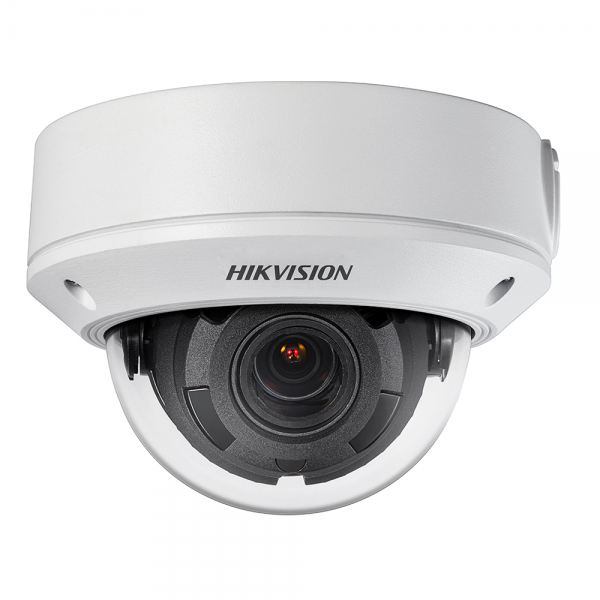

    Hikvision dome DS-2CD1743G2-IZ F2.8-12 (white, 4 MP, 30 m. IR)

    Inquire about this item
    Price 290.53 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor 1/3" Progressive Scan CMOS
    • Max. Resolution 2560 × 1440
    • Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    • Shutter Time 1/3 s to 1/100,000 s
    • Day & Night IR cut filter
    • Angle Adjustment Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°
    • Lens
    • Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
    • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5°
    • Lens Mount Ø14
    • Iris Type Fixed
    • Aperture F1.6
    • Illuminator
    • Supplement Light Type IR
    • Supplement Light Range Up to 30 m
    • Smart Supplement Light Yes
    • IR Wavelength 850 nm
    • Video
    • Main Stream

      50 Hz:

      20 fps (2560 × 1440)

      25 fps (1920 × 1080, 1280 × 720)

      60 Hz:

      20 fps (2560 × 1440)

      24 fps (1920 × 1080, 1280 × 720)
    • Sub-Stream

      50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG
    • Video Bit Rate 32 Kbps to 8 Mbps
    • H.264 Type Baseline Profile,Main Profile,High Profile
    • H.265 Type Main Profile
    • Region of Interest (ROI) 1 fixed region(s) for main stream
    • Audio
    • Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
    • Audio Bit Rate -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
    • Audio Sampling Rate -S: 8 kHz/16 kHz
    • Environment Noise Filtering -S: Yes
    • Network
    • Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    • Simultaneous Live View Up to 6 channels
    • API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
    • Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user
    • Client iVMS-4200,Hik-Connect
    • Web Browser

      Plug-in required live view: IE 10, IE 11,

      Local service: Chrome 57.0+, Firefox 52.0+
    • Image
    • Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Day/Night Switch Auto,Schedule,Day,Night
    • Wide Dynamic Range (WDR) 120 dB
    • Image Enhancement BLC,HLC,3D DNR
    • Interface
    • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage

      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
    • Audio

      -S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,

      -S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
    • Alarm -S: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
    • Reset Key Yes
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S)
    • General
    • Power

      12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,

      PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
    • Material Metal
    • Dimension

      Ø141 mm × 99.9 mm (Ø5.6 × 3.9\")"
    • Package Dimension 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
    • Weight Approx. 820 g (1.8 lb.)
    • With Package Weight Approx. 1200 g (2.6 lb.)
    • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language English, Ukrainian
    • General Function Heartbeat,anti-banding,mirror,password protection,privacy mask, watermark
    • Approval
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      IC: ICES-003: Issue 7
    • Safety

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017,

      BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
    • Environment

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006
    • Protection IP67: IEC 60529-2013,IK10: IEC 62262:2002
