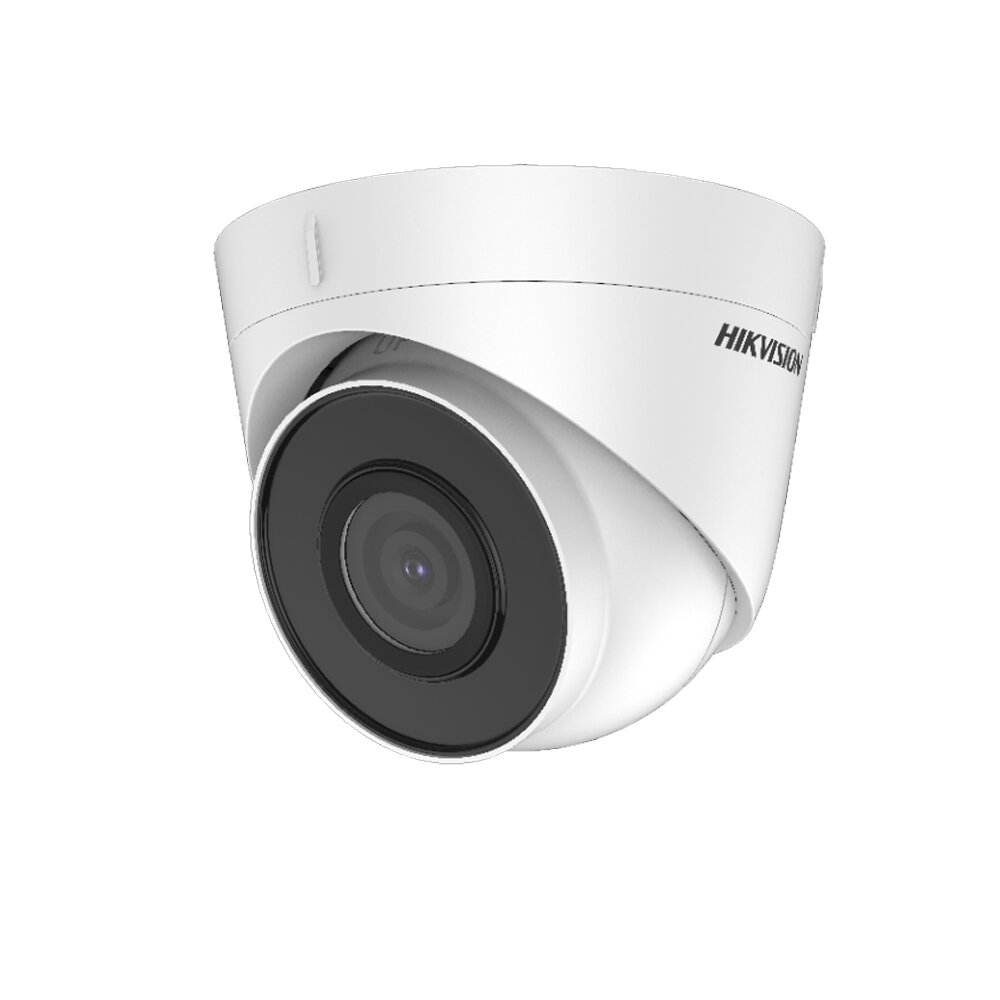

  •   Hikvision dome DS-2CD1353G0-I F2.8 (white, 5 MP, 30 m. IR)

    Hikvision dome DS-2CD1353G0-I F2.8 (white, 5 MP, 30 m. IR)

    Inquire about this item
    Price 171.79 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON)
    • Shutter Speed1/3 s to 1/100,000 s
    • Slow ShutterYes
    • Day &NightIR Cut Filter
    • Wide Dynamic Range120 dB
    • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
    • DNR3D DNR
    • Lens
    • Lens2.8/4 mm
    • ApertureF2.0
    • FocusFixed
    • FOV

      2.8 mm, horizontal FOV: 98°, vertical FOV: 72°, diagonal FOV: 127°

      4 mm, horizontal field of view: 77°, vertical FOV: 56°, diagonal FOV: 102°

    • Lens MountM12
    • Illuminator
    • IR RangeUp to 30 m
    • Wavelength850 nm
    • Video
    • Max. Resolution2560 × 1920
    • Main Stream

      50Hz: 12.5 fps (2560 × 1920)

      20 fps (2560 × 1440)

      25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

      60Hz: 15 fps (2560 × 1920)

      20 fps (2560 × 1440)

      30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

    • Sub Stream

      50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)

      60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

    • Video Compression

      Main stream: H.265/H.264

      Sub-stream: H.265/H.264/MJPEG

    • H.264 TypeBaseline Profile/Main Profile/High Profile
    • H.265 TypeMain Profile
    • Video Bit Rate32 Kbps to 8 Mbps
    • Smart Feature-Set
    • Region of InterestSupport 1 fixed region for main stream
    • Image
    • Image EnhancementBLC/3D DNR
    • Image SettingSaturation, brightness, contrast and sharpness are adjustable via client software and web browser
    • Day/Night SwitchAuto/Schedule/Day/Night
    • Network
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
    • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK
    • Simultaneous Live ViewUp to 6 channels
    • User/HostUp to 32 users, 3 levels: Administrator, Operator and User
    • ClientiVMS-4200, Hik-Connect, iVMS-5200
    • Web Browser

      Plug-in required live view: IE 10, IE 11

      Local service: Chrome 57.0+, Firefox 52.0+

    • Alarm TriggerMotion detection, video tampering, exception (network disconnected, IP address conflict, illegal login, HDD error)
    • Interface
    • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
    • On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
    • Built-in Microphone-U: Yes
    • Hardware Reset-F: Yes
    • Compression Standard
    • H.264+Main stream supports
    • H.265+Main stream supports
    • General
    • Firmware VersionV5.5.122
    • Web Client LanguageEnglish, Ukrainian
    • General FunctionHeartbeat, mirror, password protection, privacy mask, watermark, IP address filter
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Power Supply

      12 VDC ± 25%

      PoE: 802.3af, Class 3

    • Power Consumption and Current

      12 VDC, 0.4 A, max. 5 W

      PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W

    • MaterialMetal & plastic
    • Dimensions

      Camera: Ø 110 mm × 85.3 mm (Ø4.3" × 3.4\")

      With package: 150 mm × 150 mm × 141 mm (5.9 × 5.9\" × 5.6\")"

    • Weight

      Camera: approx. 320 g (0.7 lb.)

      With package: approx. 566 g (1.2 lb.)

    • Interface ProtectionIP67 (IEC 60529-2013)
