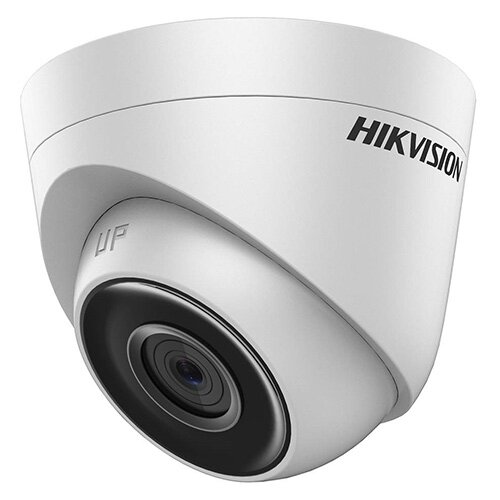

Hikvision dome DS-2CD1343G0-I F2.8 (white, 4 MP, 30 m. IR)

Camera

Image Sensor

1/3" progressive scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed

1/3s to 1/100,000 s, support slow shutter

Lens

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

Lens Mount

M12

Day &Night

IR cut filter

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0°to 75°, rotation:0° to 360°

DNR(Digital Noise Reduction)

3D DNR

WDR (Wide Dynamic Range)

Digital WDR

Compression Standard

Video Compression

Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG

Video Bit Rate

32 Kbps to 8 Mbps


Max. Resolution

2560 × 1440

Main Stream Max. Frame Rate

50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream Max. Frame Rate

50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)

60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, scheduled

Network

Network Storage

NAS (NFS,SMB/CIFS)

Alarm Trigger

Motion detection, video tampering alarm, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Standard

ONVIF (PROFILE S, PROFILE G), ISAPI

General Function

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

General

Operating Conditions

-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption

12 VDC, 0.4 A, Max: 5 W

PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

Ingress Protection

IP67

IR Range

Up to 30 m

Dimensions

Φ 110 mm × 93.2 mm (4.33"× 3.67")

Weight

350 g
