  •   Hikvision dome DS-2CD1143G0-I F2.8 (black, 4 MP, 30 m. IR)

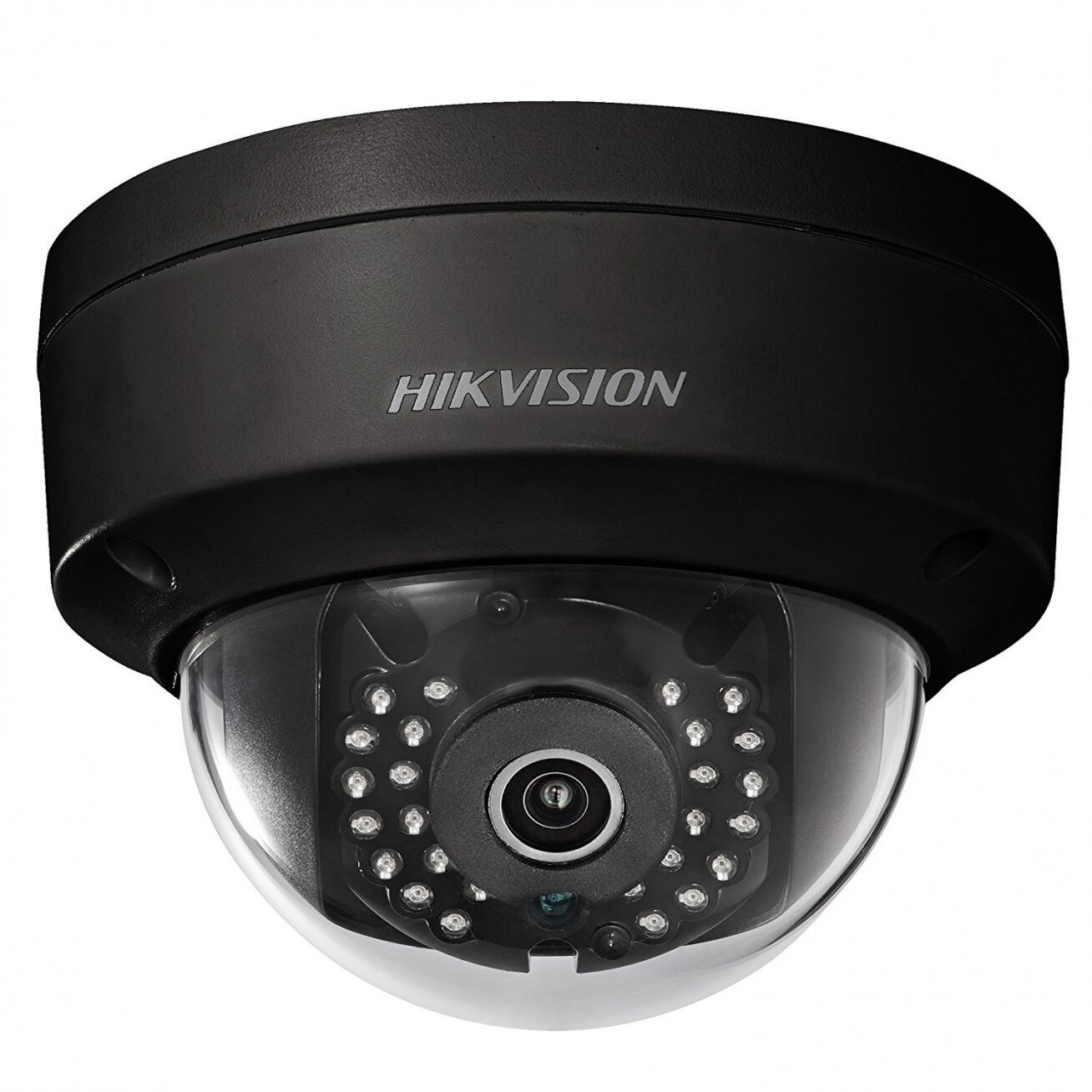

    Hikvision dome DS-2CD1143G0-I F2.8 (black, 4 MP, 30 m. IR)

    Inquire about this item
    Price 154.63 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Image Sensor

    1/3" progressive scan CMOS

    Min. Illumination

    Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

    Shutter Speed

    1/3s to 1/100,000 s, support slow shutter

    Lens

    2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

    Lens Mount

    M12

    Day &Night

    IR cut filter

    Digital Noise Reduction

    3D DNR

    Angle Adjustment

    Pan: 0° to 355°, tilt: 0°to 70°

    WDR

    Digital WDR

    Video Compression

    Main stream: H.265/H.264

    Sub stream: H.265/H.264/MJPEG

    H.264 Type

    Baseline Profile/Main Profile/High Profile

    H.264+

    Main stream supports

    H.265 Type

    Main Profile

    H.265+

    Main stream supports

    Video Bit Rate

    32 Kbps to 8 Mbps

    Max. Resolution

    2560 × 1440

    Frame Rate

    50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

    60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

    Sub-stream

    50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

    Image Settings

    Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

    Day/Night Switch

    Auto, scheduled

    Network Storage

    NAS (NFS, SMB/CIFS)

    Alarm Trigger

    Motion detection, video tampering alarm, illegal login

    Protocols

    TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

    General Function

    One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

    Communication Interface

    1 RJ45 10M/100M self-adaptive Ethernet port

    Reset Button

    Yes

    Operating Conditions

    -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

    Power Supply

    12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

    Power Consumption and Current

    12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

    Ingress Protection level

    IP67

    IR Range

    Up to 30 m

    Impact Protection

    IK10

    Dimensions

    Camera: Ø 111 mm × 82.4 mm ( 4.4" × 3.2")

    With package: 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

    Weight

    Camera: approx. 410 g (0.9 lb.)

    With package: approx. 610 g (1.3 lb.)
