  •   Hikvision Control Panel AX PRO DS-PWA96-M2H-WE

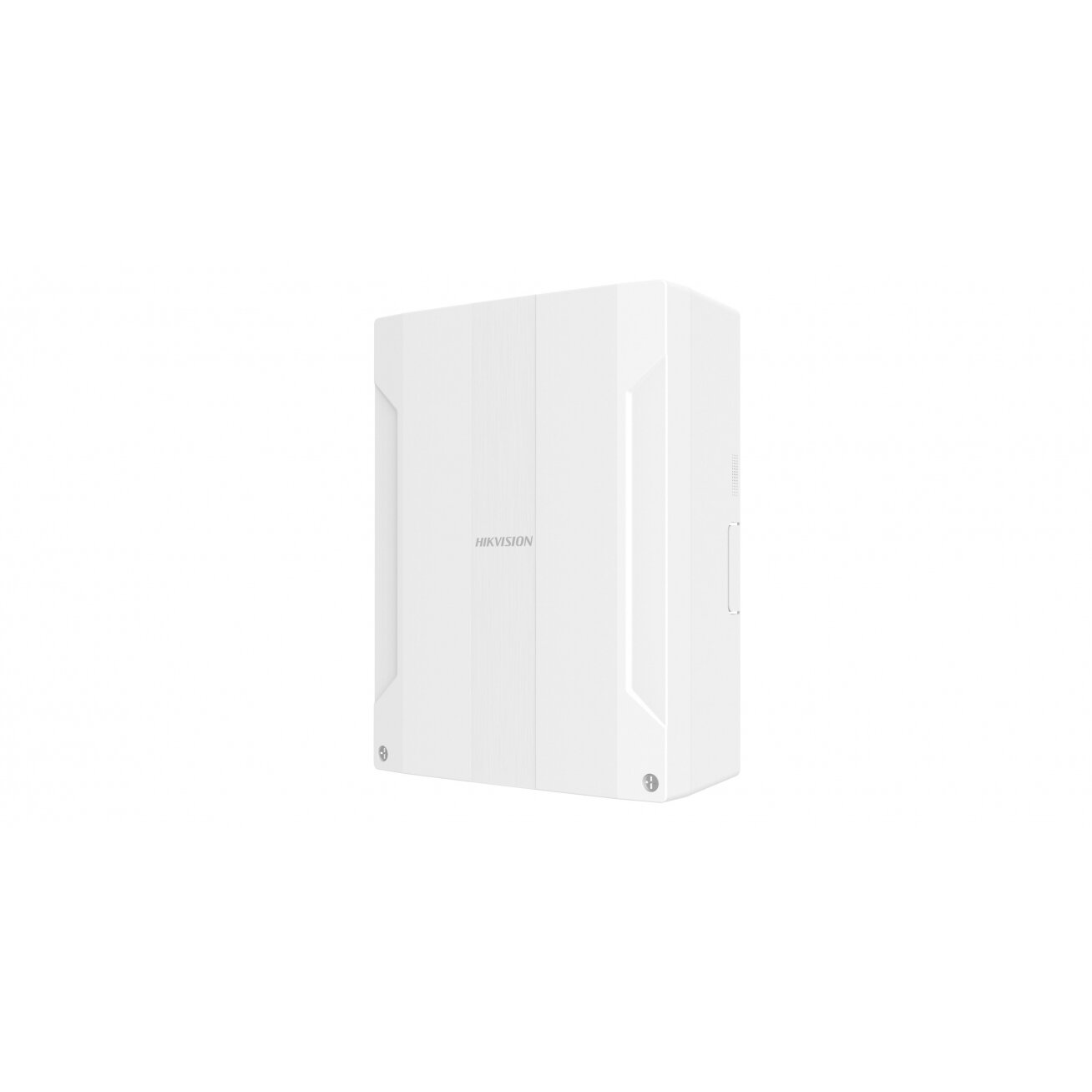

    Hikvision Control Panel AX PRO DS-PWA96-M2H-WE

    Inquire about this item
    Price 381.05 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision

    • Software features
    • Diagnostics via the APP or WebSupported
    • Installer1
    • Installer APP for programmingSupported
    • Onboard video clips4
    • Web server for maintenance (offline configuration)Supported
    • Wi-Fi standardSupported
    • Arm modesAway/Stay
    • Firmware upgradeAPP/Web Portal
    • Admin1
    • Wired networkSupported
    • Programming toolsHik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud
    • Forced arming with open zonesSupported
    • Memory log stored5000
    • User46
    • User APP for operatingSupported
    • Voice promptSupported
    • Area32
    • Automatic arm/disarm timersSupported
    • Hardware features
    • RS232 outputSupported
    • SIM slotDual
    • 3/4G on boardSupported
    • Tag reader built inSupported
    • Loudspeaker built inSupported
    • Electrical characteristics
    • Battery typeBuilt in on board Battery Li
    • Power supplyBuilt in power supply
    • Operation temperature-10 °C to +55 °C
    • Battery life span12 hours
    • Wireless transmission
    • RF frequency868Mhz
    • RF methodSupport
    • Wireless securityFrequency Hoping 128 AES Encryption
    • Display
    • LEDs statusArm/Disarm, Alarm, Tamper, Fault, Cloud, Power
    • General
    • Dimension(WxHxD)170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")
    • Shell materialPlastic
    • ColorWhite
    • 557.5 g(19.7 oz)
    • Device management
    • Tag48
    • PIR camSupported
    • Zones96 (up to 48 PIRCAMs)
    • Keypad8 (Including Tag reader)
    • Wireless sounder6
    • Wireless repeater4
    • Keyfob48
    • Report method
    • ARC protocol

      SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)

      Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)

      Supports video verification and remote control
