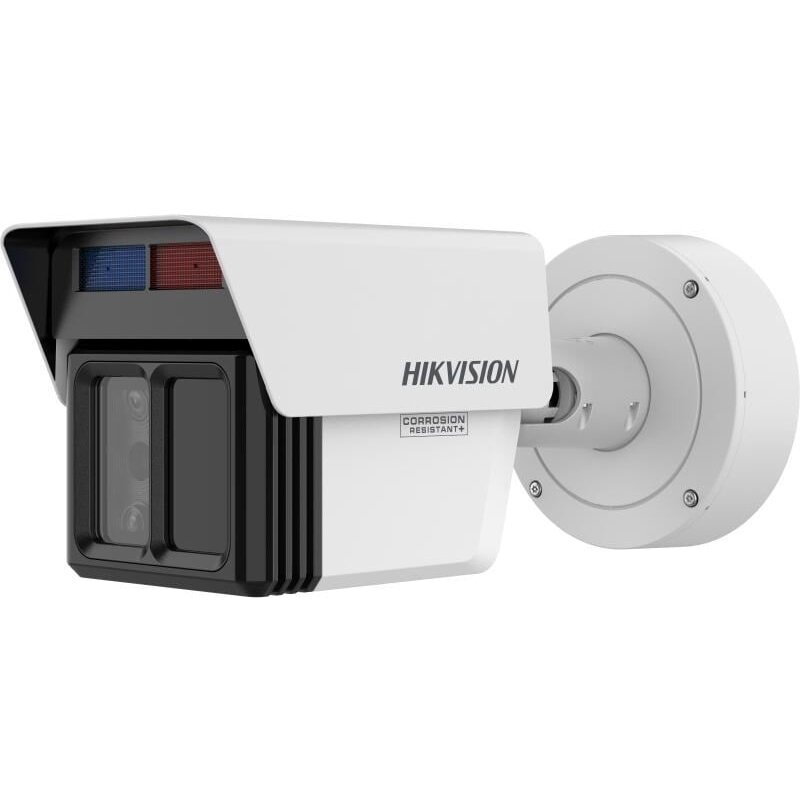

  • Hikvision Bullet iDS-2CD7T46G2/VX3-IS 4/12/25mm (4MP + 2×2MP, Guanlan AI, DarkFighter, LPR, IR 30m)

    Manufacturer
    Hikvision
    • General
    • Image Sensor1/2.7" Progressive Scan CMOS
    • Max. ResolutionChannel 1: 2688 × 1520; Channel 2: 1920 × 1080; Channel 3: 1920 × 1080
    • Min. IlluminationCh1: Color: 0.005 Lux @ (F1.2, AGC ON), B/W: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR; Ch2 & Ch3: Color: 0.005 Lux, B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
    • Shutter Time1 s to 1/100,000 s
    • Lens Aperture4 mm F1.6; 12 mm F1.6; 25 mm F2.8
    • Focal Length & FOV4 mm: H 82.5°, V 45.3°, D 96.1°; 12 mm: H 25.4°, V 14.4°, D 29.1°; 25 mm: H 13.0°, V 7.4°, D 14.9°
    • Iris TypeFixed
    • DORI Range4 mm: D: 77.6 m, O: 30.8 m, R: 15.5 m, I: 7.8 m; 12 mm: D: 171 m, O: 67.9 m, R: 34.2 m, I: 17.1 m; 25 mm: D: 331 m, O: 131.4 m, R: 66.2 m, I: 33.1 m
    • Supplement Light TypeIR
    • Supplement Light RangeUp to 120 m
    • Smart Supplement LightYes
    • IR Wavelength850 nm
    • Main Stream (Channel 1)50 Hz: 25 fps; 60 Hz: 30 fps (2688×1520, 2560×1440, 1920×1080, 1280×720)
    • Main Stream (Channel 2 & 3)50 Hz: 25 fps; 60 Hz: 30 fps (1920×1080, 1280×960, 1280×720)
    • Sub-Stream (All Channels)50 Hz: 25 fps (704×576, 640×480); 60 Hz: 30 fps (704×480, 640×480)
    • Third Stream (All Channels)50/60 Hz: 25/30 fps (1920×1080, 1280×960, 1280×720, 704×576/480, 640×480)
    • Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
    • Video Bit Rate32 Kbps to 8 Mbps
    • H.264 TypeBaseline/Main/High Profile
    • H.265 TypeMain Profile
    • Scalable Video Coding (SVC)Supported for H.264 and H.265
    • ROI8 fixed regions per stream
    • Bit Rate ControlCBR, VBR
    • Audio Bit Rate64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
    • Audio CompressionG.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
    • Audio Sampling Rate8 kHz, 16 kHz, 32 kHz, 48 kHz
    • Audio TypeMono
    • Environment Noise FilteringYes
    • ProtocolsTCP/IP, ICMP, HTTP(S), FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/6, UDP, Bonjour, SSL/TLS, WebSocket(s)
    • Simultaneous Live ViewUp to 20 channels
    • APIOpen Network Video Interface (Profiles S/G/T/M), ISAPI, SDK, ISUP
    • User/Host AccessUp to 32 users, 3 levels (admin/operator/user)
    • SecurityHTTPS, password, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, RTP over HTTPS, Audit Log, TLS 1.2/1.3, TPM 2.0, AES128/256
    • Network StorageNAS (NFS, SMB/CIFS), ANR, Hikvision card encryption & health detection
    • Client SoftwareiVMS-4200, Hik-Connect, Hik-Central
    • Web Browser SupportPlugin: IE10/11; Plugin-free: Chrome 57+, Firefox 52+, Edge 89+, Safari 11+
    • Image SettingsSaturation, brightness, contrast, sharpness, WB, AGC (via client/web)
    • Day/Night SwitchDay, Night, Auto, Schedule, Alarm Trigger
    • Wide Dynamic RangeDigital WDR
    • Image EnhancementBLC, HLC, 3D DNR, Distortion Correction, Defog
    • SNR≥ 52 dB
    • Privacy Mask8 programmable polygon regions
    • Image StabilizationEIS
    • Picture Overlay128×128 24-bit BMP logo overlay
    • Ethernet Interface1 × RJ45 10M/100M self-adaptive port
    • On-Board StorageMicroSD/SDHC/SDXC up to 1 TB
    • Audio Interface2 inputs (line in), 1 output (line out), 3.5 mm
    • Built-in MicrophoneYes (2 microphones)
    • Alarm Interface2 inputs, 2 outputs (max. 24 VDC, 1 A)
    • Built-in SpeakerYes (1 speaker)
    • RS-485Yes, half duplex, HIKVISION, Pelco-P/D
    • Reset KeyYes
    • Power Output12 VDC, max. 50 mA
    • Basic EventsMotion detection (human/vehicle), tampering, network/recording exceptions
    • Smart EventsScene change, audio exception, defocus, object left/removed, fast move, parking, gathering, loitering
    • Linkage ActionsFTP/NAS upload, email, alarm out, recording, capture, audible warning
    • Perimeter ProtectionLine crossing, intrusion, region entrance/exiting with human/vehicle classification, Guanlan AI model with 90% false alarm reduction
    • VCA Detection RangeUp to 120 m (standard setup)
    • MetadataIntrusion, line crossing, region entrance/exiting detection
    • Power Input12 VDC ± 20%, 2.1 A, max. 25.2 W; PoE IEEE 802.3at Type 2 Class 4 (42.5–57 V, max. 25.5 W)
    • MaterialMetal (front cover, body, bracket)
    • Dimensions128.9 × 139.5 × 337 mm (5.1" × 5.5" × 13.2")
    • Package Dimensions423 × 200 × 198 mm (16.65" × 7.87" × 7.8")
    • WeightWith -Y: 2500 g (5.51 lb), Without -Y: 2510 g (5.53 lb)
    • Weight with PackageWith -Y: 3470 g (7.65 lb), Without -Y: 3530 g (7.78 lb)
    • Storage Conditions–30°C to 65°C, ≤95% RH (non-condensing)
    • Startup/Operating ConditionsWith -H: –40°C to 65°C; Without -H: –30°C to 65°C, ≤95% RH
    • Language Support33 languages including English, Russian, German, Spanish, Chinese, etc.
    • General FeaturesHeartbeat, mirror, password protection, one-key reset
    • Heater-Y: Yes
    • Device ManagementSupports alarm box DS-FM2466 (adds 6 inputs & 6 outputs)
    • EMC CertificationCE-EMC, RCM, ICES-003
    • Environmental ComplianceCE-RoHS, WEEE, REACH
    • Protection RatingsIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
    • Safety StandardsCB: IEC 62368-1, CE-LVD, LOA
    • Anti-Corrosion-Y: NEMA 4X (NEMA 250-2018)
    • Other NotesPVC FREE
