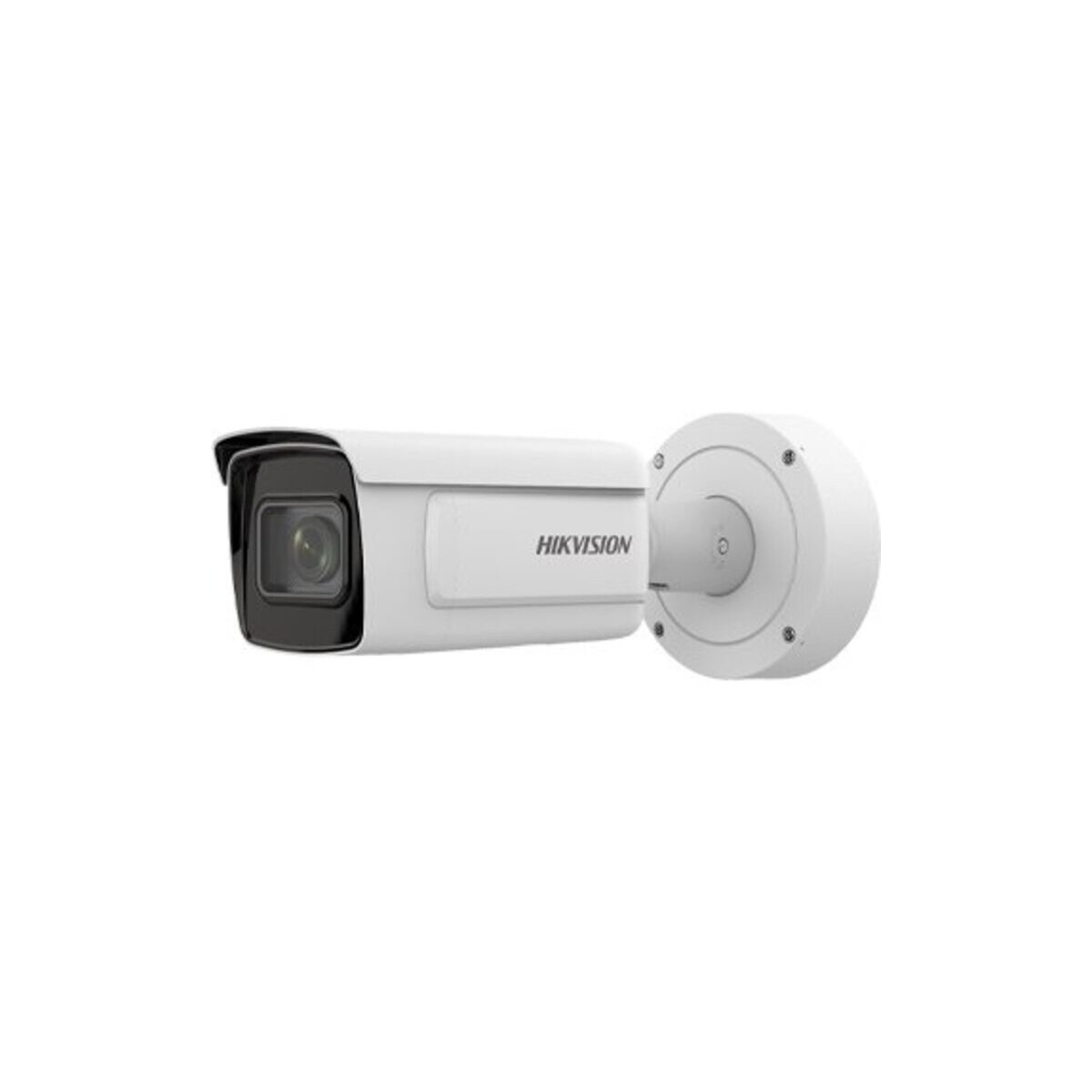

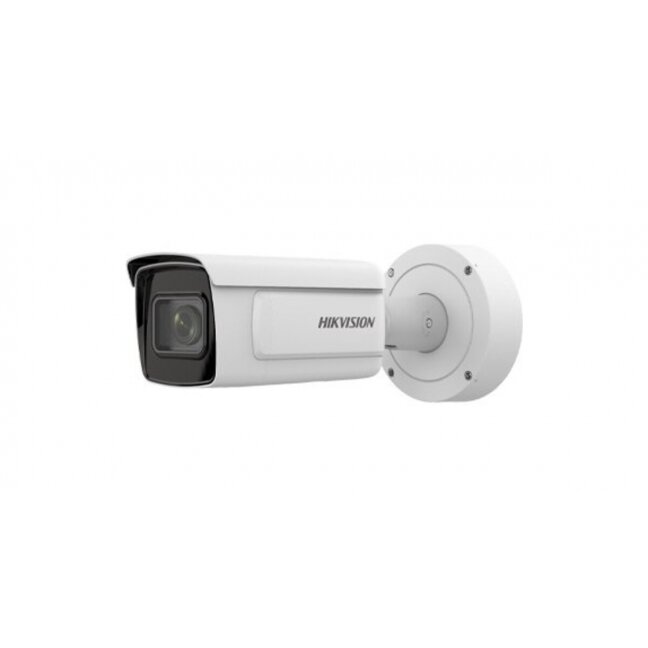

Hikvision bullet iDS-2CD7A46G0-IZHS F8-32
ManufacturerHikvision-
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Min. IlluminationColor: 0.001 Lux @ (F1.2, AGC ON); B/W: 0.0003 Lux @ (F1.2, AGC ON)
- Shutter Speed1 s to 1/100,000 s
- Slow ShutterYes
- P/NP/N
- Wide Dynamic Range140 dB
- Day & NightIR cut filter
- Power-off MemoryYes
- Lens
- FocusAuto, semi-auto, manual
- Lens Type & FOV
2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48°
8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3
- Aperture
2.8 to 12 mm: F1.2 to F2.5
8 to 32 mm: F1.7 to F1.73
- Lens MountIntegrated
- Blue Glass ModuleBlue glass module to reduce ghost phenomenon.
- P-IrisYes
- Illuminator
- IR Range
2.8 to 12 mm: 50 m
8 to 32 mm: 100 m
- Wavelength850 nm
- Smart Supplement LightYes
- Video
- Max. Resolution2680 ×1520
- Main Stream
50Hz: 25fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 30fps (2680 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
- Third Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fourth Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Fifth Stream
50Hz: 25fps (704 × 576, 640 × 480)
60Hz: 30fps (704 × 480, 640 × 480)
- Custom Stream
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video Compression
Main stream: H.265+/H.265/H.264+/ H.264
Sub-stream/Third stream/Fourth stream/Fifth stream/custom stream:H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main Stream supports
- H.265+Main Stream supports
- Bit Rate ControlCBR/VBR
- Stream TypeMain stream/Sub-stream/third stream/fourth stream/fifth stream/custom stream
- Scalable Video Coding (SVC)H.265 and H.264 support
- Region of Interest (ROI)4 fixed regions for each stream
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/8-320Kbps(MP3)
- Audio TypeMono sound
- Network
- Simultaneous Live ViewUp to 20 channels
- APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Smooth StreamingYes
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log，TLS 1.2
- Network Storage
microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome 41.0+, Firefox 30.0+
- Image
- Smart IRThe IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
- Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In
- Target CroppingYes
- Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
- Image EnhancementBLC, HLC, 3D DNR, Defog, EIS, Distortion Correction
- Image Parameters SwitchYes
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- SNR≥52 dB
- Interface
- Alarm 2 input, 2 outputs (max. 24 VDC, 1 A)
- Audio
Without -R:
1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max.output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- RS-485With -Y: 1 RS-485(half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Video Output1 Vp-p Composite Output(75Ω/CVBS)(For debugging only)
- On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
- Power OutputWith -Y: 12 VDC, max. 200 mA (supported by all power supply types)
- HeaterYes
- Event
- Basic Event Motion detection, video tampering alarm, vibration detection, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Scene change detection, audio exception detection, defocus detection
- CountingYes
- Deep Learning Function
- Face Recognition
Detects up to 30 faces simultaneously;
Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°;
Up to 3 face libraries with up to 30000 faces each are configurable;
Recognizes face identity via face modeling, grading and comparing to those in face library;
Supports face library encryption.
- Multi-target-type Detection
Supports simultaneous detection of human body and face
Gets 8 face features and 13 human body features
- Face Counting
Supports entering/exiting counting (track 30 targets simultaneously);
Supports facial recognition;
Supports 24-hour dynamic deduplication and face library deduplication (up to 3 face libraries with up to 30000 faces);
Supports reporting alarms when detecting the face is the same as that in the face library.
- Hard Hat Detection
Detects up to 30 human targets simultaneously
Supports up to 4 shield regions
- Queue Management
Detects queuing-up people number, and waiting time of each person
Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
Supports raw data export for further analysis
- Premier Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
- General
- Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
Trigger recording: memory card, network storage, pre-record and post-record
Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
- Online UpgradeYes
- Dual BackupYes
- Firmware VersionV5.5.121
- Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil),Ukrainian
- General FunctionAnti- flicker, 5 streams and up to 5 custom streams, EPTZ, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
- Software ResetYes
- Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Power Supply12 VDC ± 20%, three-core terminal block, reverse polarity protection; PoE：802.3at, Type 2 Class 4
- Power Consumption and Current
12 VDC, 1.33 A, max. 16.0 W
PoE: (802.3at, 42.5V-57V), 0.43 A to 0.31 A, max. 18.0 W
- Power InterfaceThree-core terminal block
- Screw MaterialWith –Y: SUS316, without –Y: SUS304
- Camera Dimension
Without -Y: Ø144 × 347 mm (Ø5.7″ × 13.7″)
With -Y: Ø140 × 351 mm (Ø5.5″ × 13.8″)
- Package Dimension405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
- Camera Weight1920 g (4.2 lb.)
- With Package Weight3060 g (6.7 lb.)
- Metadata
- MetadataMetadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, face capture and queue management are supported.
- Approval
- ClassClass B
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1:2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2:2013); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
- Automotive and RailwayWith -R: EN50121-4
- Anti-Corrosion ProtectionWith -Y: NEMA 4X(NEMA 250-2018)
- OtherWith -Y: PVC FREE
