  •   Hikvision bullet DS-2CV1021G0-IDW1(D) F2.8

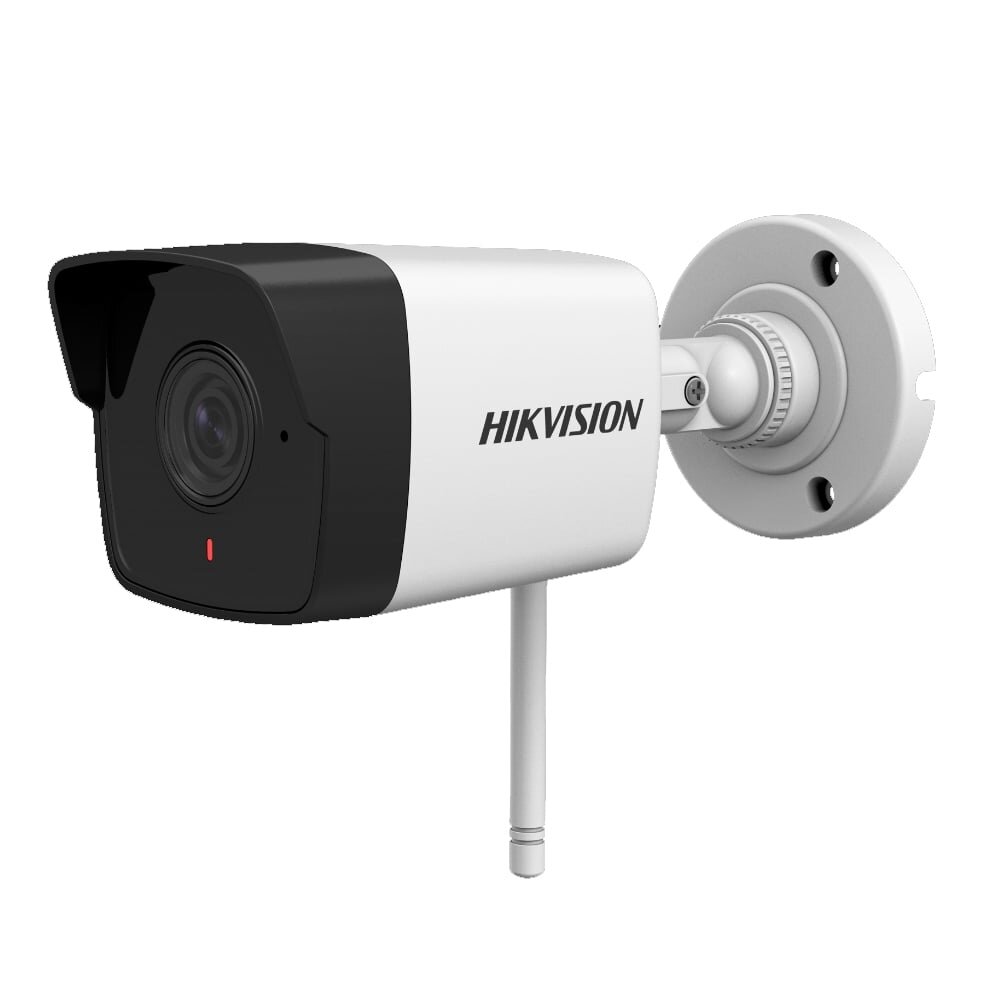

    Hikvision bullet DS-2CV1021G0-IDW1(D) F2.8

    Inquire about this item
    Price 98.95 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • Camera
    Image Sensor1/2.8" Progressive Scan CMOS
    Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.028Lux  @ (F2.0, AGC ON)
    Shutter Speed1/3 s to 1/100,000  s
    Slow ShutterYes
    Auto-IrisNo
    Day & NightIR Cut Filter
    Digital Noise Reduction3D DNR
    WDRDWDR
    3-Axis AdjustmentPan: 0° to 360°,  tilt: -90° to 90°, rotate: 0° to 90°
    Lens
    Focal length2.8/4 mm
    ApertureF2.0
    FocusFixed
    FOV2.8 mm, horizontal FOV: 114.5°,  vertical FOV: 62°, diagonal FOV: 135.5° 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°,  diagonal FOV: 102.5°
    Lens MountM12
    IR
    IR RangeUp to 30 m
    Wavelength850 nm
    Compression  Standard
    Video CompressionMain stream: H.264
    Sub-stream: H.264,  MJPEG
    H.264 TypeBaseline Profile/Main Profile
    H.264+Main stream supports
    H.265 TypeNo
    H.265+No
    Video Bit Rate32 Kbps to 8 Mbps
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
    Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32  to 160Kbps(MP2L2)
    Max. Resolution1920  × 1080
    Main Stream50Hz: 25fps (1920 × 1080,  1280  × 960,  1280  × 720)
    60Hz: 30fps (1920 × 1080,  1280  × 960,  1280  × 720)
    Sub Stream50Hz: 25fps (640 × 480,  640 × 360,  320 × 240)
    60Hz: 30fps (640 × 480,  640 × 360,  320 × 240)
    Image SettingRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
    Image EnhancementBLC, 3D DNR
    Day/Night SwitchDay, night, auto, scheduled
    Network
    Network StorageSupport micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
    Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
    ProtocolsTCP/IP, ICMP, HTTP,  HTTPS, FTP,  DHCP,  DNS, DDNS, RTP,  RTSP, RTCP,  NTP,  UPnP, SMTP, IGMP,  IPv6,
    UDP, QoS, Bonjour
    General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
    Firmware VersionV5.5.70
    APIONVIF (PROFILE S, PROFILE G), ISAPI
    Simultaneous Live ViewUp to 6 channels
    User/HostUp to 32 users
    3 levels: Administrator, Operator and User
    ClientiVMS-4200,  iVMS-4500,  iVMS-5200, Hik-Connect
    Web BrowserIE8+, Chrome 31.0-44,  Firefox 30.0-51, Safari 8.0+
    Interface
    Communication Interface1 RJ45 10M/100M  self-adaptive Ethernet port
    Audio1 Built-in mic, mono sound
    On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
    Reset ButtonYes
    Wi-Fi
    Wireless StandardsIEEE 802.11b/g/n
    Frequency Range2.4 GHz to 2.4835  GHz
    Channel Bandwidth20 MHz/40 MHz
    Protocols802.11b:  CCK, DQPSK, DBPSK
    802.11g/n:  64-QAM,  16-QAM, QPSK, BPSK
    Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
    Transfer Rates11b: 11 Mbps, 11g: 54 Mbps, 11n: up to 150 Mbps
    Wireless RangeUp to 50 m (The performance varies based on actual environment)
    Audio
    Environment Noise FilteringYes
    Audio Sampling Rate8 kHz/16 kHz
    General
    Operating Conditions-30 °C to +60 °C (-22°F to +140  °F), Humidity 95% or less (non-condensing)
    Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug
    Power Consumption and Current12 VDC, 0.4 A, max. 5 W
    Ingress ProtectionIP66
    MaterialFront cover: metal, back cover: plastic
    DimensionsCamera: 99 mm × 68 mm × 66 mm (3.9" × 2.7" × 2.6")
    With package: 172  mm × 110 mm × 99 mm (6.8" × 4.3" × 3.9")
    WeightCamera: 272 g (0.6 lb.)
    With package: 517  g (1.1 lb.)
