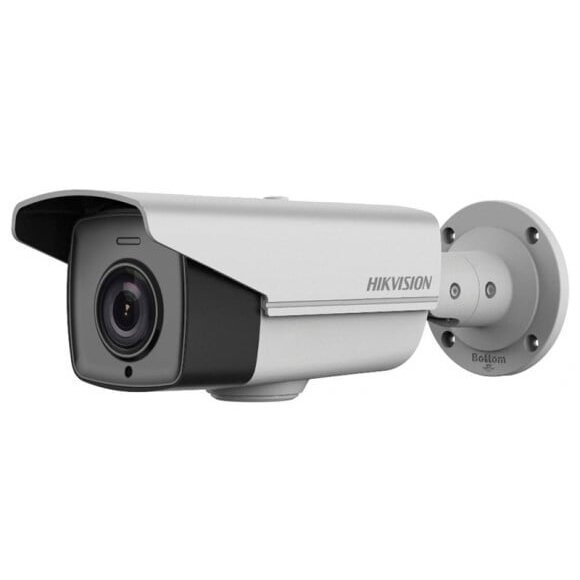

Hikvision bullet DS-2CE16D9T-AIRAZH

Image Sensor:

2MP CMOS Image Sensor

Signal System:

PAL/NTSC

Effective Pixels:

1944(H)×1092(V)

Min. Illumination:

0.01Lux @ (F1.2,AGC ON),0 Lux with IR

Shutter Time:

1/25(1/30) s to 1/50,000 s

Lens:

5-50mm motorized VF lens, Angle of view: 59.8°-6.2°

Adjustment Range:

Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

120dB

Video Frame Rate:

1080p@25fps/1080p@30fps

HD Video Output:

1 Analog HD output

Synchronization:

Internal Synchronization

CVBS Output:

1Vp-p Composite Output(75Ω/BNC)

S/N Ratio:

More than 62 dB

Up the Coax:

Support

Camera ID:

On/off (15 characters, position programmable)

Auto White Balance:

ATW/ AWC-SET/ Indoor/ Outdoor/ Manual

Private Mask:

On/Off, maximum 8 zones

Motion Detection:

On/Off, maximum 4 zones

BLC:

On/Off

AGC:

Support

Anti-flicker:

On/ Off

Language:

English/Chinese

Function:

Eclipse, Digital noise reduction, Digital zoom(62x), Slow shutter, Mirror, Defog, Defect pixel
correction, SMART D-ZOOM

Scene:

Indoor, Outdoor, Indoor1, LOW-LIGHT

Operating Conditions:

-40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)

Power Supply:

12 VDC±15%, 24 VAC±15%

Power Consumption:

Max. 20W

Weather Proof:

IP66

Heater:

Support

IR Range:

Up to 120m

Communication :

Up the coax
Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)

Dimension:

313.5*100.8*107.3

Weight:

1700g
