  •   Hikvision bullet DS-2CD2T66G2-I4 (C) F4 (white, 6 MP, 60 m. IR, AcuSense)

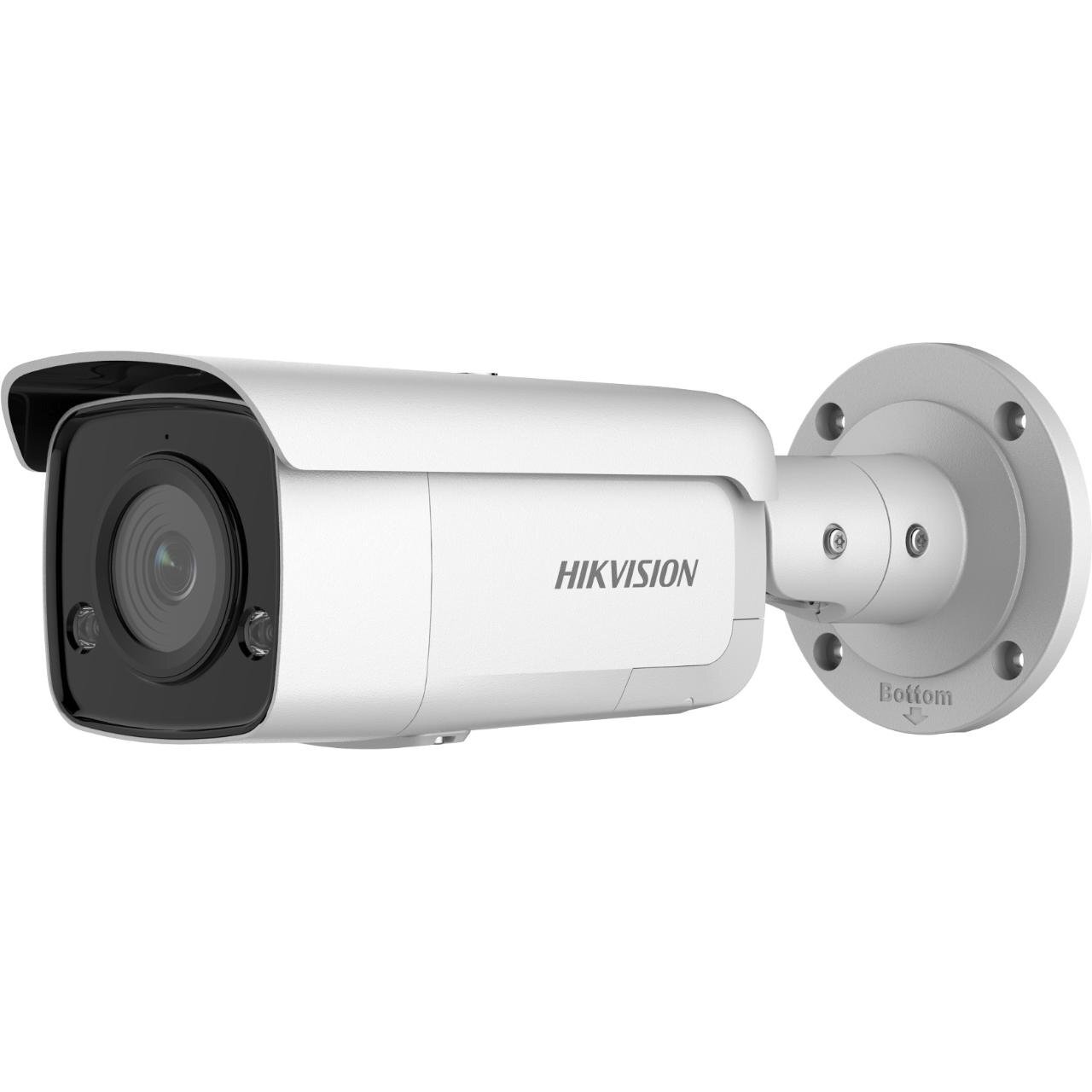

    Hikvision bullet DS-2CD2T66G2-I4 (C) F4 (white, 6 MP, 60 m. IR, AcuSense)

    Inquire about this item
    Price 289.74 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • Camera
    • Image Sensor 1/2.4" Progressive Scan CMOS
    • Max. Resolution 3200 × 1800
    • Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
    • Shutter Time 1/3 s to 1/100,000 s
    • Day & Night IR cut filter
    • Angle Adjustment Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
    • Lens
    • Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
    • Focal Length & FOV

      2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

      4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°

      6 mm, horizontal FOV 51°, vertical FOV 26°, diagonal FOV 59°
    • Lens Mount M12
    • Iris Type Fixed
    • Aperture F1.6
    • DORI
    • DORI

      2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m

      4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m

      6 mm: D: 164 m, O: 65 m, R: 32 m, I: 16 m
    • Illuminator
    • Supplement Light Type IR
    • Supplement Light Range -2I: up to 60 m; -4I: up to 80 m
    • Smart Supplement Light Yes
    • IR Wavelength 850 nm
    • Video
    • Main Stream

      50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

      60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • Sub-Stream

      50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)

      60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
    • Third Stream

      50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

      60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),

      *Third stream is supported under certain settings.
    • Video Compression

      Main stream: H.265+/H.265/H.264+/H.264,

      Sub-stream: H.265/H.264/MJPEG,

      Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
    • Video Bit Rate 32 Kbps to 16 Mbps
    • H.264 Type Baseline Profile,Main Profile,High Profile
    • H.265 Type Main Profile
    • Bit Rate Control CBR,VBR
    • Scalable Video Coding (SVC) H.264 and H.265 encoding
    • Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
    • Network
    • Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP
    • Simultaneous Live View Up to 6 channels
    • API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP
    • User/Host

      Up to 32 users

      3 user levels: administrator, operator, and user
    • Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log，TLS 1.1/1.2/1.3，host authentication (MAC address)
    • Network Storage

      NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),

      Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    • Client iVMS-4200,Hik-Connect,Hik-Central
    • Web Browser

      Plug-in required live view: IE10+,

      Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

      Local service: Chrome 57.0+, Firefox 52.0+
    • Image
    • Image Parameters Switch Yes
    • Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
    • Day/Night Switch Day,Night,Auto,Schedule
    • Wide Dynamic Range (WDR) 120 dB
    • SNR ≥ 52 dB
    • Image Enhancement BLC,HLC,3D DNR
    • Privacy Mask 4 programmable polygon privacy masks
    • Interface
    • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board Storage

      Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
    • Reset Key Yes
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
    • Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
    • Deep Learning Function
    • Face Capture Yes
    • General
    • Power

      -2I:

      12 VDC, 0.63 A, max. 7.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

      PoE: IEEE 802.3af, max. 9 W

      -4I:

      12 VDC, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

      PoE: IEEE 802.3af, max. 12 W
    • Dimension Ø105 mm × 290 mm (Ø4.1" × 11.4")
    • Package Dimension 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
    • Weight Approx. 1085 g (2.4 lb.)
    • With Package Weight Approx. 1604 g (3.5 lb.)
    • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • General Function Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker
    • Approval
    • EMC

      FCC: 47 CFR Part 15, Subpart B,

      CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

      RCM: AS/NZS CISPR 32: 2015,

      KC: KN32: 2015, KN35: 2015
    • Safety

      UL: UL 62368-1,

      CB: IEC 62368-1: 2014+A11,

      CE-LVD: EN 62368-1: 2014/A11: 2017
    • Environment

      CE-RoHS: 2011/65/EU,

      WEEE: 2012/19/EU,

      Reach: Regulation (EC) No 1907/2006
    • Protection IP67: IEC 60529-2013
