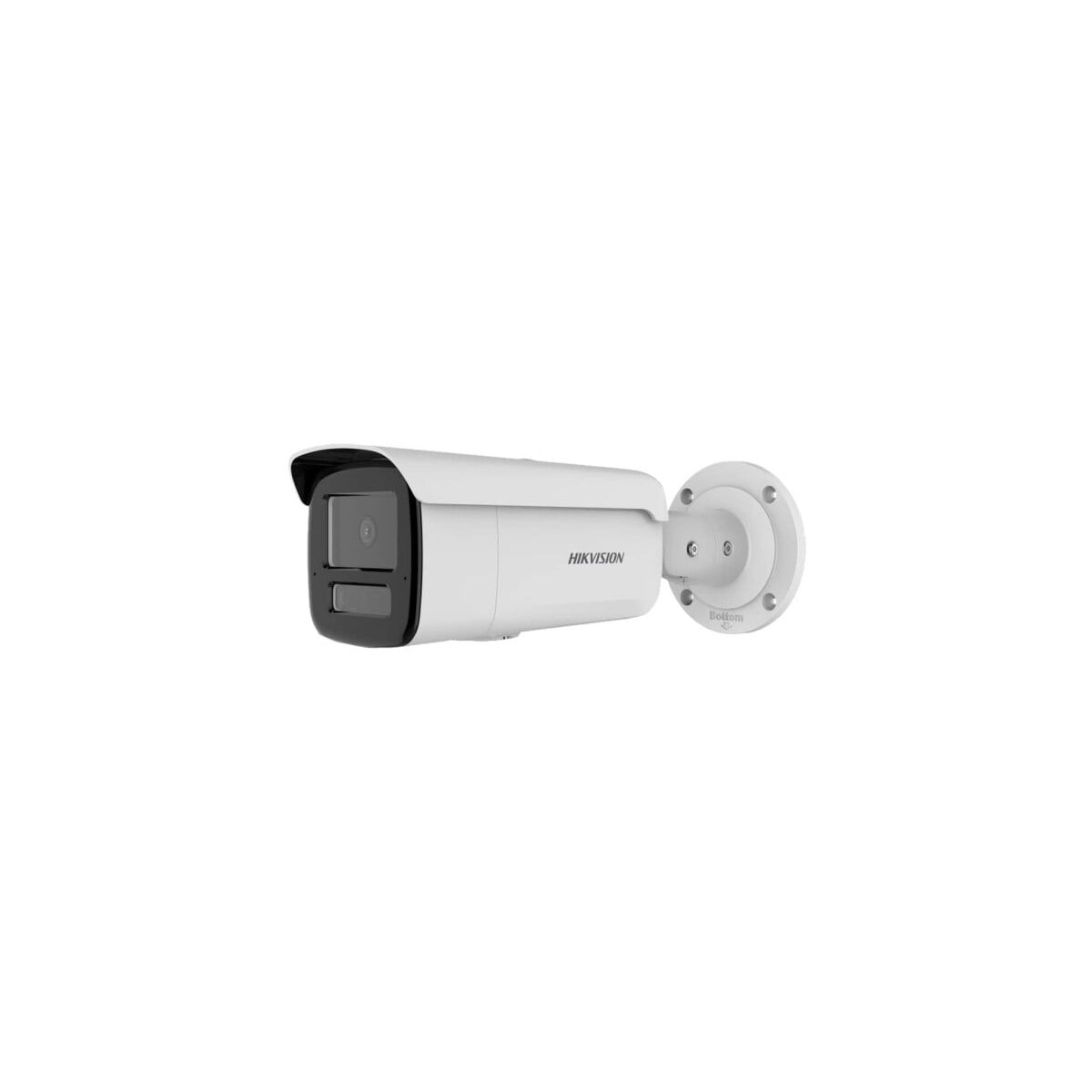

  •   Hikvision Bullet DS-2CD2T63G2-4LI2U F2.8 (white, 6MP, AcuSense, IR+LED 80 m)

    Hikvision Bullet DS-2CD2T63G2-4LI2U F2.8 (white, 6MP, AcuSense, IR+LED 80 m)

    Inquire about this item
    Price 284.70 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    • General
    • Image Sensor1/2.4" Progressive Scan CMOS
    • Max. Resolution3200 × 1800
    • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
    • Shutter Time1/3 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
    • Lens TypeFixed focal lens, 2.8 mm, 4 mm, and 6 mm optional
    • Focal Length & FOV2.8 mm: horizontal 105°, vertical 55°, diagonal 127°; 4 mm: horizontal 78°, vertical 38°, diagonal 96°; 6 mm: horizontal 51°, vertical 26°, diagonal 59°
    • Lens MountM12
    • Iris TypeFixed
    • ApertureF1.6
    • Depth of Field2.8 mm: 1.8 m to ∞; 4 mm: 3.1 m to ∞; 6 mm: 6.4 m to ∞
    • DORI2.8 mm: D 76 m, O 30 m, R 15 m, I 7 m; 4 mm: D 115 m, O 45 m, R 23 m, I 11 m; 6 mm: D 164 m, O 65 m, R 32 m, I 16 m
    • Supplement Light TypeIR, White Light
    • Supplement Light Range-2LI/-2LI2U: up to 60 m; -4LI/-4LI2U: up to 80 m
    • Smart Supplement LightYes
    • IR Wavelength850 nm
    • Main Stream50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    • Third Stream50/60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), supported under certain settings
    • Video CompressionMain: H.265/H.264/H.264+/H.265+; Sub: H.265/H.264/MJPEG; Third: H.265/H.264
    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeBaseline, Main, High Profile
    • H.265 TypeMain Profile
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Bit Rate ControlCBR, VBR
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Target CroppingYes
    • Audio Compression-2LI2U/-4LI2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Bit Rate-2LI2U/-4LI2U: 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
    • Audio Sampling Rate-2LI2U/-4LI2U: 8 kHz/16 kHz/32 kHz/48 kHz
    • Environment Noise Filtering-2LI2U/-4LI2U: Yes
    • Network ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
    • Simultaneous Live ViewUp to 6 channels
    • APIONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
    • SecurityPassword protection, complex password, HTTPS encryption, IP address filter, security audit log, basic/digest authentication, TLS 1.1/1.2/1.3, WSSE authentication
    • User/HostUp to 32 users; administrator, operator, user
    • ClientiVMS-4200, Hik-Connect, Hik-Central
    • Network StorageNAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR); memory card encryption and health detection supported with high-end Hikvision card
    • Web BrowserIE 11 (plug-in required); plug-in free: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
    • Image Parameters SwitchYes
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Image SettingsRotate mode
    • Wide Dynamic Range (WDR)120 dB
    • SNR≥ 52 dB
    • Image EnhancementBLC, HLC, 3D DNR
    • Privacy Mask8 programmable polygon privacy masks
    • Ethernet Interface1 RJ45 10/100 Mbps self-adaptive Ethernet port
    • On-Board StoragemicroSD/microSDHC/microSDXC up to 512 GB
    • Reset KeyYes
    • Built-in Microphone-2U: Arrayed dual-microphone
    • Basic EventMotion detection (human/vehicle), video tampering, exception
    • Smart EventFace detection
    • LinkageFTP/NAS/memory card upload, notify center, email, trigger recording/capture
    • Perimeter ProtectionLine crossing, intrusion (human/vehicle)
    • Power-2LI/-2LI2U: 12 VDC ±25%, 0.66 A, max. 8.0 W; PoE 802.3af Class 3, max. 9.5 W; -4LI/-4LI2U: 12 VDC ±25%, 0.87 A, max. 10.5 W; PoE 802.3af Class 3, max. 12 W
    • MaterialMetal
    • Dimension88.7 mm × 93.1 mm × 286.7 mm (3.5" × 3.7" × 11.3")
    • Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
    • WeightApprox. 1150 g (2.5 lb.)
    • With Package WeightApprox. 1640 g (3.6 lb.)
    • Storage Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
    • Language33 languages including English, German, French, Spanish, Russian, Chinese, Japanese, Korean
    • General FunctionHeartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
    • EMC ApprovalCE-EMC EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3; RCM; IC; KC
    • SafetyIEC/EN 62368-1; BIS IS 13252; LOA IEC/EN 60950-1
    • EnvironmentCE-RoHS, WEEE, REACH
    • ProtectionIP67
