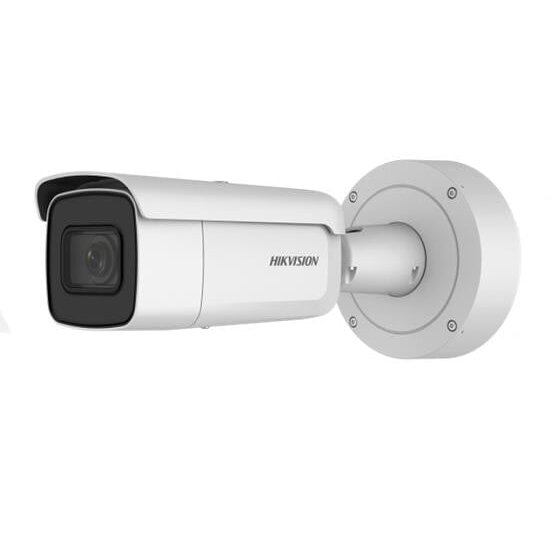

  •   Hikvision bullet DS-2CD2646G2-IZS (white, 4 MP, 60 m. IR, AcuSense)

    Hikvision bullet DS-2CD2646G2-IZS (white, 4 MP, 60 m. IR, AcuSense)

    Inquire about this item
    Price 453.88 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • TitleDescription
    Image Sensor1/2.7" Progressive Scan CMOS
    Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON)
    Day & NightICR Cut
    Shutter Speed1/3 s to 1/100,000 s
    Slow ShutterYes
    Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
    P/NP/N
    Wide Dynamic Range120 dB
    Power-off MemoryYes
    Lens Type & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
    ApertureF1.4
    Lens MountØ14
    Aperture TypeFixed
    FocusAuto
    IR RangeUp to 60 m
    Wavelength850 nm
    Smart Supplement LightYes
    Supplement LightIR
    Max. Resolution2592 × 1944
    Main Stream50Hz: 20fps (2592 × 1944) 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2592 × 1944) 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
    Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
    Third Stream50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
    Video CompressionMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
    Video Bit Rate32 Kbps to 8 Mbps
    H.264 TypeBaseline Profile/Main Profile/High Profile
    H.265 TypeMain Profile
    H.264+Main Stream supports
    H.265+Main Stream supports
    Bit Rate ControlCBR/VBR
    Scalable Video Coding (SVC)Yes
    Region of Interest (ROI)1 fixed regions for each stream
    Environment Noise FilteringYes
    Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
    Audio Bit Rate64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
    Simultaneous Live ViewUp to 6 channels
    APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
    ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    Smooth StreamingYes
    User/HostUp to 32 users. 3 user levels: administrator, operator and user
    SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
    Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
    ClientiVMS-4200, Hik-Connect, Hik-Central
    Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    Day/Night SwitchDay, Night, Auto, Schedule
    Image EnhancementBLC, HLC, 3D DNR
    Image Parameters SwitchYes
    Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
    Alarm1 input, 1 output (max. 24 VAC/24 VDC @500 mA)
    Audio1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 100 Ω, interface type: non-equilibrium
    On-board StorageBuilt-in micro SD slot, up to 256 GB
    Hardware ResetYes
    Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
    Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
    Face CaptureYes
    Premier ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection
    Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    Power Supply12 VDC ± 25%, reverse polarity protection PoE：802.3at, class 4
    Power Consumption and Current12 VDC, 1.12 A, max. 13.5 W PoE: (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, max. 15 W
    Power InterfaceTwo-core terminal plug
    MaterialADC12
    Camera DimensionØ144 × 333 mm (5.7" × 13.1")
    Package Dimension385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
    Camera Weight1450 g (3.2 lb.)
    With Package Weight2589 g (5.7 lb.)
    Linkage MethodUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning *Note: External device is required.
    Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    General FunctionAnti- flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
    Software ResetYes
    EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
    ProtectionIngression protection: IP66 (IEC 60529-2013), IK10 (IEC 62262:2002)
