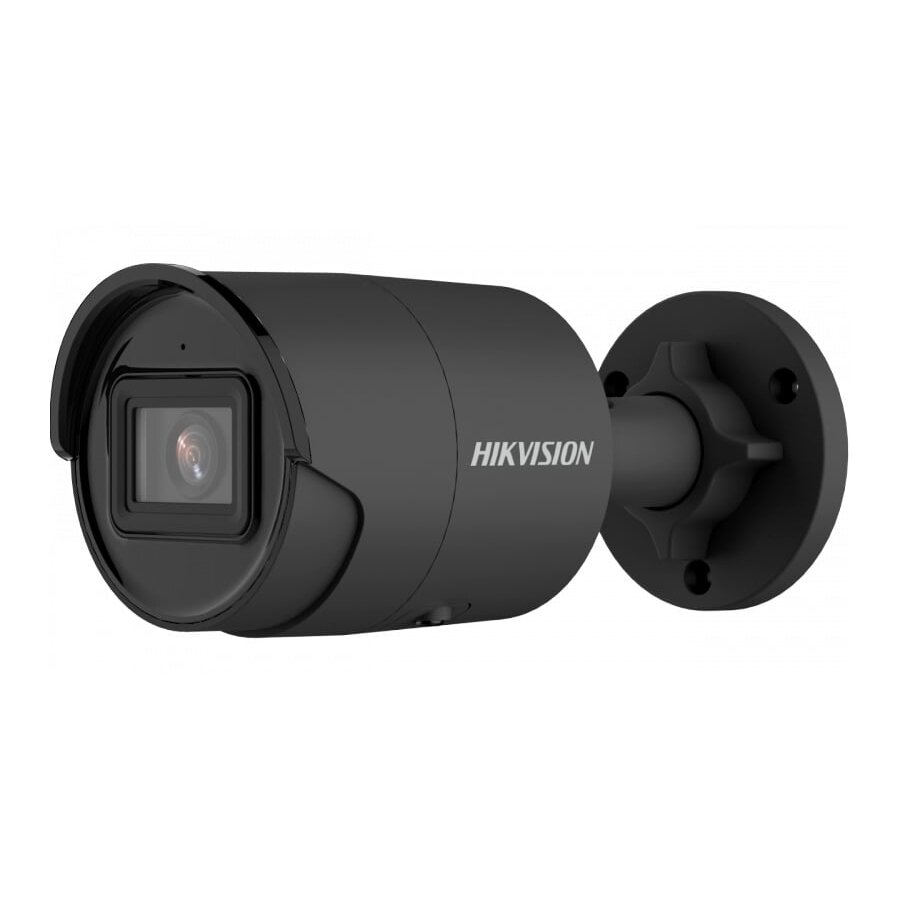

  •   Hikvision bullet DS-2CD2086G2-IU F2.8 (black, 8 MP, 40 m. IR, AcuSense)

    Hikvision bullet DS-2CD2086G2-IU F2.8 (black, 8 MP, 40 m. IR, AcuSense)

    Inquire about this item
    Price 281.97 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

  • TitleDescription
    Image Sensor1/1.8" Progressive Scan CMOS
    Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR
    Shutter Speed1/3 s to 1/100,000 s
    Slow ShutterYes
    P/NYes
    Wide Dynamic Range120dB
    Day & NightICR Cut
    Angle AdjustmentPan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°
    Power-off MemoryYes
    Lens Type & FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120° 4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92° 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59°
    ApertureF1.6
    Lens MountM16
    IR Range30 m
    Wavelength850nm
    Smart Supplement LightYes
    Max. Resolution3840 × 2160
    Main Stream50Hz: 20fps (3840 × 2160, 3072 × 1728) 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160, 3072 × 1728) 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) * When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams.
    Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
    Third Stream50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
    Video Bit Rate32 Kbps to 16 Mbps
    H.264 TypeBaseLine Profile, Main Profile, High Profile
    H.265 TypeMain Profile
    Stream TypeMain stream/sub-stream/third stream
    Scalable Video Coding (SVC)Yes
    Region of Interest (ROI)1 fixed region for each stream
    Environment Noise Filtering-U: Yes
    Audio Sampling Rate-U: 8 kHz,16 kHz, 32 kHz, 44.1 kHz, 48 kHz
    Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3
    Audio Bit Rate-U: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
    Audio Type-U: Mono sound
    Simultaneous Live ViewUp to 6 channels
    APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome
    ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
    Smooth StreamingYes
    User/HostUp to 32 users. 3 user levels: administrator, operator and user
    SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2
    Network StoragemicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
    ClientiVMS-4200, Hik-Connect, Hik-Central
    Web BrowserPlug-in required live view: IE 8+,Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
    Day/Night SwitchDay/Night/Auto/Schedule
    Image EnhancementBLC, HLC, 3D DNR
    Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by clcient software or web browser
    AudioBuilt-in microphone
    On-board StorageBuilt-in micro SD, up to 256 GB
    Hardware ResetYes
    Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
    Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
    Premier ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)
    Web Client Language32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
    General FunctionMirror, password protection, privacy mask, watermark, IP address filter, one-key reset, anti-flicker, three streams, heartbeat
    Software ResetYes
    Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
    Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
    Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
    Power Supply12 VDC ± 25%; PoE: (802.3af, class 3)
    Power Consumption and Current12 VDC, 0.5 A, max. 6 W PoE: (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W
    Power InterfaceΦ5.5 mm coaxial power plug
    MaterialMetal
    Camera DimensionΦ70 ×161.7 mm (Φ2.76" × 6.37")
    Package Dimension216 × 121 × 118 mm (8.5" × 4.8" ×4.6")
    Camera Weight500 g (1.1 lb.)
    With Package Weight710 g (1.6 lb.)
    Protection-I model: Ingress protection: IP67 (IEC 60529-2013) -IU model: Ingress protection: IP66 (IEC 60529-2013)
    EMCCE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
    SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
    EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
