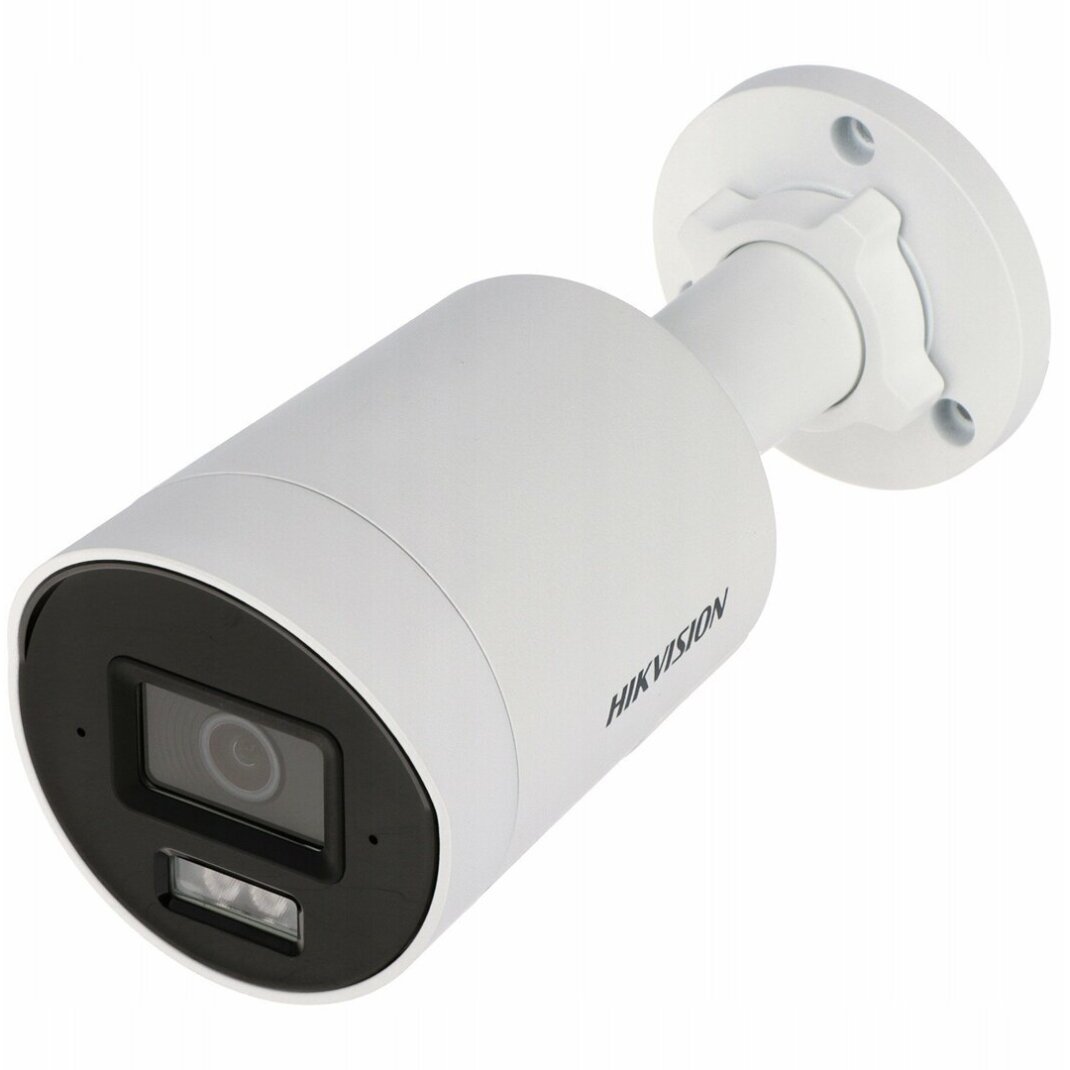

  •   Hikvision bullet DS-2CD2043G2-LI2U/SL F2.8 (white, 4 MP, 40 m IR+LED, AcuSense)

    Hikvision bullet DS-2CD2043G2-LI2U/SL F2.8 (white, 4 MP, 40 m IR+LED, AcuSense)

    Inquire about this item
    Price 211.73 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision
    • Approval
    • EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
    • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
    • ProtectionIP67: IEC 60529-2013
    • Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
    • Audio
    • Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
    • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
    • Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
    • Environment Noise FilteringYes
    • Camera
    • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
    • Day & NightIR cut filter
    • Image Sensor1/2.9" Progressive Scan CMOS
    • Max. Resolution2688 × 1520
    • Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
    • Shutter Time1/3 s to 1/100,000 s
    • DORI
    • DORI2.8 mm, D: 61 m, O: 24 m, R: 12 m, I: 6 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 128 m, O: 50 m, R: 25 m, I: 12 m
    • Deep Learning Function
    • Perimeter Protection Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)
    • Event
    • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
    • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning,flashing light
    • Smart Event Face detection
    • General
    • DimensionØ74.4 mm × 176.3 mm (Ø2.93" × 6.94")
    • Flashing LightSRB models: Red and Blue Light Other models: White Light
    • General FunctionHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
    • Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
    • MaterialMetal
    • Package Dimension234 mm × 120 mm × 117 mm (9.21" × 4.72" × 4.61")
    • Power12 VDC ± 25%, 1 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 16 W
    • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
    • WeightApprox. 515 g (1.1 lb.)
    • With Package WeightApprox. 760 g (1.7 lb.)
    • Illuminator
    • IR Wavelength850 nm
    • Smart Supplement LightYes
    • Supplement Light RangeUp to 40 m
    • Supplement Light TypeIR,White Light
    • Image
    • Day/Night SwitchDay,Night,Auto,Schedule
    • Image EnhancementBLC,HLC,3D DNR
    • Image Parameters SwitchYes
    • Privacy Mask8 programmable polygon privacy masks
    • SNR≥ 52 dB
    • Wide Dynamic Range (WDR)120 dB
    • Interface
    • AudioBuilt-in Microphone: Arrayed dual-microphone
    • Built-in Speaker 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
    • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
    • Reset KeyYes
    • Lens
    • ApertureF1.6
    • Depth of Field2.8 mm: 1.3 m to ∞ 4 mm: 1.4 m to ∞ 6 mm: 3.5 m to ∞
    • Focal Length & FOV2.8 mm, horizontal FOV 101°, vertical FOV 57°, diagonal FOV 118° 4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 96° 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
    • Iris TypeFixed
    • Lens MountM12
    • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
    • Network
    • APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
    • ClientiVMS-4200,Hik-Connect,Hik-Central
    • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
    • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
    • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
    • Simultaneous Live ViewUp to 6 channels
    • User/HostUp to 32 users 3 user levels: administrator, operator, and user
    • Web BrowserPlug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
    • Video
    • Bit Rate ControlCBR,VBR
    • H.264 TypeBaseline Profile,Main Profile,High Profile
    • H.265 TypeMain Profile
    • Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
    • Target CroppingYes
    • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
    • Video Bit Rate32 Kbps to 8 Mbps
    • Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
