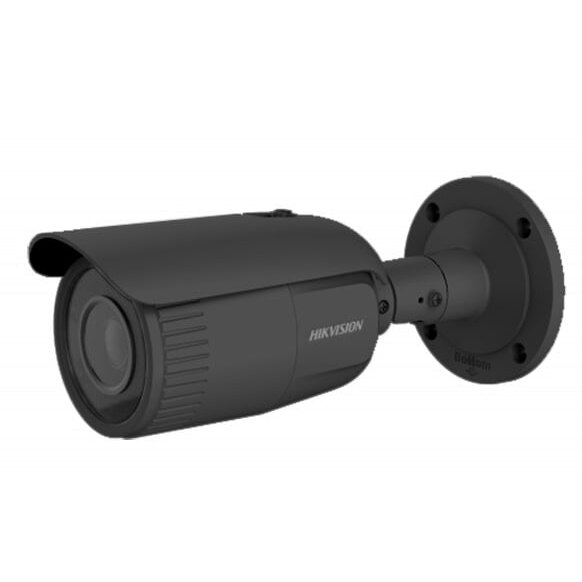

Hikvision bullet DS-2CD1643G0-IZ F2.8-12 (black, 4 MP, 30 m. IR)

Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON)

Shutter Speed

1/3 s to 1/100, 000 s, support slow shutter

Lens

2.8 to 12 mm

FOV

Horizontal field of view: 98° to 28° Vertical field of view: 51° to 16° Diagonal field of view: 115° to 32°

Focus

Auto

Lens Mount

Φ14

Day &Night

IR cut filter

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360°

Digital Noise Reduction

3D DNR

Wide Dynamic Range

120dB

Video Compression

Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG

H.264 Type

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

Max. Resolution

2560 × 1440

Main Stream Max. Frame Rate

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Sub-stream Max. Frame Rate

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Image Settings

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Day/Night Switch

Auto, scheduled

Network Storage

Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger

Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI

General Function

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Reset Button

Yes

Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)

Power Supply

12 VDC ± 20%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Power Consumption and Current

12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W

Ingress Protection level

IP67

IR Range

Up to 30 m

Dimensions

Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6")

Weight

Camera: approx. 1035 g (2.3 lb.) With package: approx. 1550 g (3.4 lb.)
