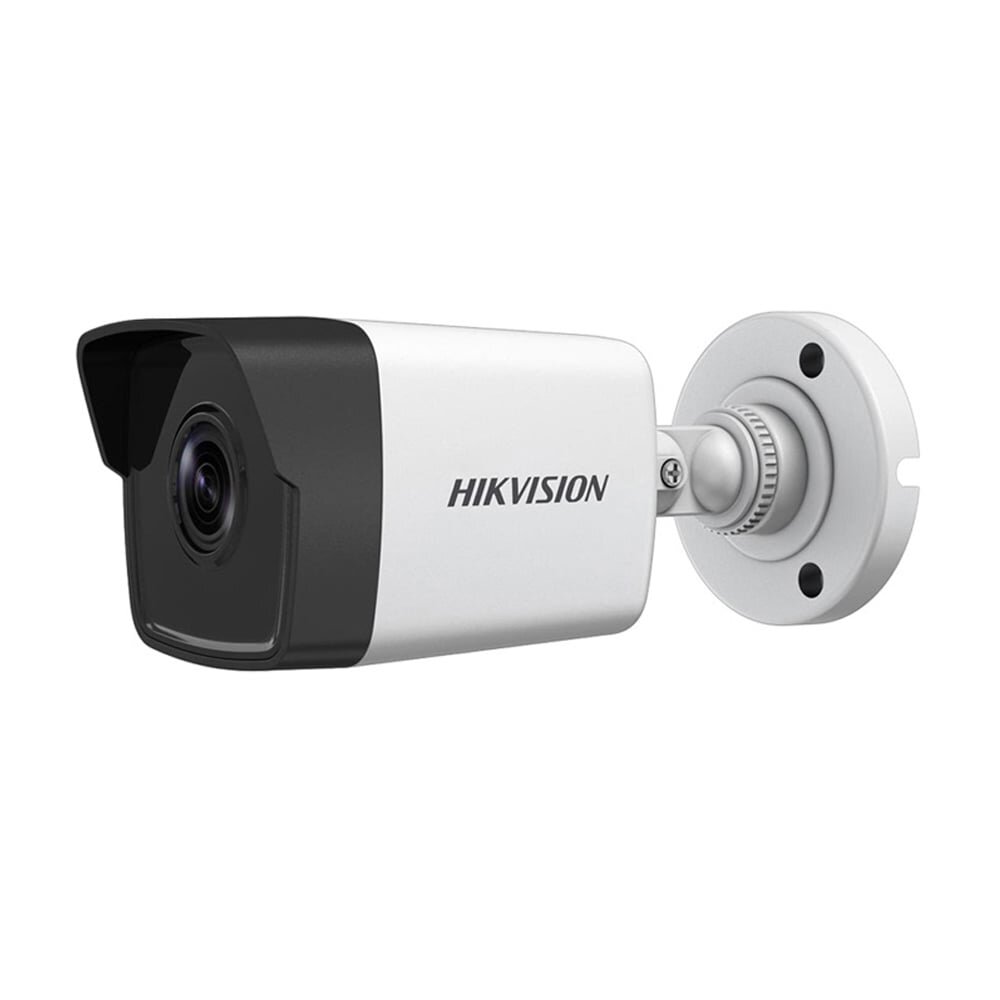

  •   Hikvision bullet DS-2CD1053G0-I F2.8 (white, 5 MP, 30 m. IR)

    Hikvision bullet DS-2CD1053G0-I F2.8 (white, 5 MP, 30 m. IR)

    Inquire about this item
    Price 160.94 €
    Want another price? Suggest yours!
    In stock.
    In stock: 20 pcs
    Manufacturer
    Hikvision

  • Camera
    Image Sensor 1/2.7" Progressive Scan CMOS
    Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
    Shutter Speed 1/3 s to 1/100,000 s
    Slow Shutter Yes
    Auto-Iris No
    Day & Night IR Cut Filter
    Digital Noise Reduction 3D DNR
    Wide Dynamic Range 120 dB
    3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
    Lens
    Focal Length 2.8/4/6 mm
    Aperture F2.0
    Focus Fixed
    FOV 2.8 mm, horizontal FOV: 100°, vertical FOV: 74°, diagonal FOV: 130°
    4 mm, horizontal field of view: 75°, vertical FOV: 55°, diagonal FOV: 98°
    6 mm, horizontal field of view: 49°, vertical FOV: 37°, diagonal FOV: 60°
    Lens Mount M12
    IR
    IR Range Up to 30 m
    Wavelength 850nm
    Compression Standard
    Video Compression Main stream: H.265/H.264
    Sub-stream: H.265/H.264/MJPEG
    H.264 Type Baseline Profile/Main Profile/High Profile
    H.264+ Main stream supports
    H.265 Type Main Profile
    H.265+ Main stream supports
    Video Bit Rate 32 Kbps to 8Mbps
    Smart Feature-set
    Region of Interest Support 1 fixed region for main stream and sub-stream
    Max. Resolution 2560 × 1920
    Main Stream 50Hz:12.5fps (2560 × 1920), 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz: 15fps (2560 × 1920), 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
    Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
    Image Enhancement BLC/3D DNR
    Image Settings Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
    Day/Night Switch Auto/Scheduled/Day/Night
    Network
    Alarm Trigger Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
    Network Storage NAS (NFS,SMB/CIFS)
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
    General Function Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
    Firmware Version V5.5.52
    API ONVIF(PROFILE S,PROFILE G), ISAPI
    Simultaneous Live View Up to 6 channels
    User/Host Up to 32 users
    3 levels: Administrator, Operator and User
    Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
    Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
    Interface
    Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    General
    Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
    Power Supply 12 VDC ± 25%
    PoE: 802.3af, class 3
    Power Consumption and Current 12 VDC, 0.5 A, max. 5 W
    PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
    Protection Level IP67
    Material Front cover: metal, bracket: plastic, camera body: plastic
    Dimensions Camera: Ø 70 mm × 172.7mm (2.7" × 6.8")
    With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
    Weight Camera: 300g (0.7 lb)
    With package: 550g (1.2 lb)
