  •   Hikvision bullet DS-2CD1047G3-LIU F2.8 (white, 4 MP, 30 m. IR, 30 m. LED, Hybrid light)

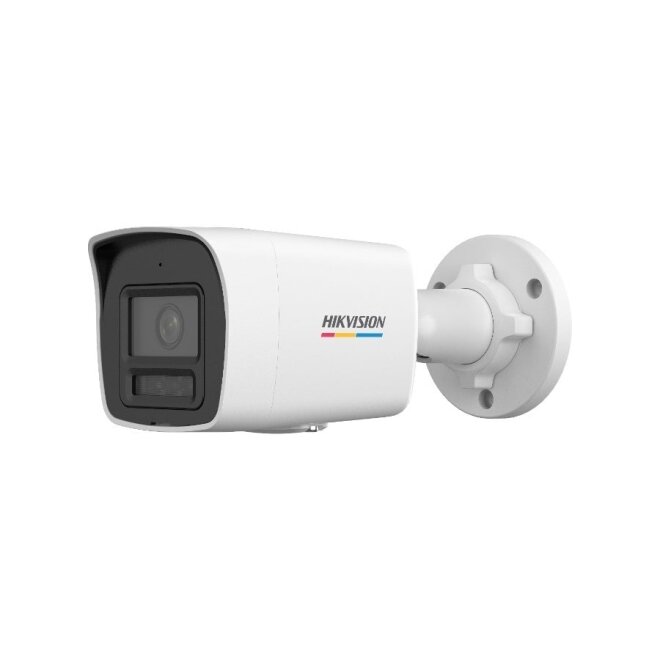

    Hikvision bullet DS-2CD1047G3-LIU F2.8 (white, 4 MP, 30 m. IR, 30 m. LED, Hybrid light)

    Inquire about this item
    Price 201.61 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    • General
    • Image Sensor1/3" Progressive Scan CMOS
    • Max. Resolution2560 × 1440
    • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
    • Shutter Time1 s to 1/100,000 s
    • Day & NightIR cut filter
    • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
    • Lens TypeFixed focal lens, 2.8 mm and 4 mm optional
    • Focal Length & FOV2.8 mm: horizontal 95.7°, vertical 51.7°, diagonal 113.7°; 4 mm: horizontal 79.6°, vertical 43.2°, diagonal 93.2°
    • Lens MountM12
    • Iris TypeFixed
    • ApertureF1.0
    • Depth of Field2.8 mm: 1.7 m to ∞; 4 mm: 1.6 m to ∞
    • DORI2.8 mm: D 63 m, O 25 m, R 12 m, I 6 m; 4 mm: D 77 m, O 30 m, R 15 m, I 7 m
    • Supplement Light TypeIR, White Light
    • Supplement Light RangeUp to 30 m
    • Smart Supplement LightYes
    • IR Wavelength850 nm
    • Main Stream50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
    • Sub-Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
    • Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
    • Video Bit Rate32 Kbps to 16 Mbps
    • H.264 TypeBaseline, Main, High Profile
    • H.265 TypeMain Profile
    • Bit Rate ControlCBR, VBR
    • Region of Interest (ROI)1 fixed region for main stream and sub-stream
    • Scalable Video Coding (SVC)H.264 and H.265 encoding
    • Audio TypeMono sound
    • Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
    • Audio Bit Rate64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–160 Kbps (MP2L2), 16–64 Kbps (AAC-LC)
    • Audio Sampling Rate8 kHz/16 kHz
    • Environment Noise FilteringYes
    • Network ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
    • Simultaneous Live ViewUp to 6 channels
    • APIONVIF (Profile S/G/T), ISAPI, SDK
    • SecurityPassword protection, watermark, basic/digest authentication, WSSE authentication, security audit log, MAC authentication
    • User/HostUp to 32 users; administrator, operator, user
    • ClientiVMS-4200, Hik-Connect
    • Web BrowserPlug-in required: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Plug-in free: Chrome 80+, Firefox 80+, Edge 89+
    • Image SettingsRotate, saturation, brightness, contrast, sharpness, gain, white balance
    • Day/Night SwitchDay, Night, Auto, Schedule
    • Wide Dynamic Range (WDR)120 dB
    • SNR≥ 52 dB
    • Image EnhancementBLC, HLC, 3D DNR
    • Privacy Mask4 programmable rectangular masks
    • Ethernet Interface1 RJ45 10/100 Mbps self-adaptive port
    • On-Board StorageNot supported
    • Built-in MicrophoneYes, 1 built-in microphone
    • Basic EventMotion detection (person/vehicle), video tampering, exception
    • LinkageFTP upload, notify surveillance center, email, trigger recording
    • Power12 VDC ±25%, 0.55 A, max. 6.6 W; PoE IEEE 802.3af Class 3, max. 8 W
    • MaterialFront cover: metal; body: plastic; bracket: plastic
    • Dimension69.1 mm × 66.9 mm × 172.9 mm (2.7" × 2.6" × 6.8")
    • Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7")
    • WeightLIU: 330 g; LIUF: 335 g; LIU(F)/SL: 450 g; LIU(F)/SRB: 450 g
    • With Package WeightLIU: 445 g; LIUF: 450 g; LIU(F)/SL: 480 g; LIU(F)/SRB: 480 g
    • Storage Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
    • Startup and Operating Conditions-30 °C to 60 °C, humidity ≤95% (non-condensing)
    • LanguageEnglish, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
    • General FunctionHeartbeat, mirror, flash log, password reset via email, password protection, anti-banding
    • EMC ApprovalCE-EMC EN 55032, EN 50130-4, EN IEC 61000-3-2, EN 61000-3-3
    • SafetyIEC 62368-1
    • EnvironmentCE-RoHS, WEEE, REACH
    • ProtectionIP67
