  •   Hikvision 6 port switch DS-3T0506HP-E/HS

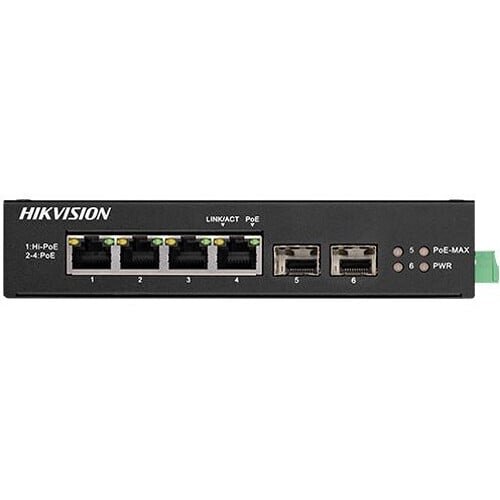

    Hikvision 6 port switch DS-3T0506HP-E/HS

    Inquire about this item
    Price 86.12 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • General
    • ShellMetal material, fan-free design
    • Net Weight1.418 kg (2.204 lb)
    • Gross Weight0.62 kg (1.37 lb)
    • Dimensions (W × H × D)286.0 mm × 103.35 mm × 27.8 mm (11.26'' × 4.07'' × 1.09'')
    • Operating Temperature0 °C to 40 °C (32 °F to 104 °F)
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Operating Humidity5% to 95% (no condensation)
    • Power Supply54 V DC, 2.22 A
    • Surge Protection6 KV
    • Network Parameters
    • Ports8 × 1 Gigabit PoE port,8 × 1 Gigabit RJ45 port
    • MAC Address Table8 K
    • Switching Capacity32 Gbps
    • Packet Forwarding Rate23.81 Mpps
    • Internal Cache4.1 Mbits
    • PoE Power Supply
    • PoE Power PinEnd-span: 1/2(-), 3/6(+)
    • PoE PortPoE: Ports 1 to 8
    • Max. Port Power30 W
    • PoE StandardIEEE 802.3at,IEEE 802.3af
    • PoE Power Budget110 W
    • Approval
    • EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
    • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
