  •   Hikvision 26-port 24 PoE switch DS-3E0326P-E(C)

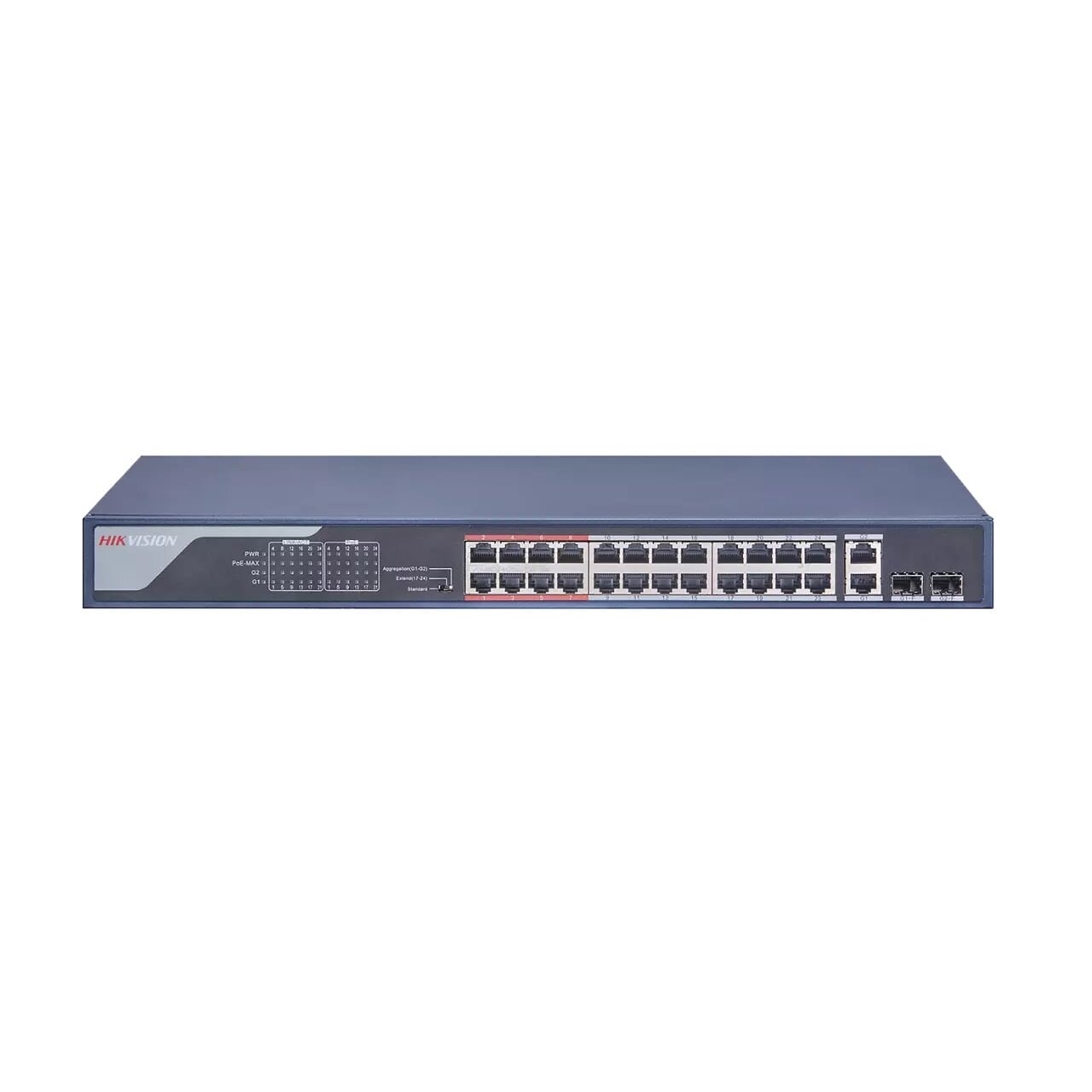

    Hikvision 26-port 24 PoE switch DS-3E0326P-E(C)

    Inquire about this item
    Price 307.33 €
    Want another price? Suggest yours!
    In stock.

    In stock: 5 pcs
    Manufacturer
    Hikvision
    • Approval
    • ChemistryCE-RoHS (2011/65/EU)
    • EMCFCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
    • SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
    • Dialing Function
    • Long RangePorts 17 to 24: up to 300 m Long range performance may vary depend on camera model or cable condition.
    • PoE WatchdogPorts 1  to 24: auto detect and restart the cameras that do not respond.
    • Port IsolationPorts 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
    • General
    • Dimensions (W × H × D)440.0 mm × 44.0 mm × 220.8 mm (17.3'' × 1.7'' × 8.7'')
    • Gross Weight3.54 kg (7.80 lb)
    • Installation ModeRack (equipped with mounting ears)
    • Max. Power Consumption400 W
    • Net Weight2.785 kg (6.14 lb)
    • Operating Humidity5% to 95% (no condensation)
    • Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
    • Power Consumption in Idle30 W
    • Power Supply100~240 VAC, 50/60 Hz, Max. 6.5 A
    • Relative Humidity5% to 95% (no condensation)
    • ShellMetal material
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Surge Protection6 KV
    • Network Parameters
    • Internal Cache4 Mbits
    • MAC Address Table16 K
    • Packet Forwarding Rate6.55 Mpps
    • Ports24 × 10/100 Mbps PoE port,2 × Gigabit combo
    • Switching Capacity8.80 Gbps
    • PoE Power Supply
    • Max. Port Power30 W
    • PoE PortPoE: Ports 1 to 24
    • PoE Power Budget370 W
    • PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
    • PoE StandardIEEE 802.3af;IEEE 802.3at
    • Software Function
    • VIP PortPorts 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
