  •   Hikvision 26 port 24 PoE port switch DS-3E0526P-E

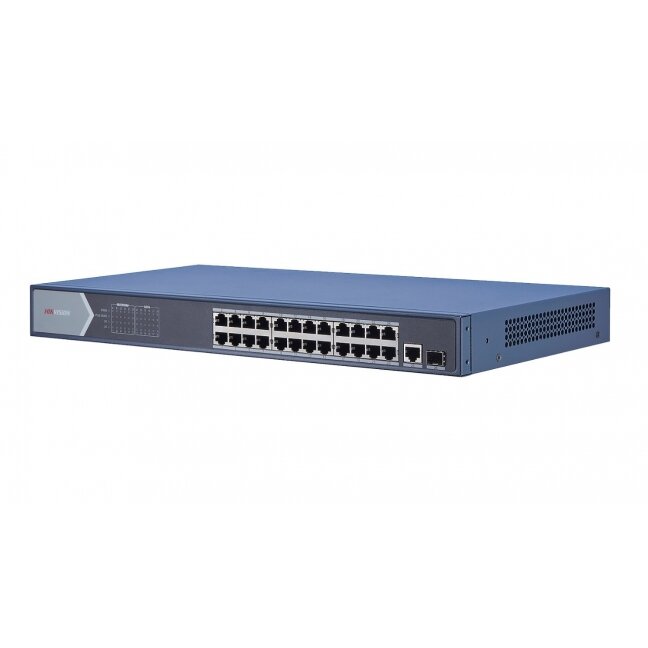

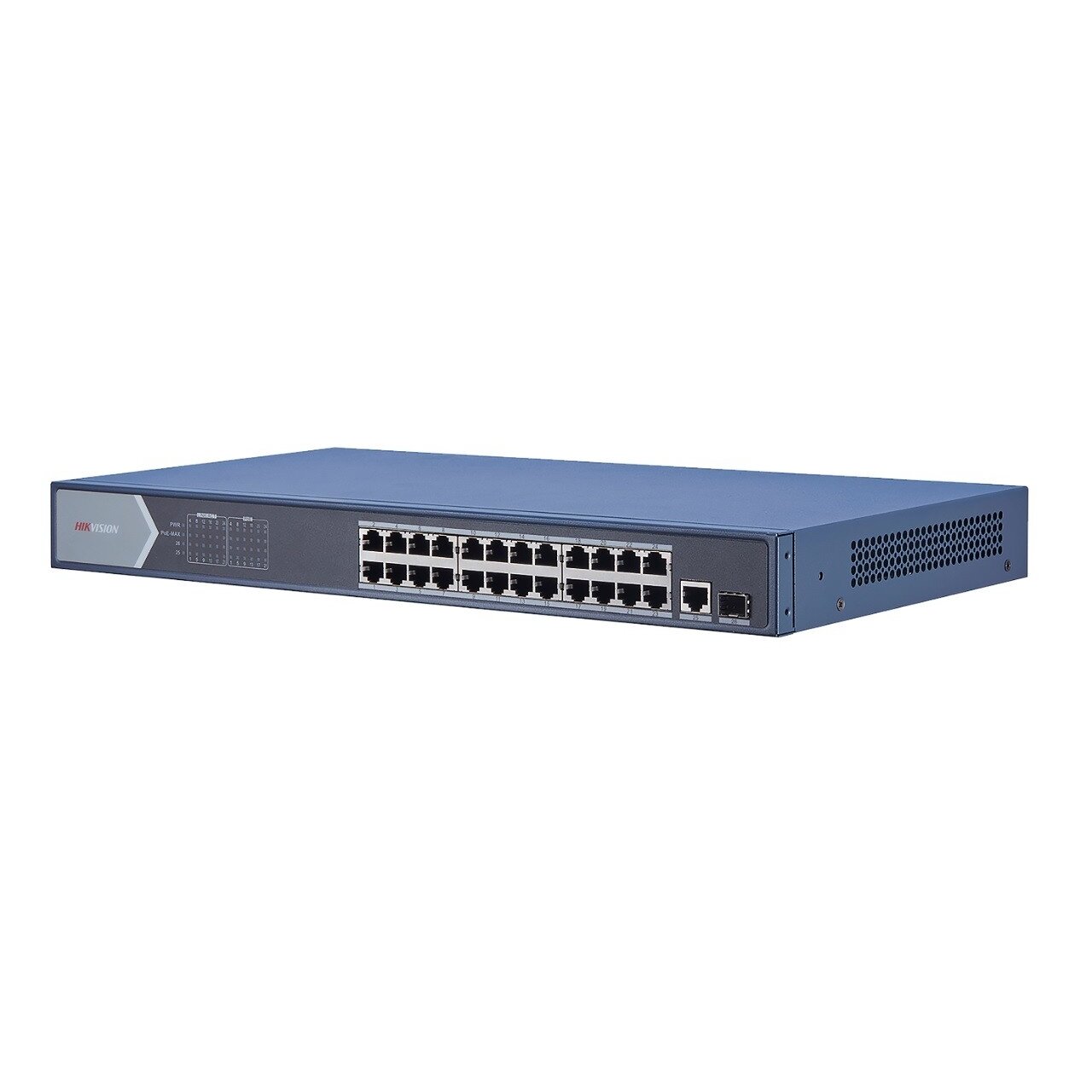

    Hikvision 26 port 24 PoE port switch DS-3E0526P-E

    Inquire about this item
    Price 387.92 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • PoE Power Supply
    • PoE StandardIEEE 802.3af, IEEE 802.3at
    • PoE Power PinSupport 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply.
    • PoE PortPorts 1 to 24
    • Max. Port Power30 W
    • PoE Power Pudget370 W
    • Max. Power Consumption400 W
    • Network Parameters
    • Port Number24 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit SFP fiber optical port
    • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
    • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
    • Forwarding ModeStore-and-forward switching
    • MAC Address Table8 K
    • Switching Capacity52 Gbps
    • Packet Forwarding Rate38.688 Mpps
    • Internal Cache4.1 Mbits
    • General
    • ShellMetal material
    • Gross Weight3.74 kg (8.25 lb)
    • Net Weight2.88 kg (6.35 lb)
    • Dimension (L × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
    • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Operating Humidity5% to 95% (no condensation)
    • Storage Humidity5% to 95% (no condensation)
    • Power Supply100 to 240 VAC, 50/60 Hz, Max. 6.5 A
    • Power Consumption in Idle30 W
