  •   Hikvision 20 port 16 PoE port switch DS-3E0520HP-E

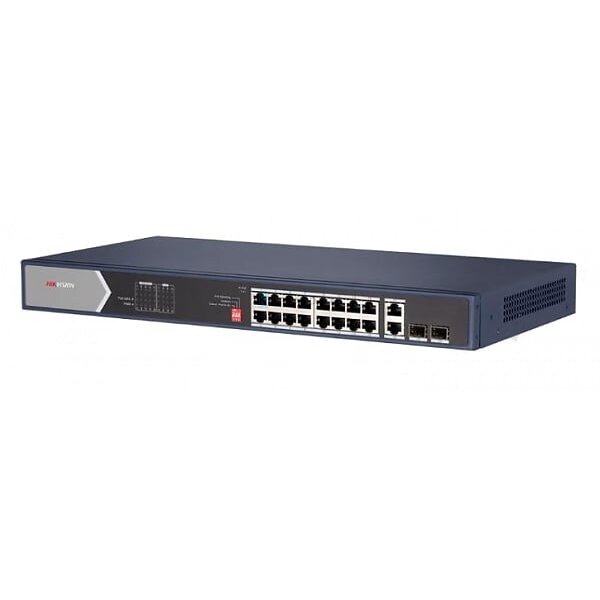

    Hikvision 20 port 16 PoE port switch DS-3E0520HP-E

    Inquire about this item
    Price 292.50 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Hikvision

    • PoE Power Supply
    • PoE Standard

      Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

      Ports 5 to 16: IEEE 802.3af, IEEE 802.3at

    • PoE Power Pin

      Ports 5 to 12: Ethernet cables 1/2/3/6 provide power supply.

      Ports 1 to 4 and 13 to 16: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

    • PoE PortPorts 1 to 16
    • Max. Port Power

      Ports 1 to 4: 90 W

      Ports 5 to 16: 30 W

    • Hi-PoE PortPorts 1 to 4
    • PoE Power Budget225 W
    • Network Parameters
    • Port Number12 × gigabit PoE ports, 4 × gigabit Hi-PoE ports, 2 × gigabit RJ45 ports, and 2 × gigabit fiber optical ports
    • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
    • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z
    • Forwarding ModeStore-and-forward switching
    • Working ModeStandard mode (default), Extend mode Isolation mode, PoE watchdog mode
    • Ports for Long-Distance TransmissionPorts 13 to 16
    • MAC Address Table8 K
    • Switching Capacity40 Gbps
    • Packet Forwarding Rate29.76 Mpps
    • Internal Cache4.1 Mbits
    • Dialing Function
    • Long RangePorts 13 to 16: up to 300 m; and the speed rate of the port is 10 Mbps.
    • Port IsolationPorts 1 to 16: port isolation mode to improve network security.
    • PoE WatchdogPorts 1 to 16: auto detect and restart the cameras that do not respond.
    • General
    • ShellMetal material
    • Net Weight2.79 kg (6.15 lb)
    • Dimension (L × H × D)440 mm × 220.8 mm × 44 mm (17.32” × 8.69” × 1.73”)
    • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Operating Humidity5% to 95% (no condensation)
    • Storage Humidity5% to 95% (no condensation)
    • Power Supply100 to 240 VAC, 50/60Hz, Max. 4 A
    • Power Consumption in Idle< 25 W
    • Power Souce250 W
    • Max. Power Consumption250 W
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
    • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
