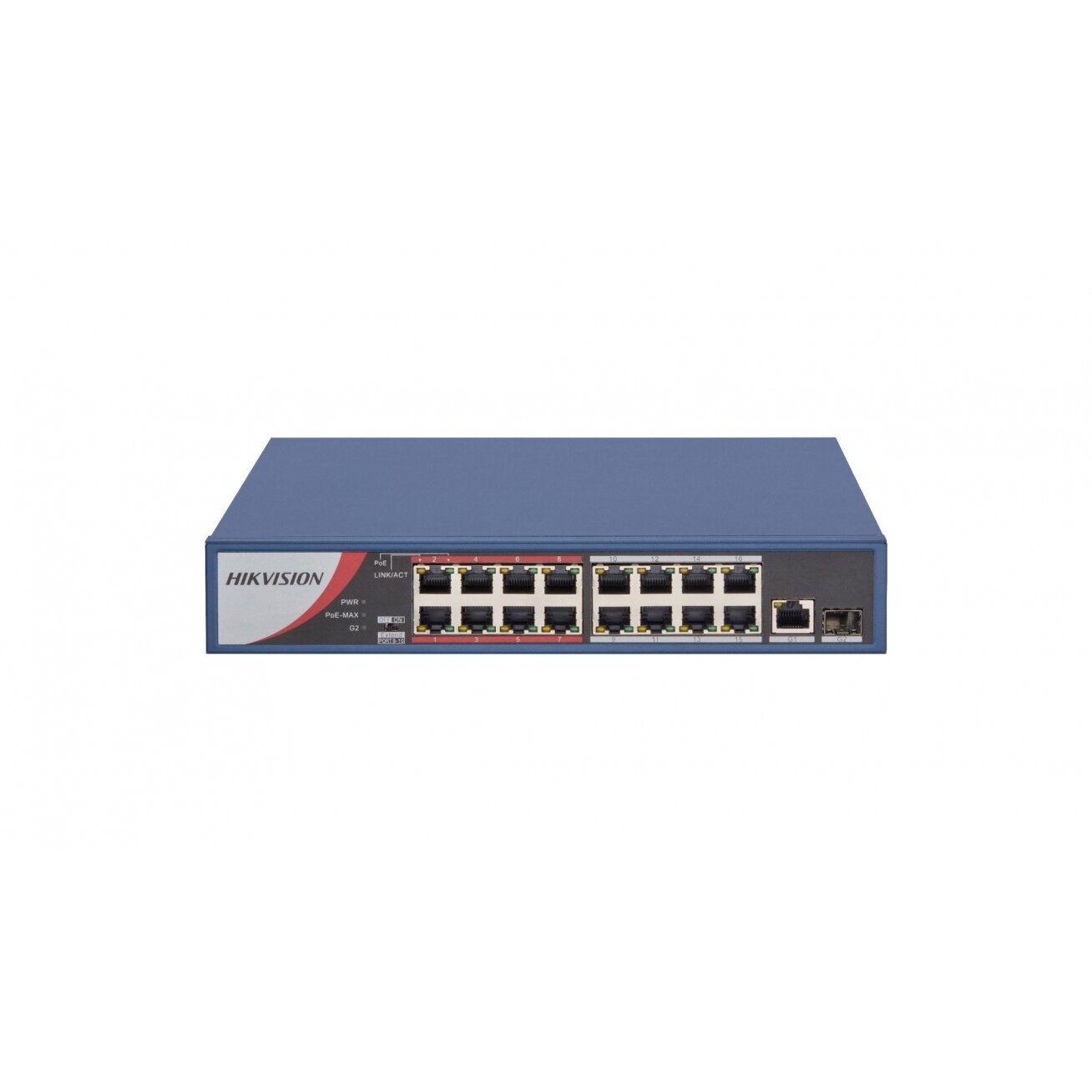

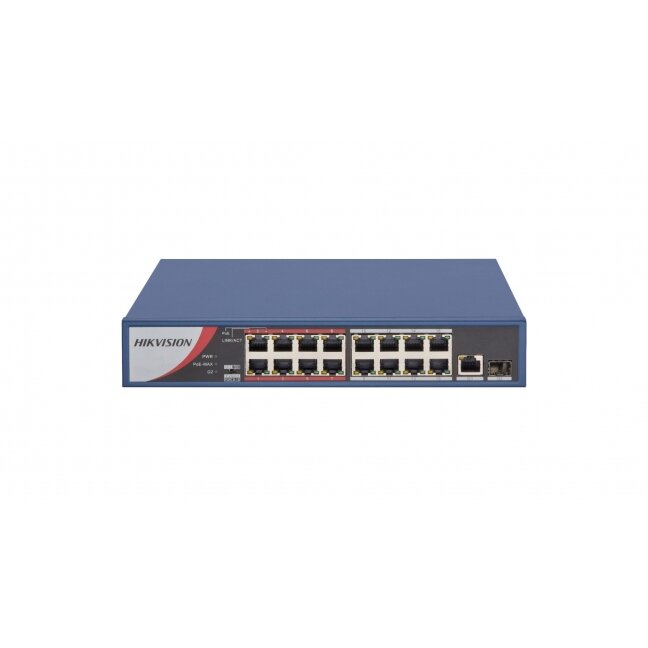

  •   Hikvision 18 port 16 PoE port switch DS-3E0318P-E/M(B)

    Hikvision 18 port 16 PoE port switch DS-3E0318P-E/M(B)

    Inquire about this item
    Price 181.60 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision

    • PoE Power Supply
    • PoE StandardIEEE 802.3af, IEEE 802.3at
    • PoE Power Pin

      Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

      Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

    • PoE PortPorts 1 to 16
    • Max. Port Power30 W
    • PoE Power Pudget130 W
    • Max. Power Consumption150 W
    • Network Parameters
    • Port Number16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
    • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
    • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
    • Forwarding ModeStore-and-forward switching
    • Working ModeStandard mode (default); Extend mode
    • High priority portsPorts 1 to 8
    • Ports for Long-Distance TransmissionPorts 9 to 16
    • MAC Address Table4 K
    • Switching Capacity7.2 Gbps
    • Packet Forwarding Rate5.356 Mpps
    • Internal Cache2.75 Mbits
    • General
    • ShellMetal material
    • Gross Weight2.58 kg (5.69 lb)
    • Net Weight1.8 kg (4.0 lb)
    • Dimension (L × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
    • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
    • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
    • Operating Humidity5% to 95% (no condensation)
    • Storage Humidity5% to 95% (no condensation)
    • Power Supply100 to 240 VAC, 50/60 Hz, Max. 2.5 A
    • Power Consumption in Idle20 W
    • Approval
    • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
    • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
    • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
