  •   Hikvision 10.1" Monitor DS-KM9503

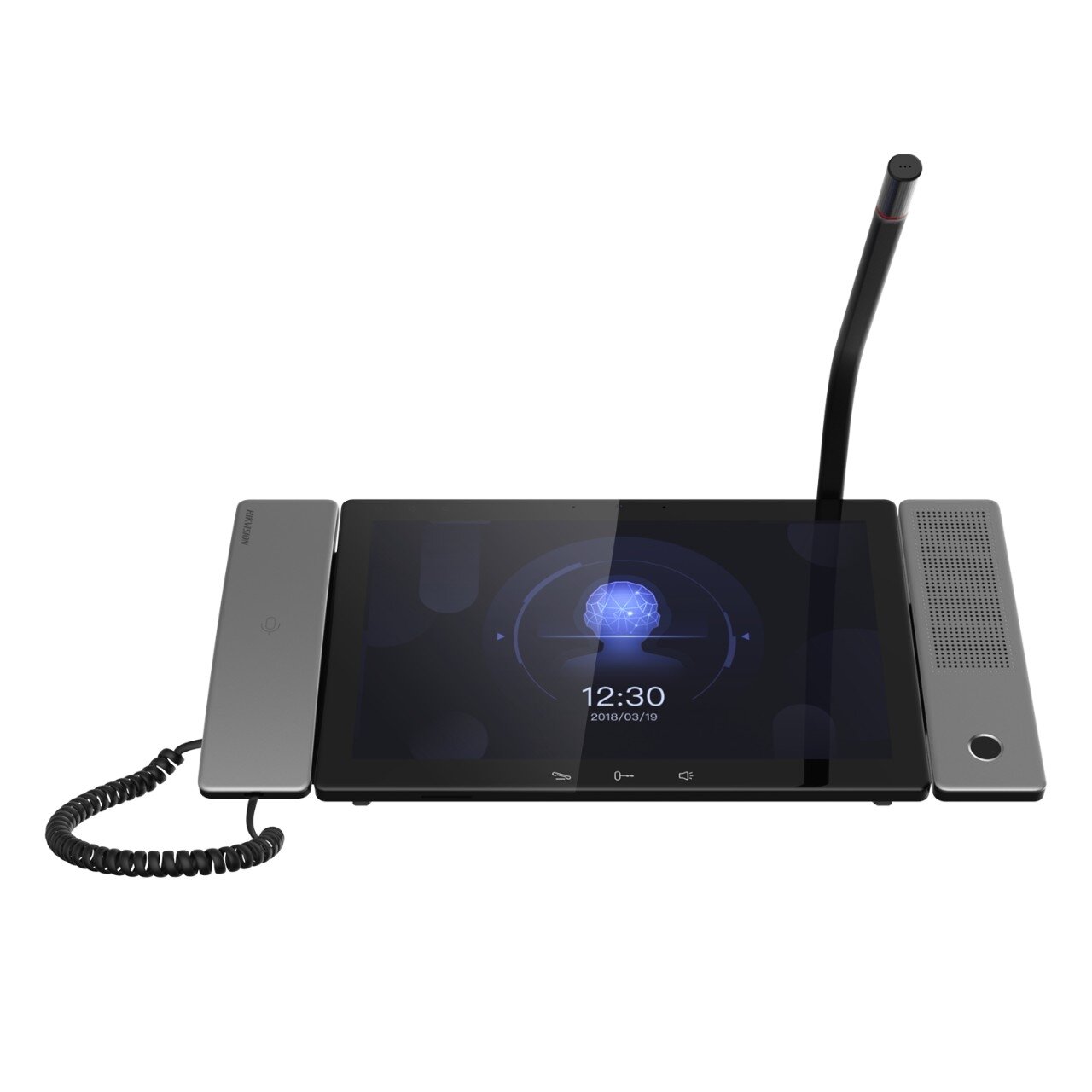

    Hikvision 10.1" Monitor DS-KM9503

    Inquire about this item
    Price 1768.26 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    Hikvision

    • System parameters
    • Operating systemAndroid 7.1
    • ROM8 GB
    • RAM2 GB
    • CPUEmbedded processor
    • Display parameters
    • Screen size10.1-inch
    • Operation methodCapacitive touch screen
    • TypeIPS
    • Resolution1280 × 800
    • Video parameters
    • Supplement light/
    • Video compression standardH.264
    • FOVHorizontal: 64.1°, Vertical: 48.1°, Diagonal: 80.2°
    • WDR/
    • Resolution2 MP
    • Audio parameters
    • Audio compression standardG.711U、G.711A
    • Audio inputBuilt-in omnidirectional microphone, external speaker, external goose neck microphone, external earphone (3.5 mm)
    • Audio outputBuilt-in loudspeaker, external speaker, external voice box or earphone (3.5 mm)
    • Audio compression bitrate64 Kbps
    • Audio qualityNoise suppression and echo cancellation
    • Volume adjustmentAdjustable via software
    • Capacity
    • Linked network camera capacity128
    • SIP access10000
    • Network parameters
    • Communication protocol TCP/IP, SIP, RTSP
    • Wired network2 10/100/1000 M self-adaptive Ethernet
    • Wi-Fi/
    • 3G/4G/
    • Zigbee/
    • Device interfaces
    • Alarm input2
    • Network interface2
    • TAMPER0
    • RS-4851
    • USB3
    • TF cardMax to 128 G
    • Lock control2 Relay output
    • General
    • Button3 touch buttons
    • InstallationTable mounting & wall mounting
    • Indicator3

    • Without package: 1.285 kg

      With package: 2.305 kg

    • Protective level/
    • Working temperature-10 °C to 50 °C( 14 °F to 122 °F)
    • Working humidity10% to 90%
    • Dimensions292 mm × 166 mm × 31 mm (11.5" × 6.5" × 1.2")
    • Battery/
    • Power supply

      Standard PoE (LAN1)

      12 VDC

    • Application environmentIndoor
    • Power consumption≤ 12 W
