  •   Hager ESC440 4-Pole Contactor (40A, 230V, 4NO)

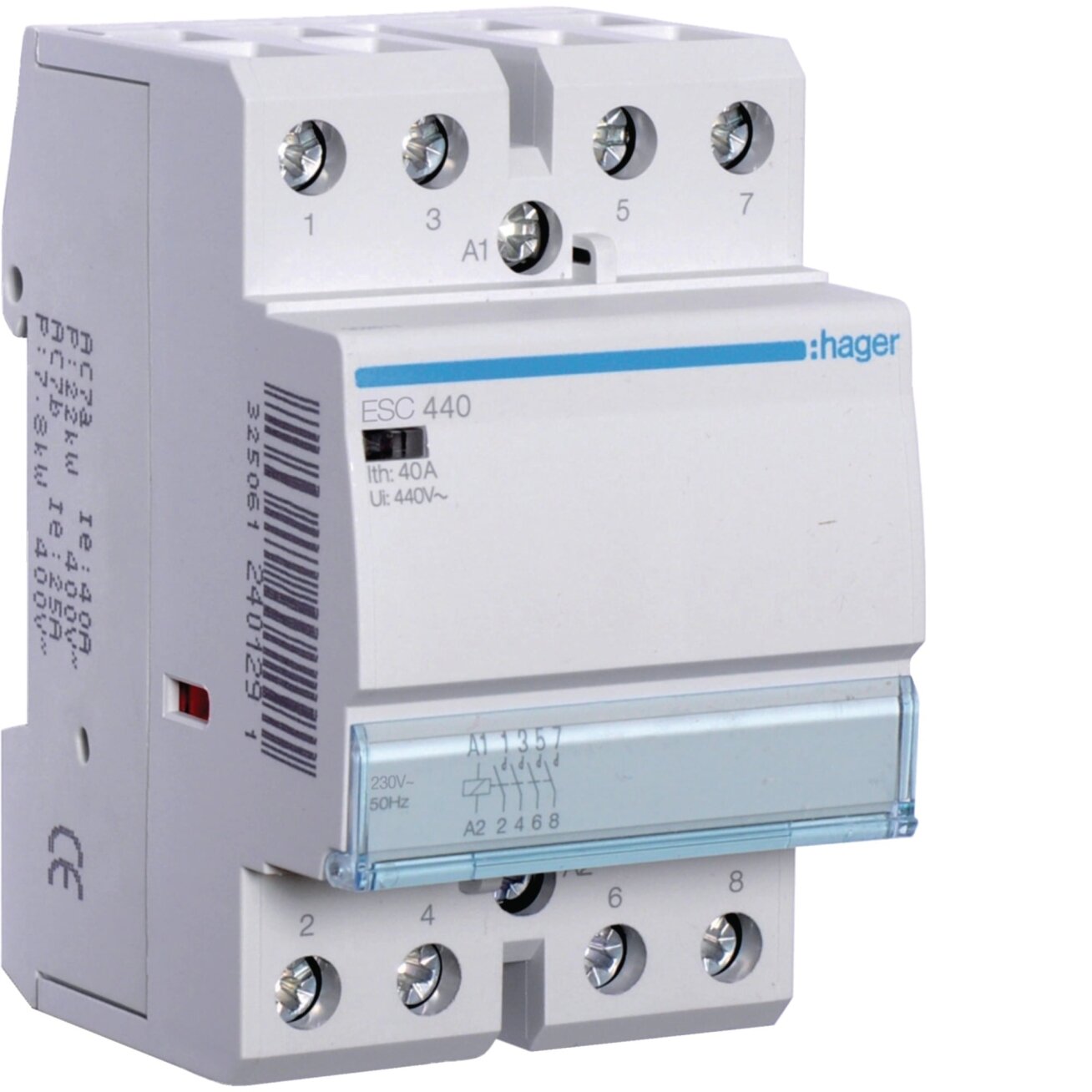

    Hager ESC440 4-Pole Contactor (40A, 230V, 4NO)

    Inquire about this item
    Price 88.13 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    • Connection
    • Type of contacts4NO
    • Number of contacts4
    • Cross-section flexible conductor1.5 - 16 mm²
    • Cross-section rigid conductor1.5 - 25 mm²
    • Electric current
    • Rated current40 A
    • Acceptable current rating AC140 A
    • Acceptable current rating AC325 A
    • Capacity
    • Number of modules3
    • Frequency
    • Frequency50 - 50 Hz
    • Voltage
    • Rated impulse withstand voltage Uimp4,000 V
    • Rated insulation voltage Ui440 V
    • Rated operational voltage Ue400 - 400 V
    • Command voltage AC230 - 230 V
    • Command voltage DC0 - 0 V
    • Use conditions
    • Operating temperature-10 - 50 °C
    • Storage/transport temperature-40 - 80 °C
    • Use
    • Category of useAC-7a/AC-7b
    • Endurance
    • Number of mechanical operations100,000
    • Electric endurance in number of cycles30,000
    • Power
    • Total power loss under IN14.30 W
    • Inrush power absorbed62.50 VA
    • Dimensions
    • Height85 mm
    • Width54 mm
    • Depth60 mm
    • Equipment
    • Number of NO contacts4
    • Number of NC contacts0
    • With switch for manual switchNo
    • Architecture
    • Number of poles4
