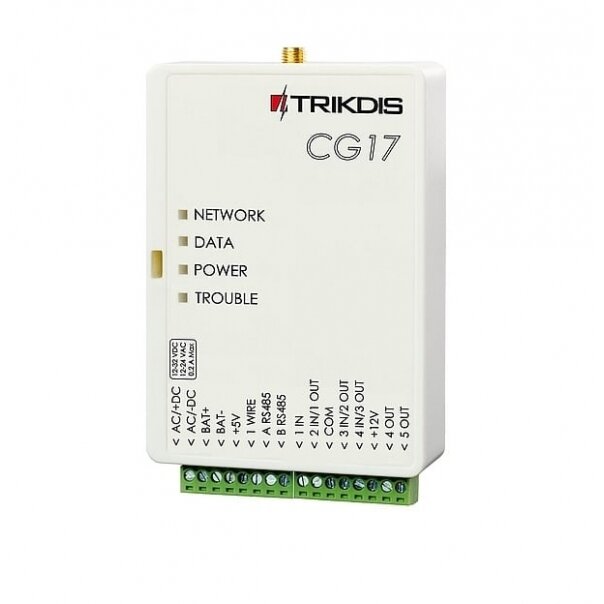

GSM controller CG17 Trikdis
ManufacturerTrikdis-
- Power supply voltage - 16-24 VDC, 16-18 VAC;
- Current standby mode 50 mA, transmitting mode up to 200 mA;
- GSM modem frequencies - 850 / 900 / 1800 / 1900 MHz;
- 3G modem frequencies - 800 / 850 / 900 / 1900 / 2100 MHz;
- Communication with ARC - Encrypted TCP/IP or UDP/IP, SMS
- Battery charging current - Max 500 mA
- Event encryption, key - TRK / 6 symbol key
- Memory - Up to 60 messages
- Inputs (max internal) - Up to 4 selectable type input: NC, NO, EOL (10kΩ)
- Outputs (max internal) - Up to 5 x OC type outputs, (1 OUT, 2 OUT, 3 OUT – 100 mA; 4 OUT, 5 OUT – 1 A)
- Event transmission - Contact ID codes
- Encryption key - 6 symbols encryption key
- Operating environment - From -10 °C to 50 °C, with relative air humidity 80% when +20 °C
- Dimensions - 95x65x25 mm
