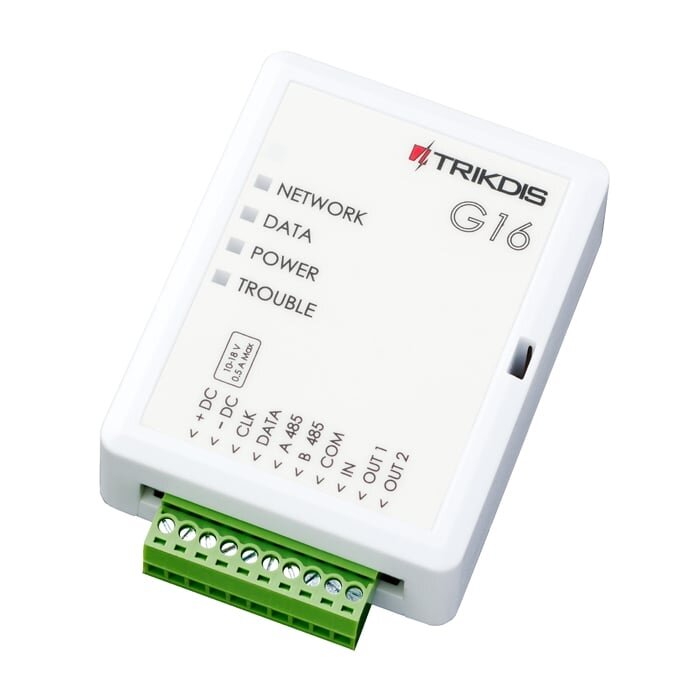

GSM communicator Trikdis G16 (with antenna)
ManufacturerTrikdis-
Parameter Description 2G modem frequencies 850 / 900 / 1800 / 1900 MHz 3G modem frequencies 800 / 850 / 900 / 1900 / 2100 MHz 4G modem frequencies Depends on region Power supply voltage 10-18 VDC Current consumption 60-100 mA (on standby) Up to 250 mA (while sending data)
Transmission protocols TRK, DC-09_2007, DC-09_2012 Message encryption AES 128 Memory Up to 60 messages Inputs 1 selectable type NC or NO Output 2, OC type, commutating up to 0,15 A, 30 VDC max Parameter configuration Remotely via TrikdisConfig computer program or locally via USB Mini-B port Remotely with SMS
Operating environment Temperature from -10 °C to 50 °C, relative humidity – up to 80% at +20 °C Communicator dimensions 92 x 65 x 26 mm Weight 80 g
