Products catalog

Home/Network Equipment and WiFi/Commutation-Switching Equipment/Network Gateways
  •   Gateway Teltonika TRB141

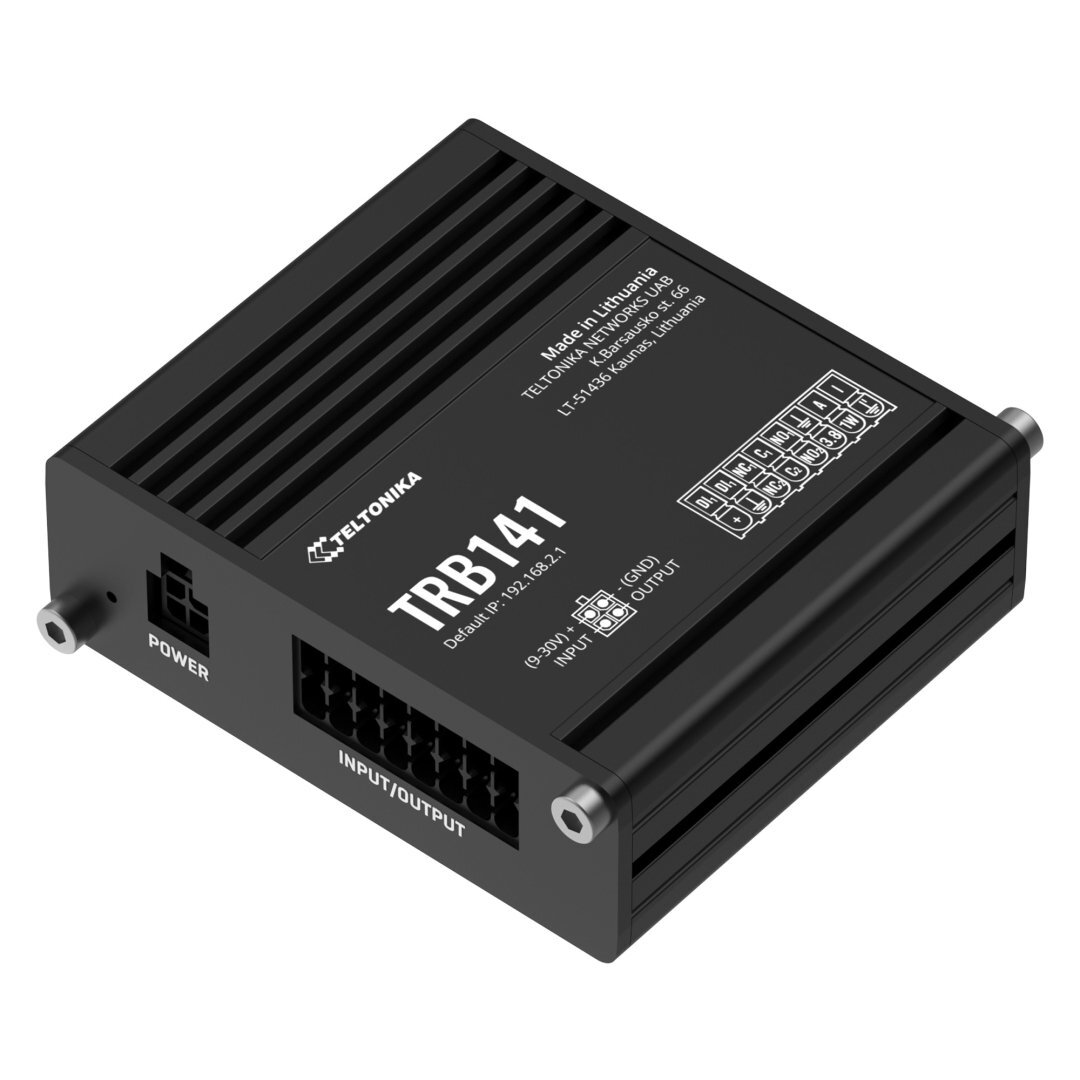

    Gateway Teltonika TRB141

    Inquire about this item
    Price 174.94 €
    Want another price? Suggest yours!
    In stock.
    In stock: 5 pcs
    Manufacturer
    Teltonika
    • General
    • Mobile module4G LTE Cat 1 up to 10 DL/5 UL Mbps; 3G up to 384 DL/384 UL kbps; 2G up to 296 DL/236.8 UL kbps
    • 3GPP ReleaseRelease 12
    • StatusIMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, MNC
    • SMSSMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
    • USSDSupports sending and reading Unstructured Supplementary Service Data messages
    • Block/Allow listOperator block/allow list (by country or individual operators)
    • Multiple PDNUse of multiple PDNs for network access and services
    • Band managementBand lock, used band status display
    • SIM PIN code managementSetting, changing or disabling SIM PIN
    • APNAuto APN
    • BridgeDirect mobile ISP-to-LAN device connection
    • PassthroughGateway assigns mobile WAN IP to LAN device
    • RoutingStatic routing
    • Network protocolsTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT
    • VoIP passthrough supportH.323 and SIP-alg NAT helpers for VoIP routing
    • Connection monitoringPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP link inspection
    • FirewallPort forward, traffic rules, custom rules, TTL target customization
    • Firewall status pageDisplays Firewall statistics, rules, and counters
    • Port managementView and control device ports, speed, and auto-configuration
    • Network topologyVisual network layout showing connected devices
    • DHCPStatic/dynamic IP allocation, relay, server configuration, leases with MAC wildcards
    • QoS / SQMTraffic priority by source/destination, service, protocol, port; WMM, 802.11e
    • DDNSSupports >77 providers, manual config available
    • DNS over HTTPSSecure DNS via HTTPS proxy
    • Network backupMobile, VRRP, Wired auto failover options
    • SSHFSMount remote file system via SSH
    • Traffic ManagementReal-time monitoring, signal charts, traffic history
    • AuthenticationPre-shared key, digital/X.509 certificates, TACACS+, RADIUS, IP/login blocking, time-based login blocking, random password generator
    • Firewall configPreconfigured via WebUI, full CLI access, DMZ, NAT, NAT-T, NAT64
    • Attack preventionDDOS, SSH/HTTP/HTTPS attack prevention, port scan defense
    • VLANPort and tag-based VLAN separation
    • Mobile quota controlData limits, custom period/start, warnings, phone number
    • WEB filterBlacklist, whitelist for web access control
    • Access controlControl access to SSH, Web UI, CLI, Telnet
    • Certificate ManagerCreate CA, server, client, Let's Encrypt, SCEP certificates
    • OpenVPNMultiple client/server support, 27 encryption methods
    • OpenVPN EncryptionSupports DES, RC2, DES-EDE, AES (128/192/256-bit) in CBC, CFB, OFB, GCM modes, CAST5, BF, DESX
    • IPsecXFRM, IKEv1/v2 with 14 encryption methods
    • GREGRE tunnel, GRE over IPsec supported
    • PPTP, L2TPClient/server instances, L2TPv3, L2TP over IPsec
    • StunnelTLS proxy encryption for clients/servers without code changes
    • DMVPNScalable IPsec VPN, Phase 2/3, Dual Hub support
    • SSTPSSTP client support
    • ZeroTierZeroTier VPN client support
    • WireGuardWireGuard VPN client and server support
    • TincEncrypted/authenticated/compressed tunnels, client/server support
    • OPC UAClient and Server modes
    • OPC UA connection typesTCP
    • Modbus MQTT GatewaySend/receive MODBUS Server data via MQTT
    • MODBUS modesServer, Client
    • MODBUS connection typesTCP
    • Custom registersMODBUS TCP block requests for file read/write to extend client functions
    • MODBUS data formats8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII
    • Data to Server protocolsHTTP(S), MQTT, Azure MQTT
    • Data to Server featuresExtract and send parameters from different protocols to one server; LUA scripting support
    • DNP3 modesStation, Outstation
    • DNP3 connection typesTCP
    • DLMS/COSEM protocolDLMS standard for utility meter data exchange
    • DLMS modesClient
    • DLMS connection typesTCP
    • Web API supportTeltonika Networks Web API (beta); endpoint documentation available
    • WEB UIHTTP/HTTPS access, status, config, firmware update, CLI, logs
    • FOTAFirmware update from server, auto-notification
    • SSHSSH v1/v2
    • SMS managementSMS status, configuration
    • Call functionsReboot, status, mobile data toggle, output control, answer/hang-up with timer
    • TR-069Support for OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
    • MQTT featuresMQTT Broker and Publisher
    • SNMP supportSNMP v1/v2/v3, SNMP Trap, brute force protection
    • JSON-RPCHTTP/HTTPS management API
    • RMSTeltonika Remote Management System
    • ThingWorx platformWAN type, IP, operator name, signal strength, network type monitoring
    • Cumulocity platformMonitors model, revision, WAN/IP, Cell ID, ICCID, IMEI, operator, signal, reboots, firmware updates
    • Azure IoT HubSend parameters to cloud, direct API methods, zero-touch provisioning
    • AWS IoT CoreDevice API via AWS Jobs support
    • CPUARM Cortex-A7 1.2 GHz
    • RAM128 MB DDR2
    • FLASH storage512 MB SPI Flash
    • WEB UI featuresUpdate/config profiles, backups, firmware check
    • FOTA updateFirmware update supported
    • RMS firmware managementRemote firmware/config updates
    • Keep settingsFirmware update without config loss
    • Factory resetRestores default settings including IP, PIN, and user data
    • Firmware customisationRutOS (OpenWrt based), branding, logos, colors
    • Supported languagesBusybox, Lua, C, C++, Python
    • Development toolsSDK package provided
    • GPL customizationCreate custom firmware and Web UI
    • Package ManagerInstall additional device software
    • Inputs2 x Digital (passive/active), 1 x Isolated, 1 x Analog (4–20 mA), 1 x Configurable; Logic Low: 0–5 V, High: 8–30 V
    • Outputs2 x Relay (latching/non-latching), 1 x Configurable open collector (max 30 V, 300 mA)
    • Events triggerEmail, RMS, SMS
    • I/O jugglerSet I/O conditions to trigger events
    • Power connector4-pin industrial DC socket
    • Power input9–30 VDC, reverse polarity and surge protection >31 VDC 10 µs max
    • Power consumption< 5 W
    • Physical interfaces3 x Digital Inputs, 1 x Analog input, 2 x Relays (16-pin), 2 x I/O pins (4-pin power), 1 x SMA for LTE, 1 x micro USB, 1 x SIM slot (Mini SIM – 2FF), 1 x 1-Wire
    • Status LEDs3 x Connection type, 5 x Signal strength, 1 x Power
    • Reset buttonReboot, user reset, factory reset
    • Casing materialAluminium housing
    • Dimensions (W x H x D)74.5 x 25 x 64.4 mm
    • Weight136 g
    • Mounting optionsDIN rail, wall, flat surface (kits required)
    • Operating temperature-40 °C to 75 °C
    • Operating humidity10% to 90% non-condensing
    • Ingress ProtectionIP30
    • Regulatory certificationsCE, UKCA, EAC, UCRF, ANRT, Kenya, ICASA, Anatel, NOM, RCM, Giteki
    • Approved operatorDeutsche Telekom AG
    • EMC complianceDraft EN 301 489-1 V2.2.0, EN 301 489-52 V1.1.0
    • EMC immunityEN 61000-4-2:2009 (ESD), EN IEC 61000-4-3:2006+A1+A2 (Radiated), EN 61000-4-4:2012 (EFT), EN 61000-4-5:2014 (Surge), EN 61000-4-6:2014 (CS), EN 61000-4-11:2004 (DIP)
    • RF standardsEN 301 511 V12.5.1, EN 301 908-1/2/13 V13.1.1
    • Safety standardsEN 62368-1:2014+A11:2017, EN IEC 62232:2017, EN 50385:2017, AS/NZS 62368.1:2018, IEC 62368-1:2018
