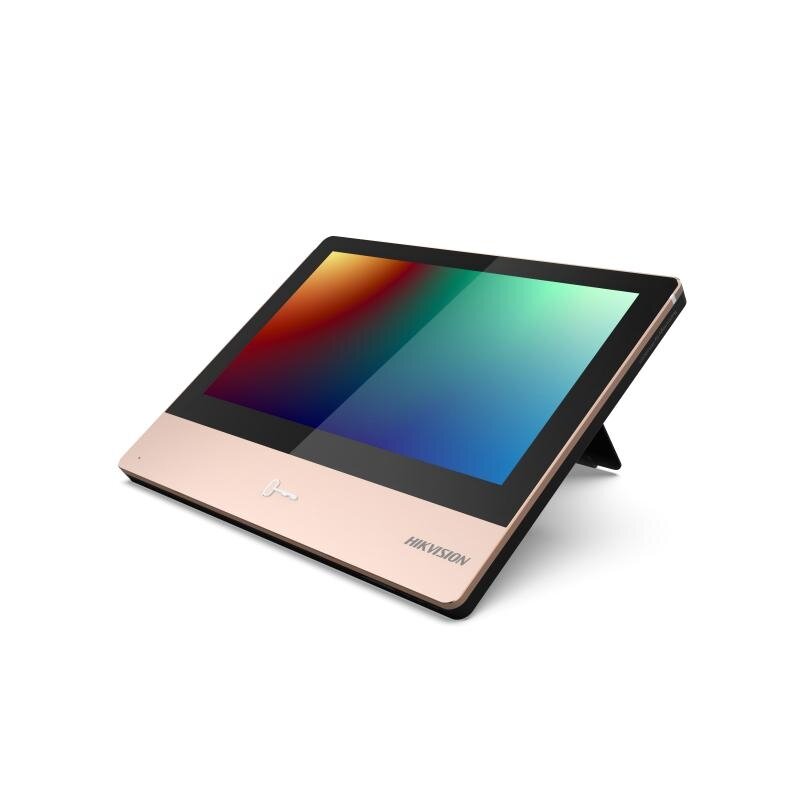

Gate, road barrier control tablet DS-K7R83X
Gate, road barrier control tablet DS-K7R83X
ManufacturerHikvision-
- System
- Operating systemEmbedded Linux system
- Display
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful IPS LCD
- Resolution1024 × 600
- Network
- Communication protocolTCP/IP
- Wired network10/100 Mbps self-adaptive
- Wi-FiWi-Fi 802.11 b/g/n
- Interface
- Network interfacex 1 RJ-45 10/100 Mbps self-adaptive
- Hardware
- ButtonPhysical button (self-define)
- Function
- Configuration via Web browserSupported
- Video intercomNot supported
- General
- Power
IEEE802.3af, standard PoE
12 VDC/1 A
- Power consumption≤ 7 W
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working humidity10% to 90%
- Dimensions
Without package 180 mm × 140 mm × 22.4 mm (7.09" × 5.51\" × 0.88\")
With package (1 for 1) 251 mm x 211 mm x 141 mm (9.88 × 8.31\" × 5.55\")
With package (1 for 12) 522 mm x 442 mm x 453 mm (20.55 × 17.40\" × 17.83\")"
- InstallationSurface mounting and Desktop placement
- Weight
Without package: 355 g
With package: 1050 g
- ApprovalCE/CE-LVD/CB/RoHS/REACH/WEEE
- Power supply method12 VDC/1 A
- LanguageEnglish, European Spanish, Thai, Japanese, Arabic
- Configuration
- Module selectionNO
