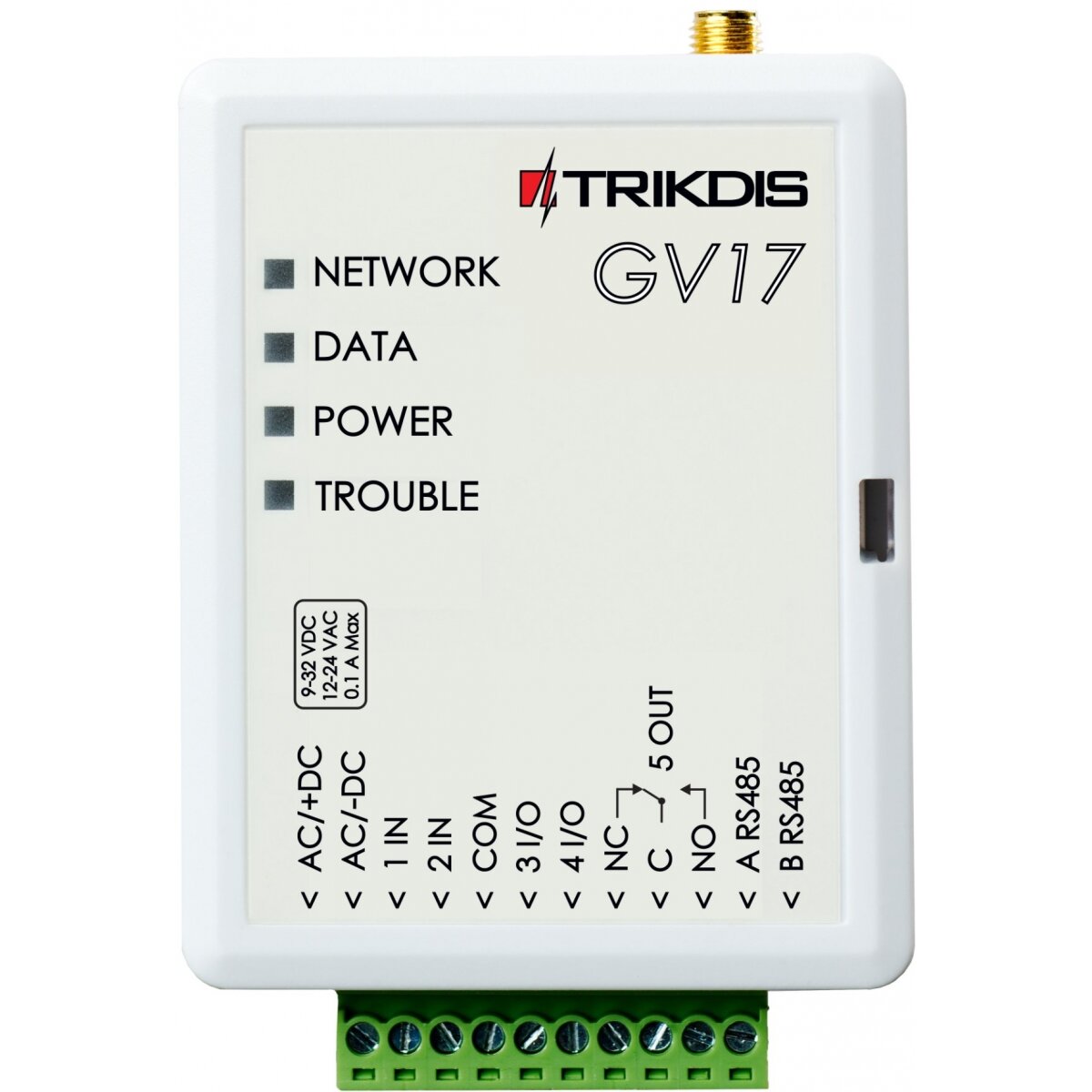

Gate GSM controller GV17 Trikdis

Power supply voltage

9-32 V DC, 12-24 V AC

Current consumption

50 mA (standby)

Up to 200 mA (transmitting)

Relay

1 (1A 30 V DC, 0.5A 125 V AC)

Number of inputs and outputs

2 inputs

2 double purpose contacts for setting to either input or output (50mA) mode

Input type

NC, NO or EOL=10kΩ (settable)

Buffer for unsent events

Up to 60 events

Event log memory

Up to 5000 events

Users, who can control

Up to 997 users

Users, who can receive events by SMS

Up to 7 users

2G GSM modem frequencies

850 / 900 / 1800 / 1900 MHz

3G UMTS modem frequencies

800 / 850 / 900 / 1900 / 2100 MHz

Operating environment

Temperature from -20 °C to 50 °C, relative humidity up to 80% at +20 °C

Dimensions

65 x 77 x 25 mm
