  •   Flexible LED module Hikvision DS-D41Q25CA-1GS/DH

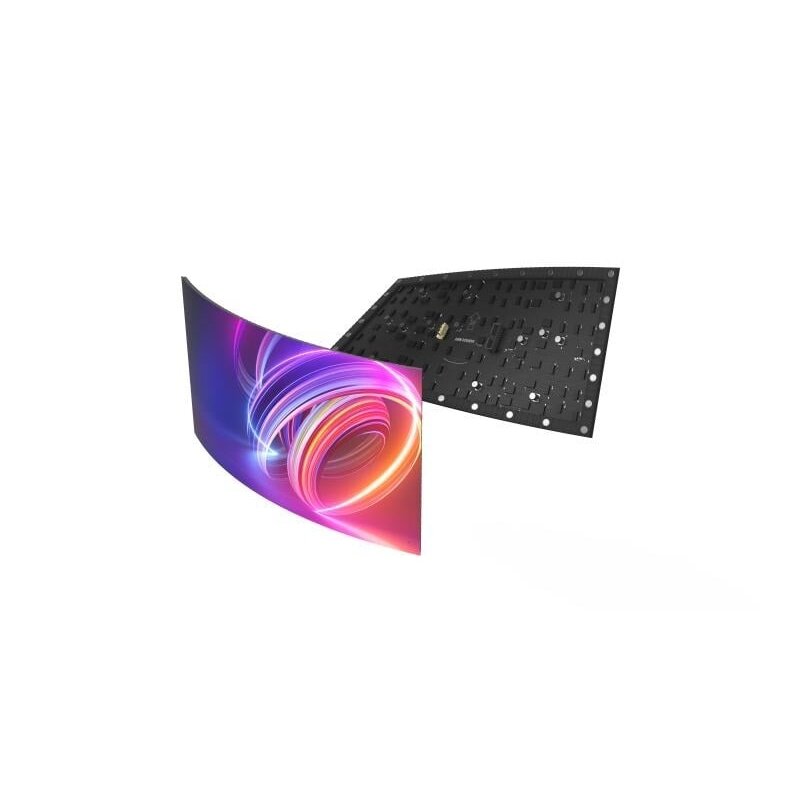

    Flexible LED module Hikvision DS-D41Q25CA-1GS/DH

    Inquire about this item
    Price 49.95 €
    Want another price? Suggest yours!
    In stock: 0 pcs
    Manufacturer
    Hikvision
    • Display
    • Brightness Uniformity≥ 97%
    • Color Temperature3000 K to 10000 K adjustable
    • Color Uniformity≤ ± 0.003Cx，Cy
    • Contrast Ratio3000:1
    • Optimal View Distance3.2 m to 8.4 m
    • Refresh Rate3840 Hz
    • Viewing Angle160°(H)/160°(V)
    • White Balance Brightness600cd/㎡
    • Display Parameters
    • Blind Spot Rate< 0.0003, 0 by default
    • General
    • Gross Weight0.25 kg (0.55 lb)
    • Net Weight0.19 kg (0.42 lb)
    • Package Dimensions (W × H × D)634 (W) mm × 410 (H) mm × 380 (D) mm (24.96 '' × 16.14 '' × 14.96 '')
    • Packing ListLamp beads, Driver IC, signal cables, 5 V power cables
    • Packing Method48 modules in 1 package
    • Interface
    • Power InterfaceVH4PIN
    • Module
    • Component MaterialSilicon soft panel
    • CurvatureOut Arc & Inner Arc ≥ 157°
    • Dimensions (W × H × D)320 mm × 160 mm × 13 mm (12.60" × 6.30" × 0.51") (connectors contained)
    • Lamp Bead Dimensions1515
    • Maintenance MethodFront and Rear Maintenance
    • Module Flatness≤ 0.3 mm
    • Pixel ConfigurationSMD Triad LED
    • Pixel Density160000 dot/m²
    • Pixel Pitch2.5
    • Pixel Pitch CategoryP2.5
    • Resolution128×64
    • Signal Source InterfaceHUB75E
    • Waterproof LevelIP30
    • Weight0.19 kg
    • Power
    • Average Consumption150W/m²
    • Input VoltageAC 100 V to 240 V~
    • Max. Consumption450W/m²
    • Modular Max. Consumption23 W
    • Modular Max. Current5 A
    • Working VoltageDC 4.5 V to 5 V
    • Processing Performance
    • Driving MethodConstant current driving
    • Frame Frequency60 Hz
    • Grey LevelUp to 16 bit
    • Scanning Amount32S
    • Product Model
    • Product ModelDS-D41Q25CA-1GS
    • Structure
    • Min. Diameter815 mm
    • Working Environment
    • Storage Humidity10% to 85% RH (without condensation)
    • Storage Temperature-20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
    • Working Humidity10% to 80% RH (without condensation)
    • Working Temperature-10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
