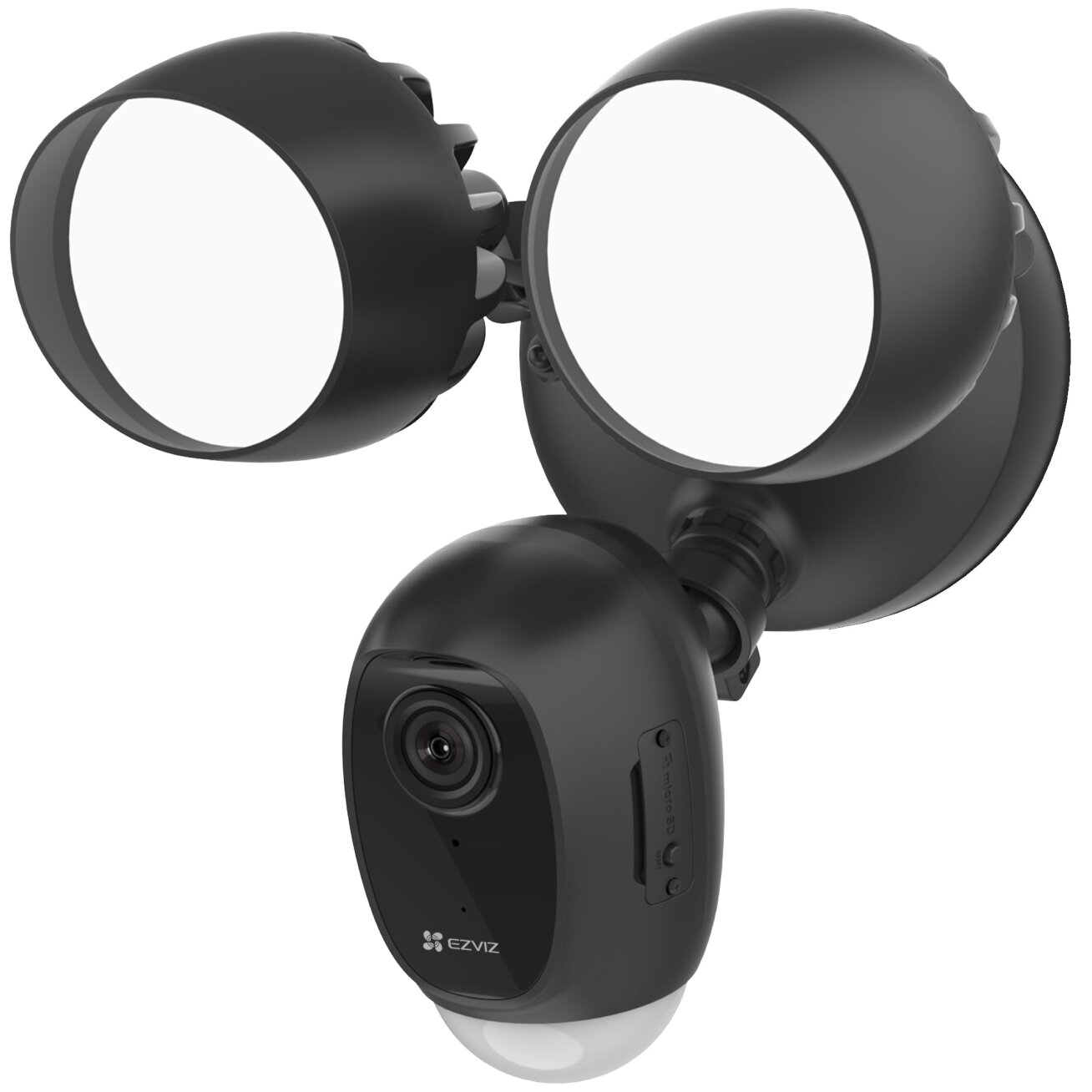

  • EZVIZ FloodLight camera CS-LC1C-A0-1F2WPFRL 2.8mm (BLACK)

  • System Parameters
    ProcessorHigh-Performance Embedded SOC Processor
    Operation SystemEmbedded Linux
    Light Parameters
    Lamp2
    LEDSMD LED
    Brightness2000LM (+/-10%)
    CRI80
    Color Temperature3000k
    Life-span@B50L70 @Ta 25°C 25000H
    PIR Sensor Detection
    Detection Distance10 meters (33 feet)
    Detection Range270 degrees
    Camera Parameters
    Resolution 1920 × 1080
    Field of viewHorizontal angle: 103°; Vertical angle: 57°; Diagonal angle: 121°
    Night VisionUp to 25m/82 ft
    Video Parameters
    Compression StandardSmart H.264, H.265
    Max. Resolution1920 x 1080, FHD
    Frame Rate25fps, Adaptive frame rate of network transmission
    DNR3D DNR
    BLCSupports
    WDRSupports
    Audio Parameters
    Audio InputBuilt-in omni-direction microphone
    Audio OutputBuil-in loudspeaker
    Audio QualityNoise Suppression
    Network Parameters
    Wireless802.11 b/g/n @ 2.4GHz only (2T2R, Dual antenna)
    Netowork ConfigurationSoft AP Configuration
    Storage Parameters
    Local StorageSupport Micro SD Card (up to 256GB)
    Cloud StorageEZVIZ Cloud Storage (currently available only in some countries)
    General
    Operating Conditions -30°C to 50°C (-20°F to 120°F)
    Operational humidity 0 - 95%
    Power SupplyHardwired (100v - 240v)
    Power Consumption≤35W
    Ingress Protection IP65 for camera
    Product Dimensions268 x 186 x 185 mm (10.55 x 7.32 x 7.28 inch)
    Package Dimensions235 x 250 x 235 mm (9.25 x 9.84 x 9.25 inch)
    Weight1469 g (3.24 lbs)
