  •   EZVIZ CS-H80x outdoor PTZ camera

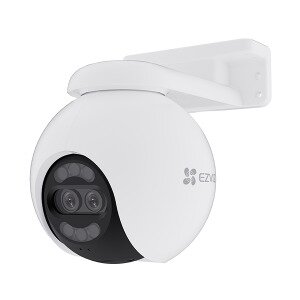

    EZVIZ CS-H80x outdoor PTZ camera

    Inquire about this item
    Price 144.14 €
    Want another price? Suggest yours!
    In stock.

    In stock: 20 pcs
    Manufacturer
    EZVIZ

  •

    • General
    • ModelCS-H80x-R100-8G82WKFL
    • Image Sensor1/2.7” + 1/2.9” Progressive Scan CMOS
    • Shutter SpeedSelf-adaptive shutter
    • Lens4mm @ F1.0, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (1080p), 4mm @ F1.6, viewing angle: 46° (Vertical), 87° (Horizontal), 103° (Diagonal) (4K)
    • PT AnglePan: 340°, Tilt: 70°
    • Minimum Illumination0.01 Lux @ (F1.0, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)
    • Lens MountM12
    • Day / Night SwitchIR-cut filter with auto switch
    • DNR3D DNR
    • WDRDigital WDR
    • BLCSupports
    • Black & White Night30m / 98ft
    • Max Resolution3840 × 2160
    • Frame RateSelf-Adaptive during network transmission
    • Video CompressionH.265 / H.264
    • H.265 TypeMain Profile
    • Video Bit RateUltra HD, Quad HD, Full HD, HD, Adaptive bit rate
    • Audio Bit RateSelf-Adaptive
    • Wi-Fi StandardIEEE802.11b, 802.11g, 802.11n
    • Frequency Range2.4 GHz ~ 2.4835 GHz
    • Channel BandwidthSupports 20MHz
    • Security64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK
    • Transmission Rate11b: 11 Mbps, 11g: 54 Mbps, 11n: 150 Mbps
    • Wi-Fi PairingAP pairing
    • ProtocolEZVIZ Cloud Proprietary Protocol
    • Wired NetworkRJ45 × 1 (10M / 100M Adaptive Ethernet Port)
    • Smart AlarmAI-powered human shape detection, AI-powered vehicle shape detection
    • Customized Alert AreaSupports
    • Two-way TalkSupports
    • Auto TrackingSupports
    • General FunctionAnti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark
    • Local StorageSupports microSD Card (Up to 512 GB)
    • Cloud StorageSupports EZVIZ CloudPlay storage (Subscription required)
    • Operating Conditions30ºC ~ 50ºC, Humidity 95% or less (non-condensing)
    • IP GradeIP65
    • Power SupplyDC 12V/1A
    • Power ConsumptionMAX. 12W
    • Dimensions170 × 112 × 154 mm (6.69 × 4.41 × 6.06 inch)
    • Packaging Dimensions205 × 176 × 194 mm (8.07 × 6.93 × 7.64 inch)
    • WeightProduct: 630 g (22.22 oz), Weight with package: 1035 g (36.5 oz)
